| Technical data |
| Permissible total weight: |
10500 |
[kg] |
| Load capacity: |
7000 |
[kg] |
| Empty weight: |
3500 |
[kg] |
| Loading space: |
17,5 |
[m 2] |
| Volume: |

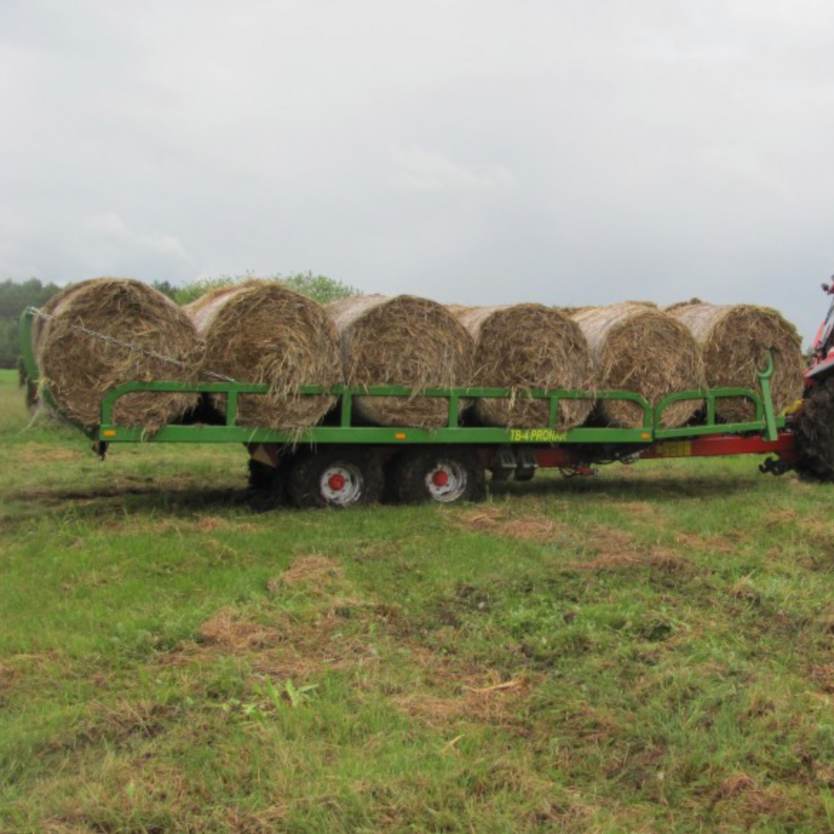

12 bales of dimensions 1200×1200 |
[mm] |
| Loading platform length: |
6910 |
[mm] |
| Loading platform width: |
2550 |
[mm] |
| Dimensions: length/width/height: |
8940/2720/1980 |
[mm] |
| Loading platform height: |
1060 |
[mm] |
| Platform thickness: |
4 |
[mm] |
| Platform height, measured from the ground: |
930 |
[mm] |
| Wheel track: |
2000 |
[mm] |
| Suspension: |
parabolic springs |
| Hitch-ring load: |
1350 |
[kg] |
| Tyres: |
400/60-15,5 |
| Maximum speed: |
30 |
[km/h] |
| Tractor power requirement: |
100/73 |
[KM/kW] |
|
|
|
|
|
| Standard equipment |
|
| Loading platform: hydraulically lifted |
| Unloading made by tipping the loading platform to the back |
| Tipping frame: rectangular made of closed profiles |
| Tandem suspenssion on 4 parabolic springs with 1030 mm axle track with fixed axles with drum brakes |
| Drawbar: fixed lower universal transportation hitch |
| Drawbar: rotary with ∅50 mm towing eye |
| Drawbar: fixed with hydraulic steering |
| Hydraulic self loading system at the front |
| Side rants |
| Hydraulically operated rear unloading device |
| Hydraulic distributor steering from the operator’s cabin |
| Braking system: single or double line air or hydraulic |
| Double-component chemically hardened painting materials |
| Crank hand brake |
| 12V lightning system |
| Wheel chocks and racks |
| Frame painting colour: red RAL3000 PRONAR |
| Platform painting colour: green RAL6010 PRONAR |
