Technical data |
Permissible total weight: |
15100 |
[kg] |
Load capacity: |
from 9540 to 10140* |
[kg] |
Empty weight: |
from 4960 to 5560* |
[kg] |
Load volume: |
9 |
[m 3] |
Loading space: |
8.5 |
[m 2] |
Internal length of loading space: |
4400 |
[mm] |
Internal width of loading space: |
1930 |
[mm] |
Dimensions: length/width/height: |
7455/2440/3285** |
[mm] |
Sidewall height: |
1040*** |
[mm] |
Floor/wall thickness: |
3/3 |
[mm] |
Platform height, measured from the ground: |
1315 |
[mm] |
Wheel track: |
1820 |
[mm] |
Suspension: |
tandem – parabolic springs |
Hitch-ring load: |
2100 |
[kg] |
Tyres: |
500/50-17 |
Construction speed: |
25 |
[km/h] |
PTO speed: |
1000 |
[rpm] |
Minimum tractor power requirement / adaptor type: |
105/77.2 with AV40 |
[hp/kW] |
115/84.6 with AV20 |
[hp/kW] |
Adapter type / max spreading width: |
AV40 / 6 |
[ – /m] |
AV20 / 12 |
[ – /m] |
|
* Parameters depend on the equipment specification |
** Height with front mesh |
*** Height with a protective wooden batten |
|
Standard equipment |
|
Monocoque loading case |
Suspension: tandem on parabolic springs with fixed axles. |

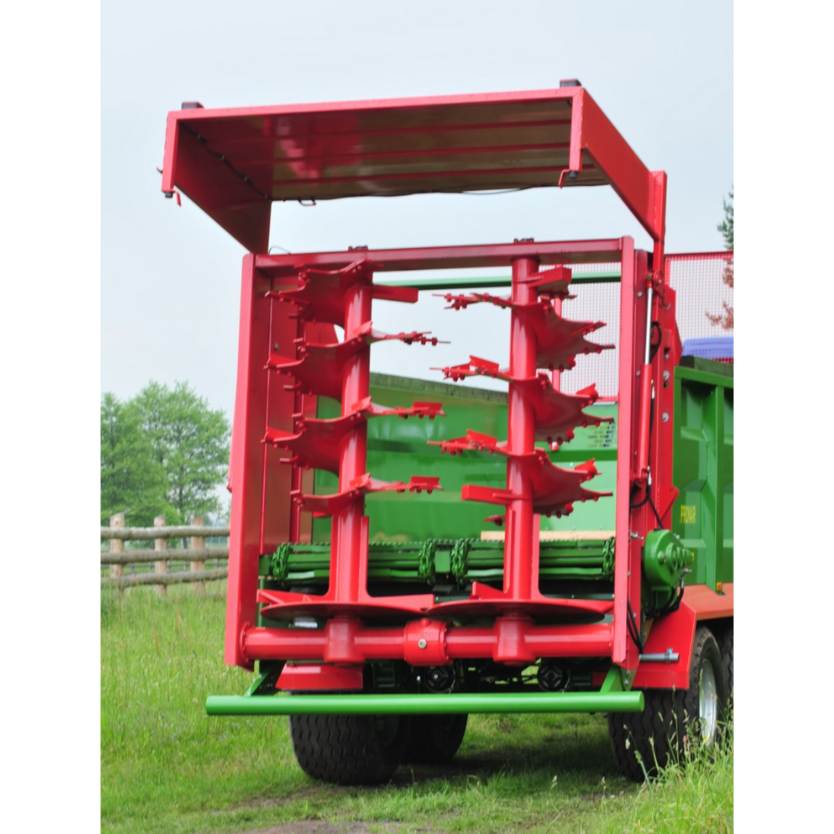

AV40 adapter with 4 vertical beaters |

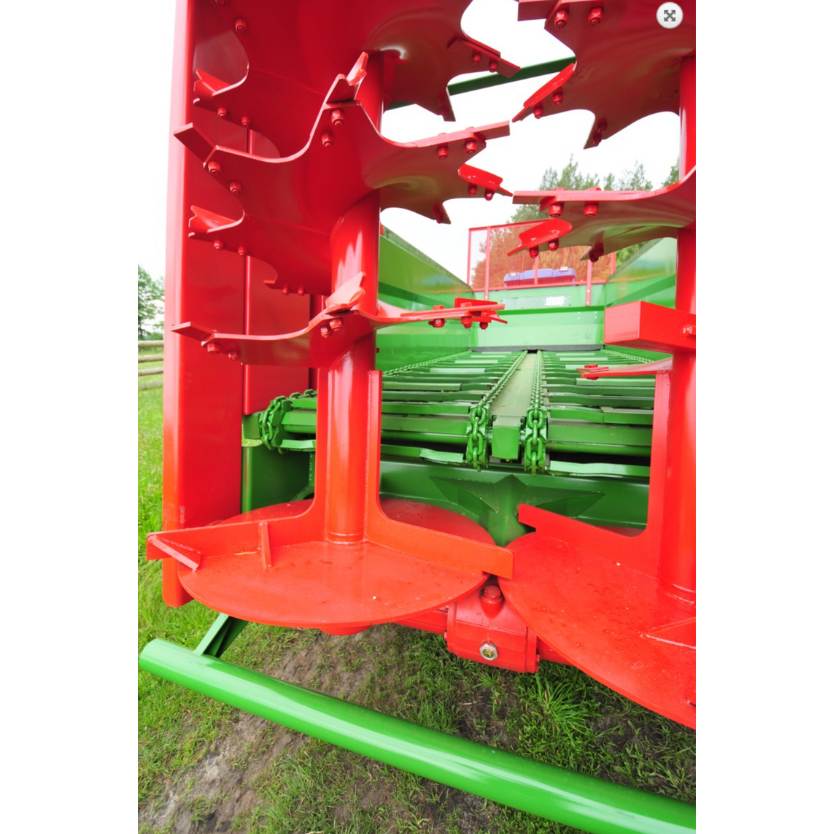

Chain conveyor with four 14mm chains of high quality steel, with hydraulic drive and stepless speed regulation |
Drawbar type: universal fixed to couple with lower or upper hitch of the tractor |
Drawbar towing hitch: rotary with towing eye ø50mm |
Drawbar support: telescopic mechanical straight leg |
Hydraulic guillotine slurry gate |
Control from tractor hydraulic distributor |
Braking system: double line air |
Single line greasing system of the adapter’s bearing |
Crank hand brake |
Lighting system 12V |
Mudguards |
Wheel chocks + racks (2 pcs.) |
Front protective mesh |
Folded ladder and access steps to loading case |
Chemically hardened two-component painting materials , UV-resistant. |
Sidewalls, drawbar, axles and conveyor mechanizm colour: green RAL6010 PRONAR |
Adapter, mudguards and front mesh colour: red RAL3000 PRONAR |
