Opis
Permissible total weight: | 19000 | [kg] |
Load capacity: | 14700 | [kg] |
Empty weight: | 4300 | [kg] |
Loading space of the straight part of platform (+ widening): | 14.0 (+ 2.7) | [m 2] |
Loading space of the complete platform (+ widening): | 17.9 (+ 3.4) | [m 2] |
Length of the straight part of the platform: | 5500 | [mm] |
Length of the complete platform: | 7020* | [mm] |
Length of ramps: | 1900 | [mm] |
Width of floor (with widening): | 2540 (3040**) | [mm] |
Overall dimensions (length/width/height): | 9160/2550/2500* | [mm] |
Material of the floor: | wooden planks 45 mm | [mm] |
Platform height, measured from the ground: | 935 | [mm] |
Number of axles: | 2 | [pcs] |
Axle load: | 8000 | [kg] |
Drawbar towing hitch load: | 3000 | [kg] |
Suspension: | parabolic springs | |
Tyres: | double 215/75 R 17.5 | |
Maximum speed: | 40 | [km/h] |
Load holders: | 11 | [pcs] |
Tractor power requirement: | 104/76.4 | KM/kW |
* with folded ramps | ||
** with additional equipment |
Standard equipment
Loading platform with wooden floor – front horizontal part
Loading platform with steel anti-skidding floor – rear inclined part
Fastenings handles in the floor, 11 pieces
Mechanically lowered ramps with protection against accidental opening
Tipping support legs mounted at rear of the trailer
Tandem suspenssion with 4 parabolic springs with fixed axles equipped in drum brakes
Drawbar type: fixed to couple with lower hitch of the tractor amortized with steel springs

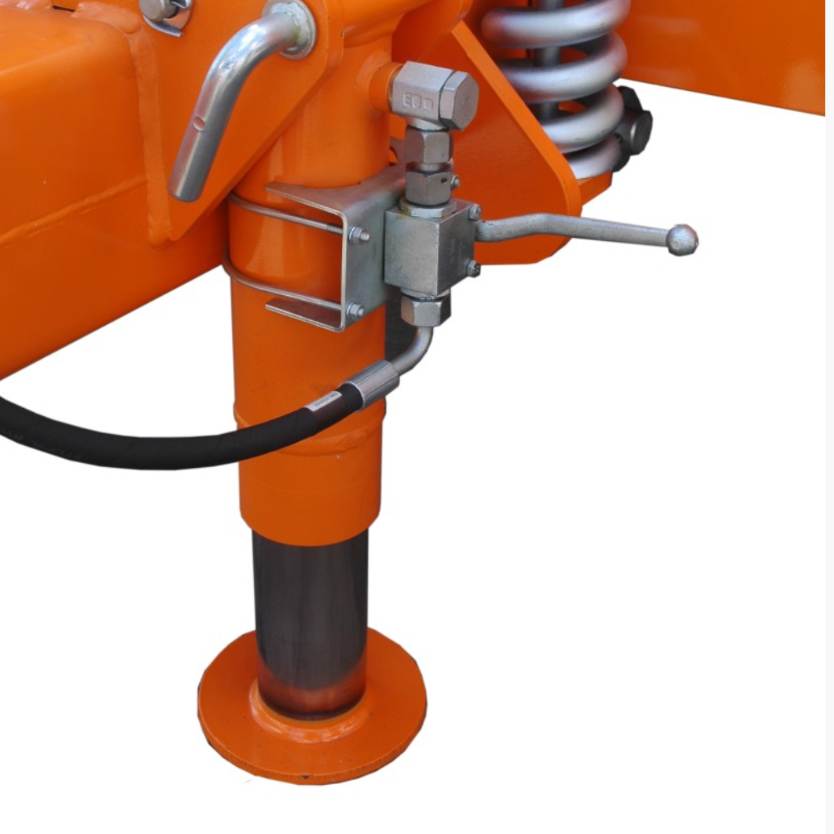

Drawbar support: hydraulic straight, folded leg
Drawbar hitch: ball type K80
Braking system: double line pneumatic with automatic (ALB) braking power controller
Crank hand brake
Lighting system 12 V with airtight connection, with front and rear LED clearence lights
Rear lamps with protective grating
Side underrun protection
Wheel chocks + racks (2 pcs)
Steel case under the floor for storing broadenings
Warning triangle
Double-component chemically hardened painting materials, UV-resistant.
Paintwork: orange RAL 2008
