Opis
Allowable total weight (technically): | 15000 | [kg] |
Permissible total weight: | 15000 | [kg] |
Load capacity: | 12130 * | [kg] |
Empty weight: | 2870 | [kg] |
Lenght without a container: | 5940 | [mm] |
Lenght with the shortest/longest container: | 6415/6782 | [mm] |
Width without a container: | 2360 | [mm] |
Width with a container (min/max): | 2360/2550 | [mm] |
Attachement dimensions of the container: | ||
Hook height: (min/max): | 1450/1570 | [mm] |
Rolls track: | 1070 | [mm] |
Permissible dimensions of the container: | ||
Lenght: (min/max): | 4100 – 5050 | [mm] |
Width: | max 2550 | [mm] |
Height: | max 2000 | [mm] |
Height of the trailer without container: | 2512 | [mm] |
Height of the guide rollers from the ground | 900 | [mm] |
Container maximum tipping angle/oil requirement/oil pressure | 46/15/200 | [˚/l/bar] |
Wheel track: | 1830 | [mm] |
Suspension: | tandem with trailing arm | |
Hitch-ring load: | 2000 | [kg] |
Tyres: | 500/50-17 | |
Construction speed: | 40 | [km/h] |
Tractor power requirement: | 78/57.3 | [hp/kW] |
* with the weight of the container with recommended lengh, it might be neccesary to move the container backwards while preparing for tipping |
Standard equipment
· Tipping frame: rectangular made of closed profiles
· Tipping frame: rectangular made of closed profiles

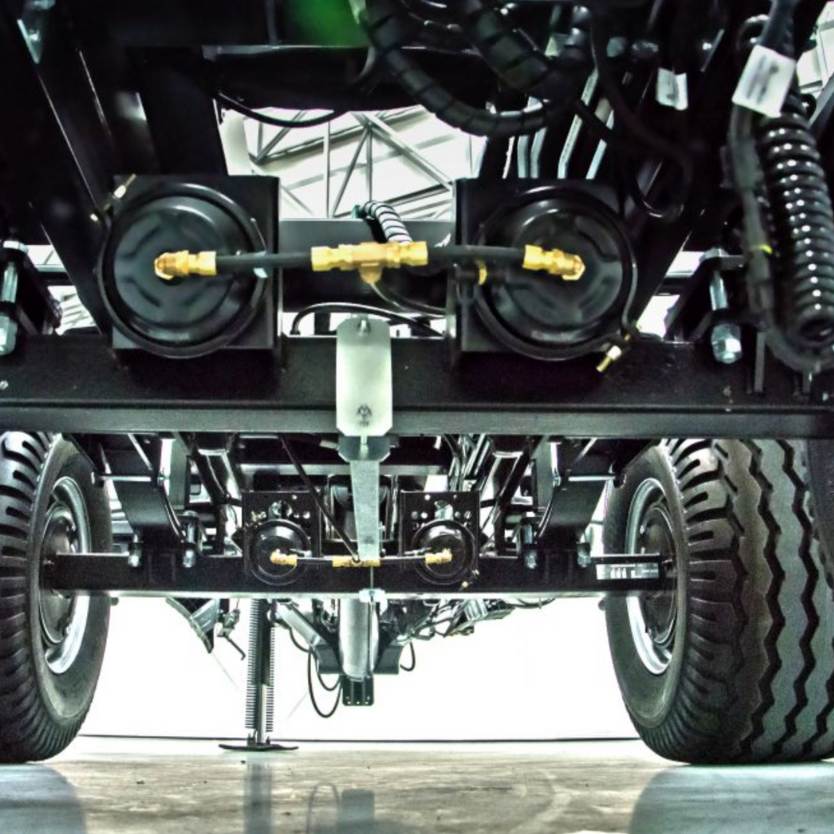

· Tandem suspension with 4 parabolic springs, axle base 1325mm, with fixedaxles), drum brakes 300x135mm
· Drawbar: rigid to couple with lower hitch of the tractor (transport hitch, piton fix)
· Drawbar towing hitch: rotary towing eye Ø50 (hitch, piton fix)
· Drawbar support: hydraulic straight leg with cut-off valve (it needs permanent or occasional connection with the tractor by single hydraulic line)
· Braking system: double line air with manual braking power control
· Crank hand brake
· Trailer hook regulated hight in 2 positions (1450mm/1570mm) with automatic container lock
· Hydraulic reloading system with manual switch winch / tipper
· Hydraulic blocking system of the suspension (rear axle)
· Hydraulic instalation of the hook frame – tilt cylinder
· Trailer requires a tractor with three pairs of hydraulic outputs (control of suspension lock, pivoting frame and hook frame)
· Lighting system 12 V (LED) with airtight connection, with side clearence
· Rear lamps with protective grating
· Wheel chocks + racks
· Steel mudguards over the wheels
· Rear bumper (homologated) with manual setting in 2 positions (depends on length of the container)
· Chemically hardened two-component painting materials , UV-resistant.
· Tipping frame colour BLACK RAL 9005 PRONAR
