Opis
| Allowable total weight (technically): | 23000 | [kg] |
| Permissible total weight: | 23000 | [kg] |
| Load capacity: | 17100 | [kg] |
| Empty weight: | 5900 | [kg] |
| Lenght without a container: | 7870 | [mm] |
| Lenght with the shortest/longest container: | 7870/8940 | [mm] |
| Width without a container: | 2550 | [mm] |
| Width with a container: | 2550 | [mm] |
| Attachement dimensions of the container: | ||
| Hook height (min/max): | 1450/1570 | [mm] |
| Rolls track: | 1070 | [mm] |
| Permissible dimensions of the container: | ||
| Lenght (min/max): | 5400/6900 | [mm] |
| Internal lenght (min/max): | 5000/6500 | [mm] |
| Width: | max 2550 | [mm] |
| Internal height: | max 2000 | [mm] |
| Ground clearance under the floor: | min. 150 | [mm] |
| Height of the trailer without container: | 2990 | [mm] |
| Height of the guide rollers from the ground: | 1230 | [mm] |

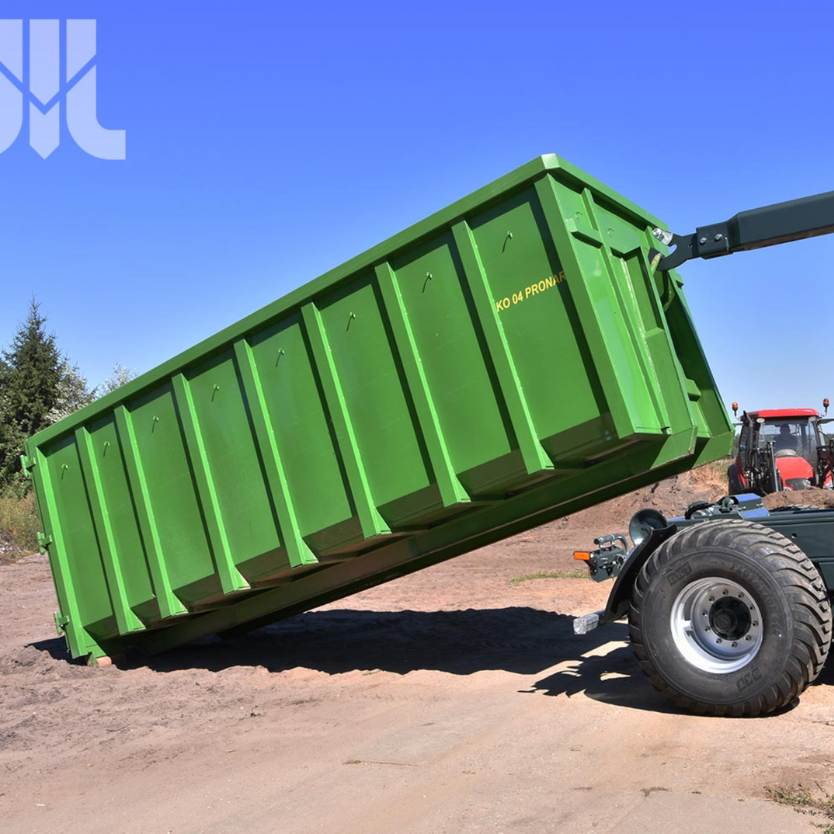

| Container maximum tipping angle/oil requirement/oil pressure: | 50/25/200 | [˚/l/bar] |
| Wheel track: | 2000 | [mm] |
| Suspension: | parabolic springs | |
| Hitch-ring load: | 3000 | [kg] |
| Tyres: | 445/65 R22.5 | |
| Construction speed: | 40 | [km/h] |
| Tractor power requirement: | 125/92 | [KM/kW] |
Chassis frame: rectangular made of closed profiles
Tandem suspension with 4 parabolic springs, axle base 1810mm, with fixed front axle and passively steered rear axle, drum brakes 406x140mm, with hydraulic turning angle lock (it needs permanent connection with the tractor by one pair of hydraulic outputs)
Axles for 60 km/h
Drawbar with hydraulic amortization and fluent height adjustment to couple with hitch, piton fix, transport hitch, ball-type
Drawbar: fixed to couple with lower hitch of the tractor (transport hitch, piton fix)
Drawbar towing hitch: rotary towing eye Ø50 (hitch, piton fix)
Drawbar support: hydraulic straight leg
Hydraulic rear bumper
Lighting system 12 V with side clearence lights, rear electric socket, LED lamps, hermetic conections
Rear lamps with protective grating
Steel mudguards over the wheels
Braking system: double/single line pneumatic or hydraulic
Central hydraulic system with electro-hydraulic safety system electrically controlled (system needs permanent connection with the tractor by one pair of hydraulic outputs). Functions – suspension blockage, hydraulic container lock, hydraulic tipping (2 cylinders), automatic switching hook/tipper with light signal, telescopic hook arm hydraulically controlled, rear bumper hydraulically controlled, control of the one pair of hydraulic outputs at the back of the trailer (f.e. to connect hydraulic backwall of the container or hydraulic tipping system of the second trailer), software with safeguard which do not allow to start incorrect function

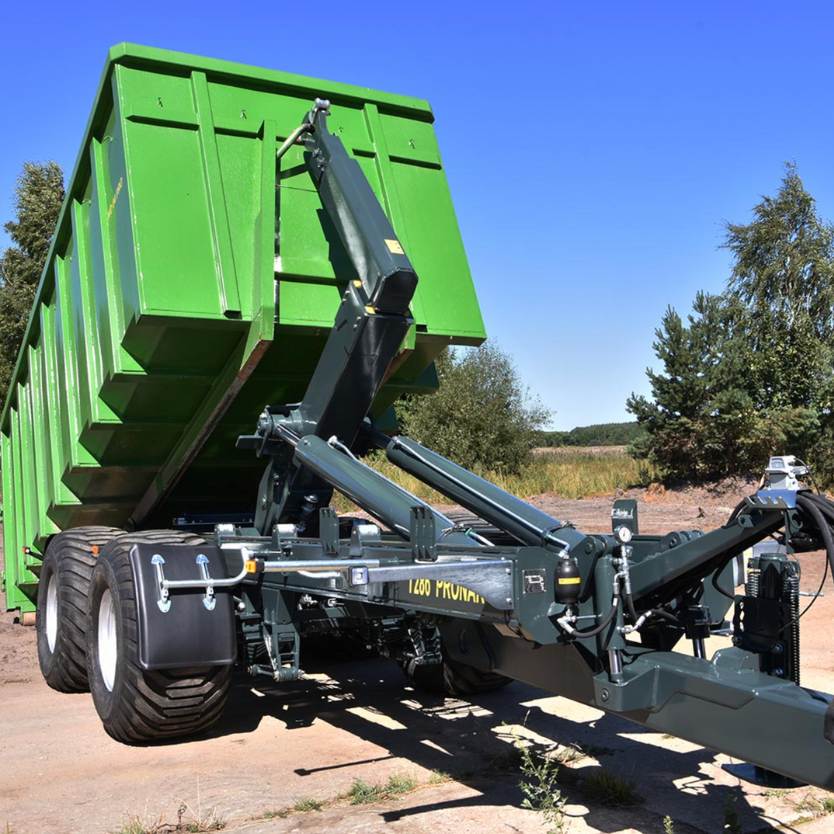

Trailer hook with automatic container lock and regulated height in 2 positions (adaptation for containers acc. to DIN 30722-1 and acc.to SS 3021)
Wheel chocks + racks
Crank hand brake
Chemically hardened two-component painting materials , UV-resistant
Tipping frame colour red RAL3000 PRONAR
