Opis
| Allowable total weight (technically): | 34000 | [kg] |
| Permissible total weight: | 33000 | [kg] |
| Load capacity (including wight of container): | 25000 | [kg] |
| Empty weight: | 8000 | [kg] |
| Lenght without a container: | 8590 | [mm] |
| Width without a container: | 2550 | [mm] |
| Width with a container: | 2550 | [mm] |
| Attachement dimensions of the container: | ||
| Hook height (min/max): | 1450/1570 | [mm] |
| Rolls track: | 1060 | [mm] |
| Permissible dimensions of the container: | ||
| Internal lenght (min/max): | 5000/7500 | [mm] |
| External width: | max. 2550 | [mm] |
| Internal height: | max. 2500 | [mm] |
| Height of the trailer without container: | 3030 | [mm] |
| Container maximum tipping angle: | 52 | [˚] |
| Wheel track: | 2100 | [mm] |
| Suspension: | tridem with parabolic springs and axle base 1810 mm | |
| Hitch-ring load: | 3000 | [kg] |
| Tyres: | 445/65 R22.5 | |
| Construction speed: | 40 | [km/h] |
| Tractor power requirement: | 182/133,8 | [HP/kW] |
Standard equipment
Chassis frame: rectangular made of closed profiles
Drawbar with hydraulic shock absorption cylinder with stepless height adjustment
Drawbar towing hitch: rigid K80mm to couple with ball type hitch of the tractor
Drawbar support: telescopic supporting leg with two-step gear
Tridem suspension with 1810 mm axle base with fixed middle axle and active steering of front and rear axles, drum brakes 400×140.
Braking system: double line pneumatic with automatic regulation of braking force (ALB) or hydraulic

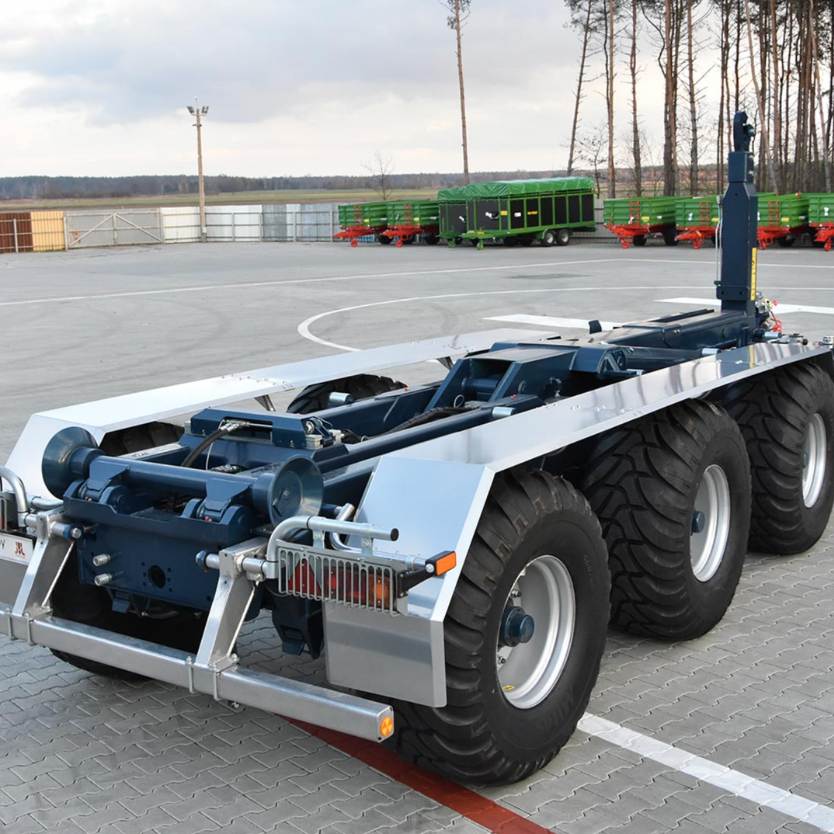

Rear bumper with hydraulic control
Lighting system LED with clearence lights
Plastic or steel mudguards
“Central hydraulic system with own hydraulic tank, hydraulic pump driven by PTO shaft, with electro-hydraulic security system powered by wires.
It controls functions:

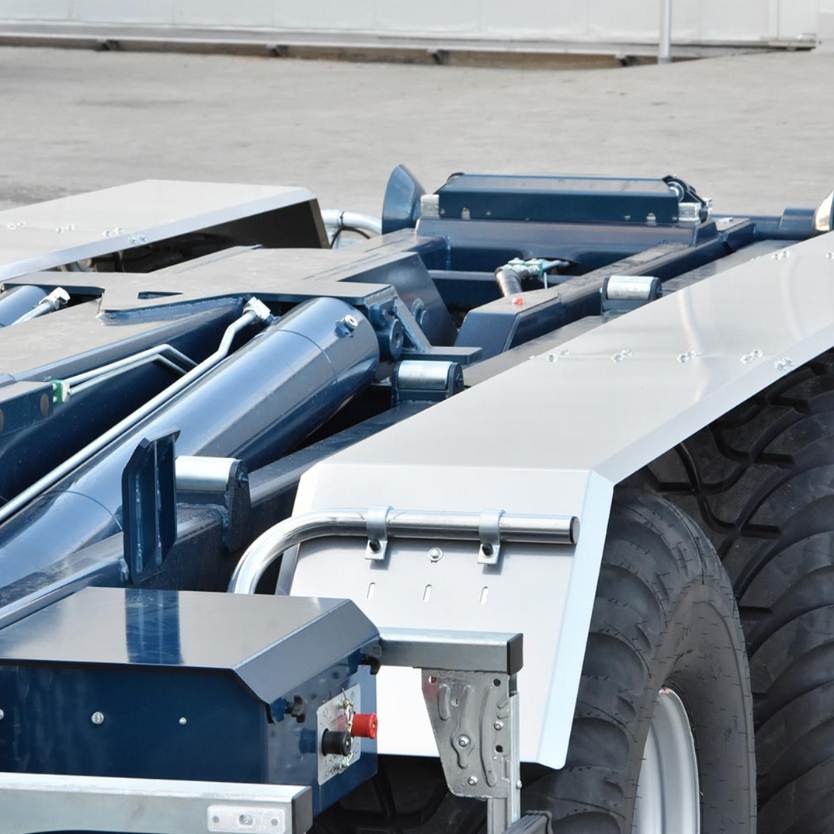

– hydraulic tipping with 2 cylinders
– hydraulic switch tipper / hook trailer
– hydraulic telescopic hook’s frame
– hydraulic suspension lock
– hydraulic lock of the container
-control of the one pair of hydraulic outputs at the back of the trailer (f.e. to connect hydraulic backwall of the container or hydraulic tipping system of the second traile
– hydraulic rear bumper”
Light indicator on the control panel indicating the on-line features of the central hydraulic system
Trailer hook with automatic container lock and regulated height in 2 positions (adaptation for containers acc. to DIN 30722-1)
Wheel chocks + racks (2 pcs)
Chemically hardened painting materials, UV-resistant
Chassis color red RAL3000 PRONAR
