Opis
| Allowable total weight (technically): | 28000 | [kg] |
| Permissible total weight: | 24000 | [kg] |
| Load capacity: | 13200 | [kg] |
| Empty weight: | 10800 | [kg] |
| Load volume: | 41 | [m 3] |
| Loading space: | 72 | [m 2] |
| Loading case inside lenght: | 7840 | [mm] |
| Loading case inside width of the floor: | 2300 | [mm] |
| Dimensions: length/width/height: | 10600/2900/3980 | [mm] |
| Sidewall height: | 2260 | [mm] |
| Loading case thickness (sides): | 0,75 | [mm] |
| Distance from the ground to the platform: | 1700 | [mm] |
| Pick-up width | 2000 | [mm] |
| Total number of pick-up fingers: | 240 (double 120) | [pcs] |
| Rotor diameter: | 800 | [mm] |
| Number of cutting knives: | 45 | [pcs] |
| Theoretical cutting length: | 34 | [mm] |
| Wheel track: | 2200 | [mm] |
| Axle base: | 1810 | [mm] |
| Suspension: | Hydraulic suspension, tandem | |
| Hitch-ring load: | 4000 | [kg] |
| Tyres: | 700/50-26.5 | |
| Maximum speed: | 40 | [km/h] |
| Tractor power requirement: | 182/133,8 | [hp/kW] |
| PTO of the tractor | 1000 | [rpm] |
| Requirements of tractor’s external hydraulic system: – max. oil pressure – max. oil flow |
200 130 |
[bar] [l/min.] |
Standrad equipment:
Loading box with bolted walls, adapted to mounting additional dosing rollers with drivetrain.
Walls with trapezoidal profiles and ALUCYNK coating
Wooden floor board with metal rails for conveyor chains.

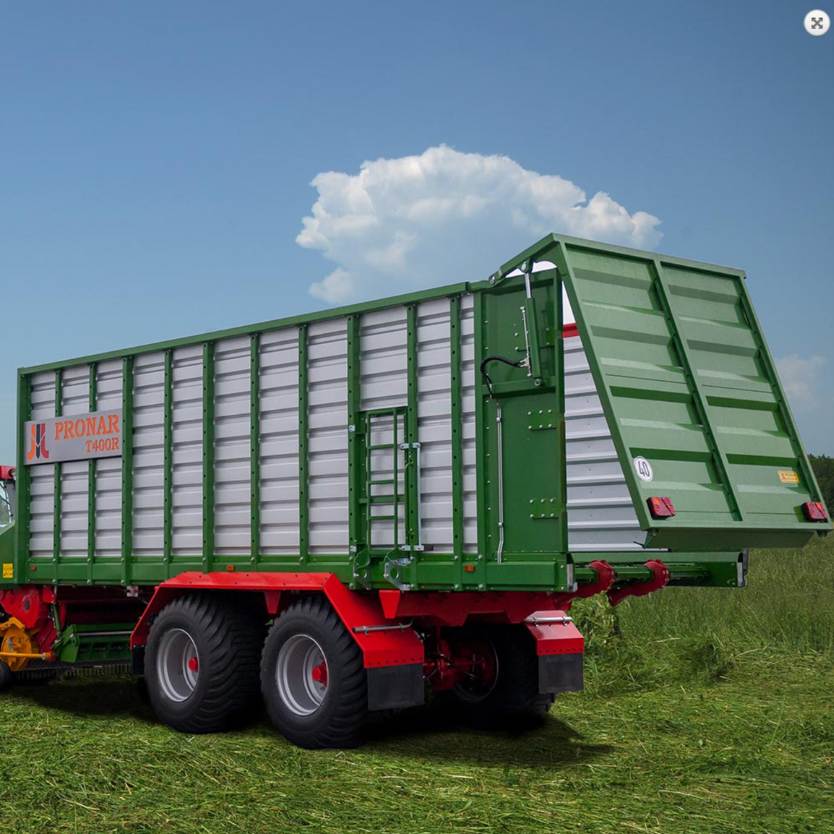

Openwork front wall. Rear wall – hydraulically lifetd.
Central hydraulic system controlled from tractor’s cabin by electric panel
Hydraulically folded openwork front wall
Sidewalls fastening strings
Chassis frame made of rectangular closed profiles.
Tandem suspension with 4 parabolic half-springs with axle base 1810mm, compensatory swingarms, fixed front axle and passively steered rear axle. Drum brakes 406x140mm.
Axles for 60 km/h.
Hydraulically amortized drawbar with fluent height regulation (hitch, piton fix, ball-type K80)
Drawbar towing hitch- rotary with Ø50 towing eye (piton, piton-fix)
Hydraulic tandem suspension with 4 parabolic half-springs, axle base 1810mm, rigid front axle and passively steered rear axle. Suspension is stabilized and regulated hydraulically.
Pick-up with ground following wheel and roller. Rotor made of wear-resistant steel.
Cutting beam equipped with 45 independent knives, each protected by spring.
Drawbar support: telescopic with 2-section gear.
Chain conveyor with 6 chains and 2-stage hydraulic drive.
Braking system: double line pneumatic with manual braking force regulator
12V lighting system with side marker lights, rear lamps with bars protecting against damage.
Wheel chocks and racks
Wide-angle PTO shaft
Metal mudguards
Double-component chemically hardened painting materials
Red RAL3000 PRONAR- frame, drawbar, axles, mudguards, rear beam.
Green RAL6010 PRONAR- loading box
