Technical data | ||
Technically permissible total weight: | 20000 | [kg] |
Permissible total weight: | 20000* | [kg] |
Load capacity: | 15180** | [kg] |
Empty weight: | 4820 | [kg] |
Load volume: | 20,3 | [m 3] |
Loading space: | 12,1 | [m 2] |
Loading case inside lenght: | 5020 | [mm] |
Loading case inside width: | 2420*** | [mm] |
Overall dimensions (lenght/width/height): | 7270/2550/3070 | [mm] |
Sidewall height: | 800+900 | [mm] |
Floor/wall thickness: | 5/2,5 | [mm] |
Platform height, measured from the ground: | 1350 | [mm] |
Wheel track: | 1960 | [mm] |
Suspension: | Parabolic springs | |
Hitch-ring load: | 2000 | [kg] |
Tyres: | 385/65 R22,5 Regenerated | |
Maximum speed: | 40 | [km/h] |
Tipping system : | 3-side | |
Tipping cylinder (stroke / oil demand / pressure): | 1980mm/18L/200bar | |
Tractor power requirement: | 104/76,4 | [hp/kW] |
Tipping angle (backwards/sides): | 47/47 | [˚] |
* depends on the road regulations in each country | ||
** depends on the road regulations and equipment | ||
*** width of the loading case suitable for EUROPALET transport | ||
Standard equipment | ||
Loading case with universal system of sidewalls opening | ||
3-side tipping system of the loading case with ball joints with the rear shock absorbers of optimum spacing | ||
Selection of the direction of tipping by two pins that protects against incorrect handling | ||
Reinforced floor panel with central locking mechanism | ||
width of the loading case suitable for EUROPALET transport | ||
Replaceable rubber seals, placed in floor sockets to ensure the tightness of the trailer (particularly useful for rape transportation) and exchangeable EPDM gaskets glued on other connections with sidewalls, extensions and floor panel | ||
Sidewalls made of profile PF800mm, 60 mm from the rim, with forged hinges and locks | ||
Extensions made of profile PF800mm+900mm, 60 mm from the rim, with forged hinges and locks | ||
Tipping frame welded using closed rectangular profiles made of S355 steel | ||
Tandem suspension on 4 parabolic springs, wheelbase 1360mm, fixed axles equipped with drum brakes 406×120 | ||
Axles 60 km | ||

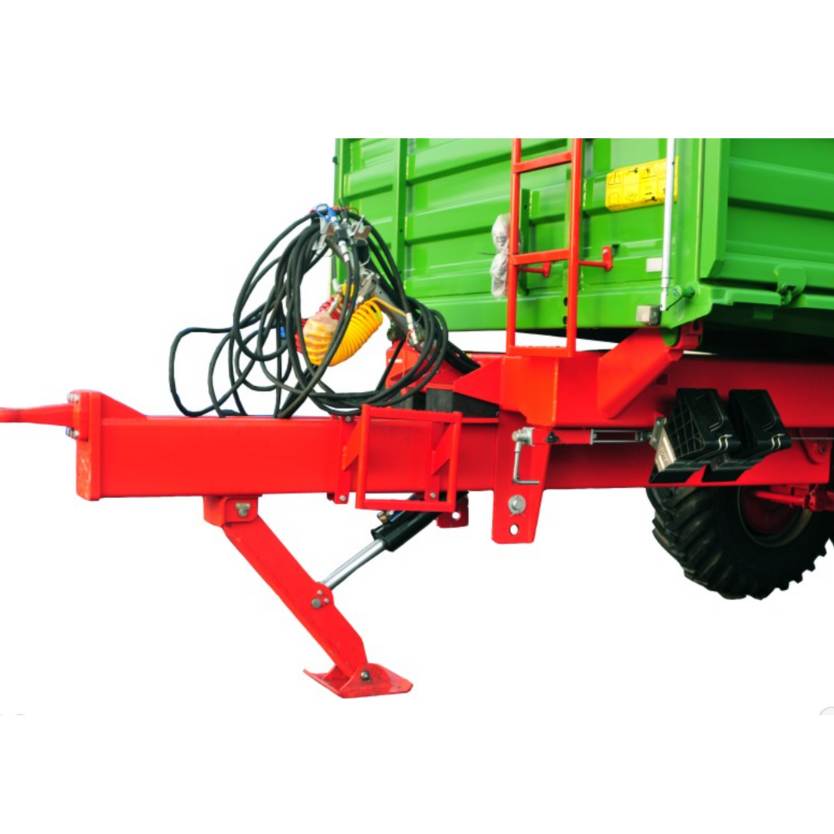

Drawbar support: hydraulic supporting leg (scissor) Drawbar support: hydraulic supporting leg (scissor) |
||
Universal fixed drawbar to connet with the lower or the upper hitch of the tractor | ||
Drawbar towing hitch: with rotary ∅50 towing eye | ||
Braking system: double line air with coupling to a second trailer | ||
Crank hand brake | ||
12 V lighting system with rear electric socket and LED lights | ||
Rear lamps with protective grating | ||
Coiled connecting cable lighting system | ||
Tipping system with cut-off valve | ||
Tipping servo-motor of 3-side tipping system | ||
The side walls shared with central pillar | ||
Walls with the rubber seal | ||
Walls from PF profiles | ||
Closed spaces, walls protected by laser weld | ||
Left wall, 1700mm high, winched hydraulically | ||
Right wall, bottom 800mm-tilt system | ||
Rear wall, bottom 800mm-tilt system | ||
Rear grain hatch with a lever in a rear wall | ||
Wheel chocks + racks (2 pcs) | ||
Double-component chemically hardened painting materials, UV-resistant | ||
Tipping frame colour: red RAL 3000 PRONAR | ||
Side walls painting colour: green RAL 6010 PRONAR | ||
Service support of the case | ||
Rear mudguards | ||
Ladder and steps facilitating the access to the loading case | ||
Side marker lights | ||
Folding beam lighting with grilles protecting the lamp from damage | ||
The rear cover, EC type-approval, folding |
