Additional equipment (optional) |

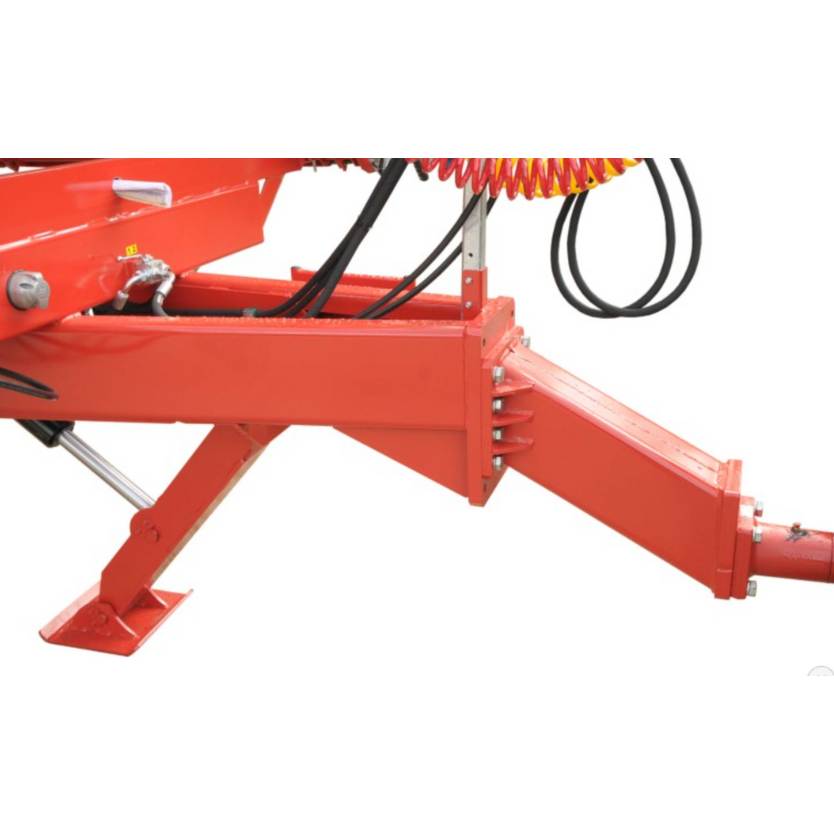

Drawbar hitch: fixed with towing eye 40 mm |
Type of drawbar kitch: ball type K80 mm |
Sidewall extensions made off high-quality, strong, laser-welded profiles PF800mm, made of profiled sheets; with stable rear pillars; with forged locks (only for cable strapping) |

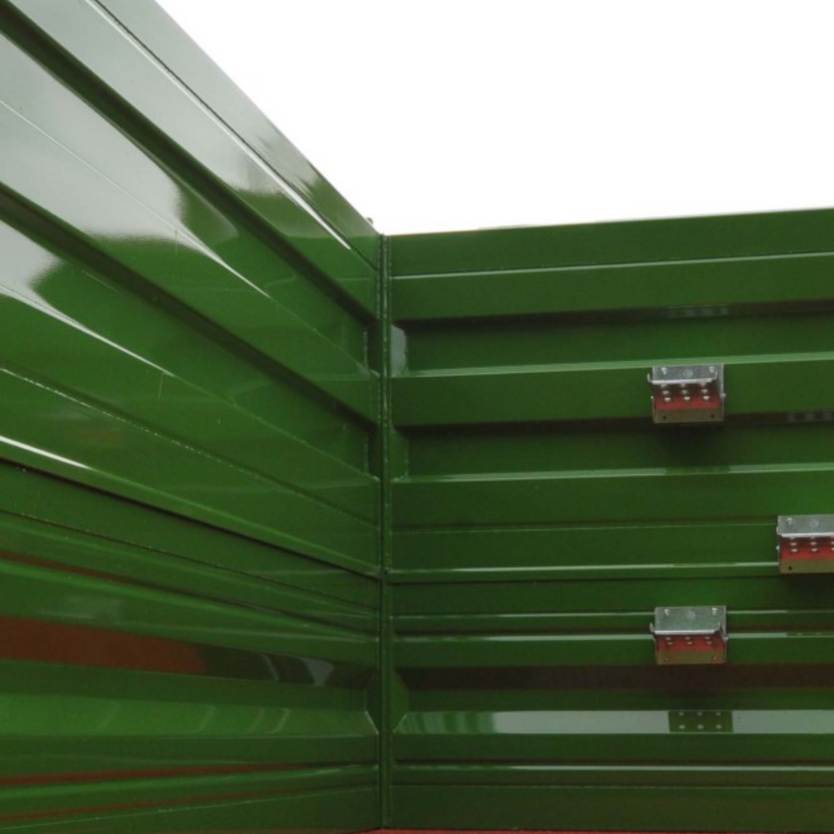

Sidewall extensions made off high-quality, strong, laser-welded profiles PF800mm, made of profiled sheets; with stable rear pillars; with forged locks |
Cable strapping the sidewalls / extensions (not available in standard sidewalls and extensions) |
Additional sidewall extensions PP600mm( 600+800+600) |
Side extension tension bars |
Braking system: hydraulic |
Braking system: hydraulic with with electric safety valve and three-range braking force regulator |
Braking system: double line air with ALB |
Operator’s platform |
Rear grain chute |
Springs facilitating opening the side walls |
Front mudguards |
Side underrun protection |
Rear manual hitch MH 31H-4 |
Rear automatic hitch AH 31H-4 |
Rear automatic hitch AH 38H-4 |
Tyres 385/65 R22,5 |
Tyres 385/55 R22,5 Regenerowane |
Tyres 385/55 R22,5 |
Tyres 500/50-22,5 |
Spare wheel (Separately) 385/65 R22,5 Regenerated |
Spare wheel (Separately) 385/65 R22,5 |
Spare wheel (Separately) 385/55 R22.5 |
Spare wheel (Separately) 385/55 R22.5 Regenerated |
Spare wheel (Separately) 500/50-22,5 |
Warning triangle |
Auger for unloading grain with efficiency 30 t/h** |
Demountable left or right chute along the entire length of the loading case |
Demountable left and right chute along the entire length of the loading case |
Window in the front side wall extension (340×710) with grating and PLEXI |
Window in the front extension and in the front of the middle side wall extension (340×710) with grating and PLEXI |
Two grain chute sprouts with locking at the rear sidewall |
Three grain chute sprouts with locking at the rear sidewall |
Set of wall supports to maintain the walls in a partially open position for bale transportation*** |
Rolled cover with frame with demountable central pipe and lateral supporting pipes |
Shock absorber for falling potatoes – two sets of rubber belts, 1,8 m of length each attached to extensions |
Grain chute over the entire width on the back of the trailer |
Non standard colours according to RAL CALSSIC codes |
|
** mounted on the back wall, two-segment, folding, mechanical winch, hydraulic-powered auger, the demand for oil 30 L / min |
*** for agricultural roads only |
