Technical data* |
|
|
Permissible total weight: |
8900 |
[kg] |
Load capacity: |
6000 |
[kg] |
Empty weight: |
2900 |
[kg] |
Load volume: |
10.1 |
[m 3] |
Loading space: |
10.1 |
[m 2] |
Loading case inside lenght: |
4190 |
[mm] |
Loading case inside width |
2420** |
[mm] |
Dimensions: length/width/height: |
6390/2550/2200 |
[mm] |
Sidewall height: |
500+500 (option) |
[mm] |
Floor/wall thickness: |
4/2 |
[mm] |
Platform height, measured from the ground: |
1160 |
[mm] |
Wheel track: |
1900 |
[mm] |

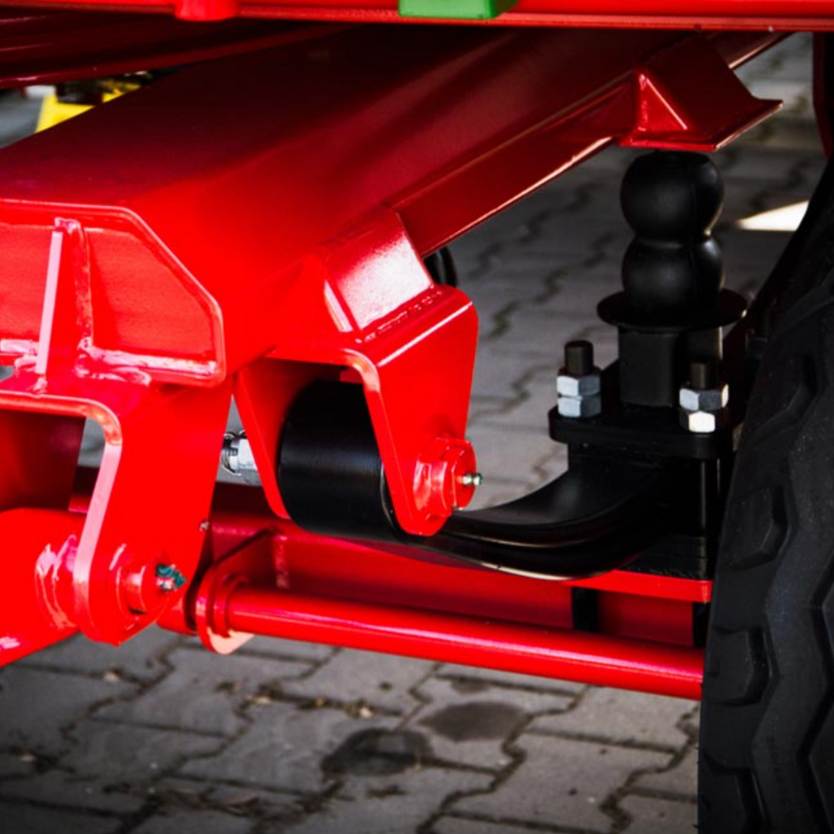

Suspension: |
parabolic springs |
|
Tyres: |
14.0/65-16 |
|
Maximum speed: |
40 |
[km/h] |

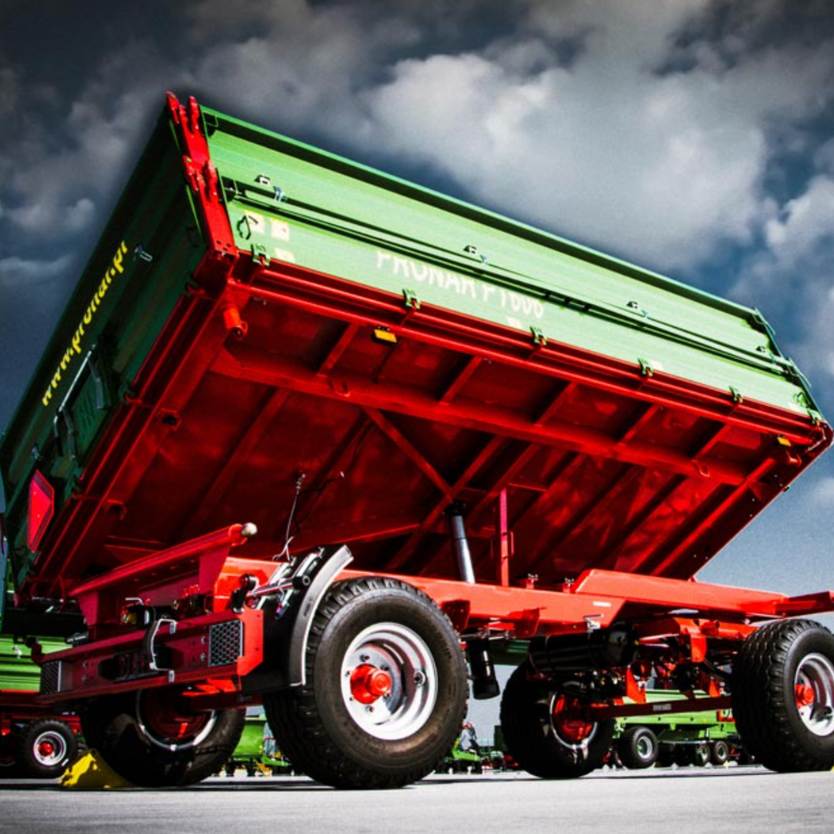

Tipping system : |
3-side |
|
Cargo grips ( on the floor): |
8 |
[pcs] |
Tipping cylinder (piston stroke/oil requirement/working pressure) |
1540mm/8L/200bar |
|
Tractor power requirement: |
46.8/34.4 |
[hp/kW] |
Tipping angle (backwards/sides): |
50/46 |
[˚] |
|
|
|
* technical data for side walls and extensions 500+500mm |
|
|
** width of the loading case suitable for EUROPALET transport |
|
|
|
|
|
Standard equipment |
|
|
Loading case with universal system of sidewalls opening |
Reinforced floor pan with walls central locking system |
Drawbar V type: rigid with Ø40 towing eye |
Rotating turnable |
Braking system: single line air or double line air or hydraulic |
Parking brake with crank |
12 V lighting system with rear electric socket |
Rear lamps with protective grating |
Coiled connecting cable for the lighting installation |

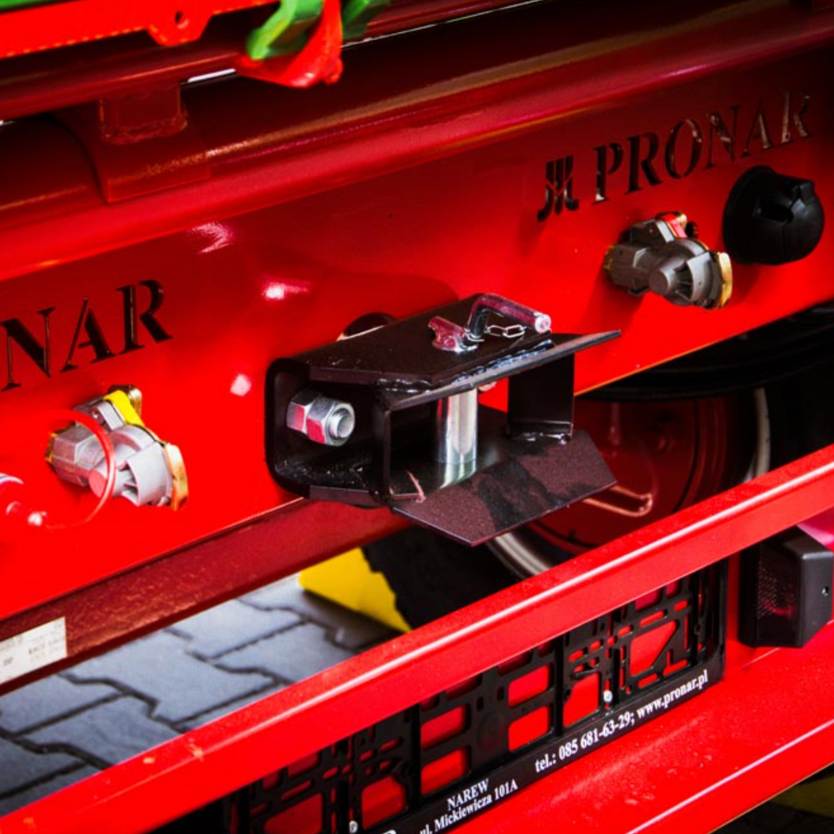

Rear manual hitch |
Rear conections to second trailer |
Tipping system with cut-off valve |
Three side tipping cylinder |
Side walls made of PRONAR profiles 500mm with rim 60mm with forged hinges and locks |
Rear mudguards |
Wheel chocks + racks (2 pcs) |
Ladder and steps facilitating the access to the Loading case |
Tension slat of the sidewalls |
Chassis color red RAL3000 PRONAR |
Double-component chemically hardened painting materials, UV-resistant |
Sidewalls color orange RAL 2008 PRONAR |
Loading case adapted to transport europallets |
Mechanical support of the loading case |
Rear grain hatch with a lever in a rear wall |
