Technical data |
Technically permissible total weight: |
11000 |
[kg] |
Permissible total weight: |
10000 |
[kg] |
Load capacity: |
7300 |
[kg] |
Empty weight: |
2700 |
[kg] |
Loading space: |
16,4 (17,7*) |
[m 2] |
Loading platform length: |
6495 |
[mm] |
Loading space length: |
6740 (7270*) |
[mm] |
Loading platform width (with edges/without edges): |
2517/2410** |
[mm] |
Dimensions: length /width/height: |
9135***/2550/2830 |
[mm] |
Loading platform height: |
1680 |
[mm] |
Platform thickness: |
4 |
[mm] |
Platform height, measured from the ground: |
1150 |
[mm] |
Wheel track: |
1730 |
[mm] |
Suspension: |
parabolic springs |
Tyres: |
400/60-15.5 |
Maximum speed: |
40 |
[km/h] |
Tractor power requirement: |
67,6/49,7 |
[hp/kW] |
|
* With pulled out rear frame exending the platform length |
** EURO pallets transportation width |
*** Standard platform length |
|
Standard equipment |
|
Rounded profiles on the floor edges |
Reinforced platform |
Frame: ractangular made of closed profiles |
Drawbar type: V type with ø40 towing eye |
Steering: rotating turntable |

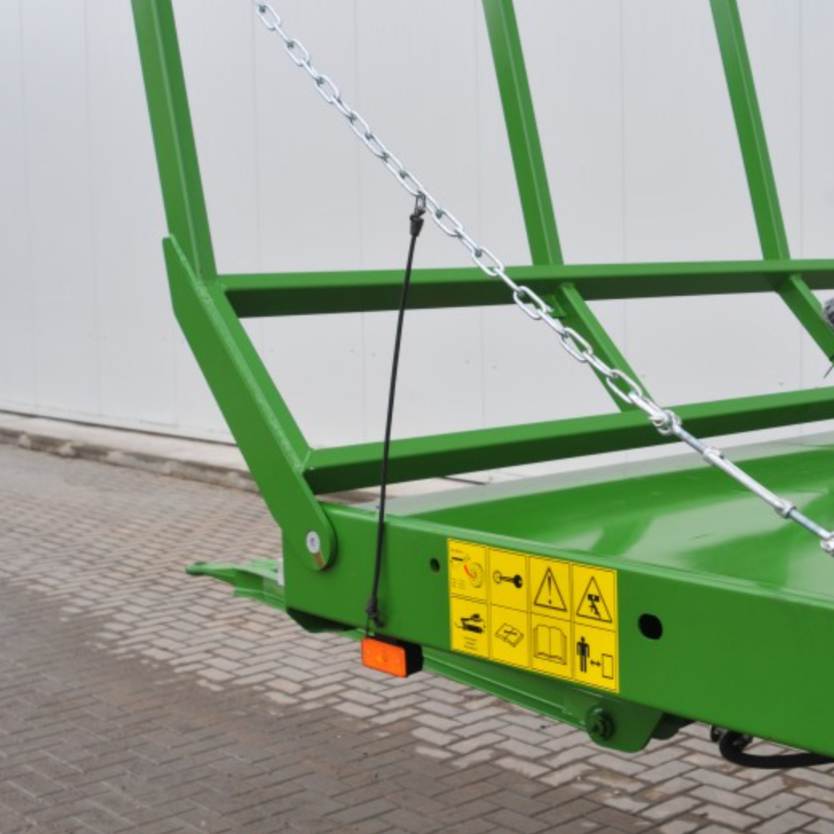

Side ladders with rounded profiles |
Regulated rear frame |

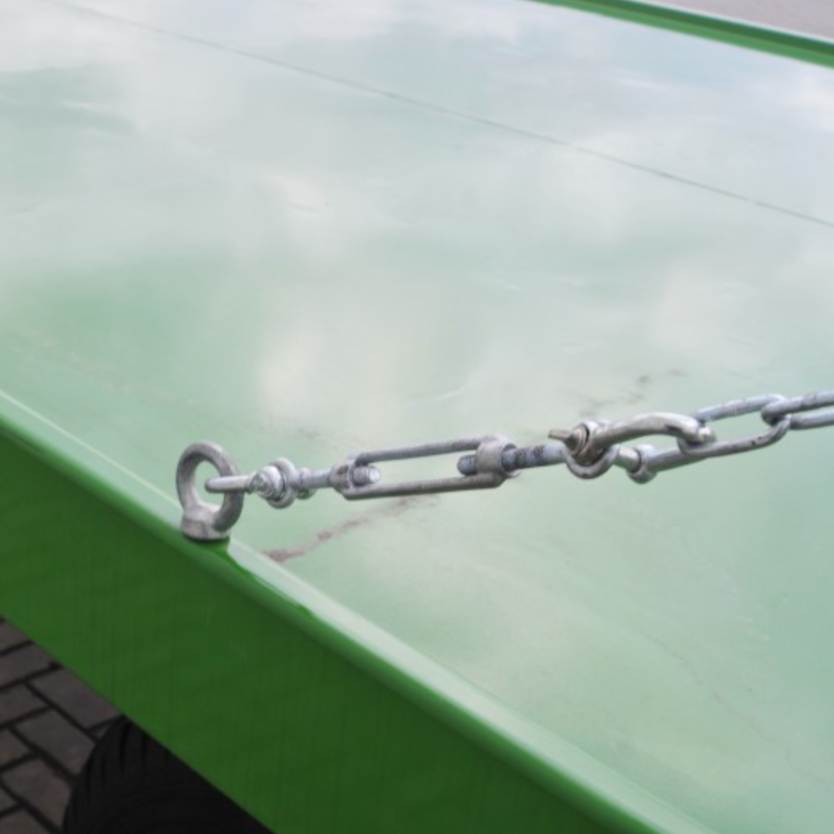

Holes for belt tightening |
Holes for belt tightening on the side ladders |
Braking system: single line or double line air or hydraulic |
Crank hand brake |
Double-component chemically hardened painting materials, UV-resistant |
12V lightning system with rear electric socket |
Rear underrun protection with integrated commercial road lighting system (according to 70/221/EW) |
Wheel chocks and racks |
Platform colour: green RAL6010 PRONAR |
