Technical data* |
Permissible total weight: |
8120 |
[kg] |
Load capacity: |
6000 |
[kg] |
Empty weight: |
2120 |
[kg] |
Load volume: |
8.2 |
[m 3] |
Loading space: |
8.2 |
[m 2] |
Loading case inside lenght: |
4010 |
[mm] |
Loading case inside width: |
conical: 2010/2060 |
[mm] |
Dimensions: length/width/height: |
6140/2230/2170 |
[mm] |
Sidewall height: |
500+500 (option) |
[mm] |
Floor/wall thickness: |
4/2 |
[mm] |
Platform height, measured from the ground: |
1120 |
[mm] |
Wheel track: |
1600 |
[mm] |
Suspension: |
parabolic springs |

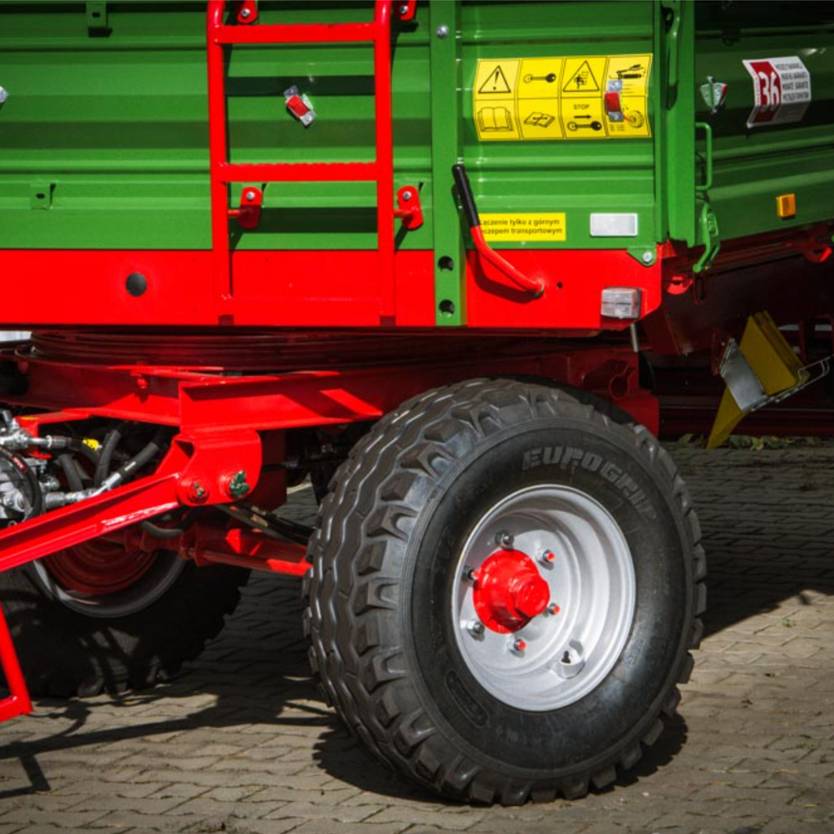

Tyres: |
11.5/80-15.3 |
Maximum speed: |
30 |
[km/h] |

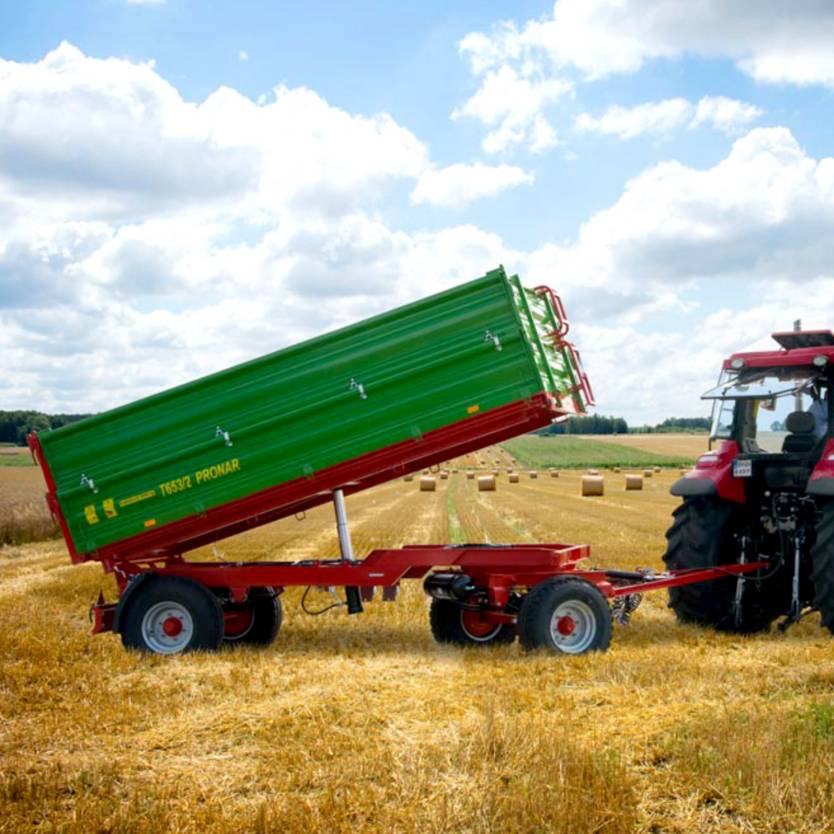

Tipping system: |
3-side |
Tipping cylinder (piston stroke/oil requirement/working pressure) |
1300mm/8L/160bar |
Tractor power requirement: |
46.8/34.4 |
[KM/kW] |
Tipping angle (backwards/sides): |
42/46 |
[˚] |
|
* technical data for side walls and extensions 500+500mm |
|
Standard equipment |
|
Loading case with universal system of sidewalls opening |
Conical shape of loading case (50 mm wider at the back) |
Central locking system |
Drawbar: V type with Ø40 fixed towing eye |
Rotating turntable |
Braking system: single line air or double line air or hydraulic |
Parking brake with crank |
12V lighting system with rear electric socket |
Coiled connecting cable for the lighting installation |
Rear lamps with protective grating |
Rear manual hitch, rigid |
Rear conections to a second trailer |
Tipping system with cut-off valve |
Three side tipping cylinder |
Side walls made of PRONAR profiles 500mm with rim 70mm with forged hinges and locks |
Grain hatch with a lever in a rear wall |
Wheel chocks and racks |
Tipping frame painting colour: red RAL3000 PRONAR |
Side walls painting colour: green RAL6010 PRONAR |
Rear mudguards |
Ladder and side steps facilitating access to the loading case |
Mechanical support of the loading case |
