Technical data |
Technically permissible total weight: |
5500 |
[kg] |
Permissible total weight: |
4990 |
[kg] |
Load capacity: |
3500 |
[kg] |
Empty weight |
1490 |
[kg] |
Load volume: |
6.2 |
[m 3] |
Loading space: |
6.2 |
[m 2] |
Loading case inside length: |
3310 |
[mm] |
Loading case inside width: |
1860 |
[mm] |
Dimensions: length/width/height: |
4825/2045/2060 |
[mm] |
Sidewall height: |
500+500 |
[mm] |
Floor/wall thickness: |
3/2 |
[mm] |
Platform height, measured from the ground: |
1020 |
[mm] |
Wheel track: |
1500 |
[mm] |
Suspension: |
fixed |
Hitch-ring load: |
750 |
[kg] |
Tyres: |
11.5/80-15.3 |
Maximum speed: |
30 |
[km/h] |

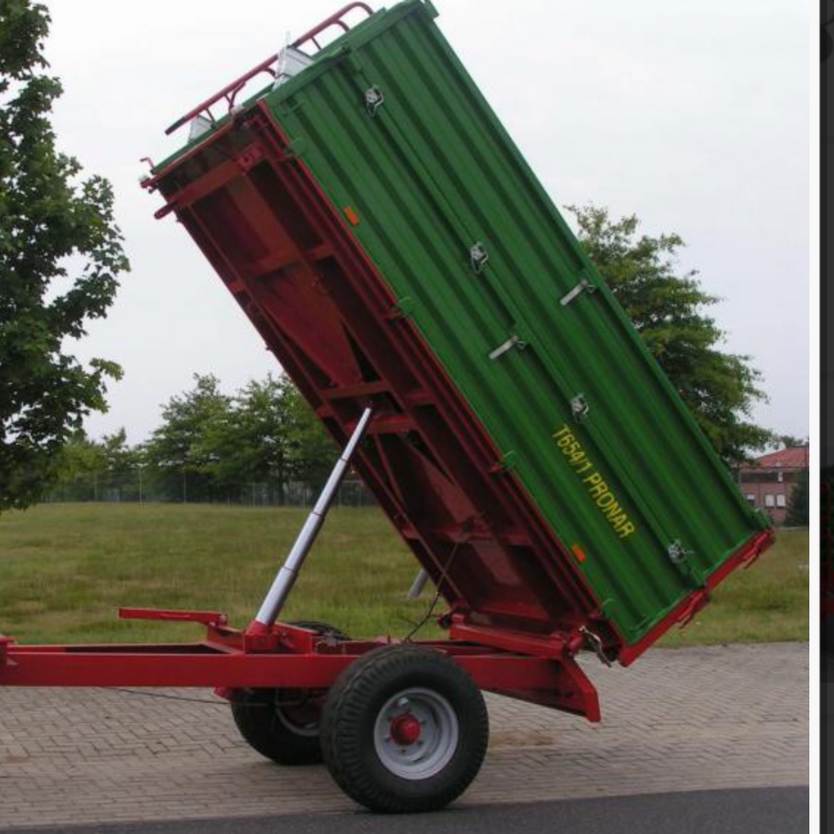

Tipping system: |
3-side |
Number of telescopic cylinder sections |
4 |
Tipping cylinder (piston stroke/oil requirement/working pressure) |
1300mm/8L/160bar |
Tractor power requirement: |
31.2/23 |
[hp/kW] |
Tipping angle (backwards/sides): |
50/46 |
[˚] |
|
|
|
Standard equipment |
|
Loading case with universal system of sidewalls opening |
Central locking system |
Tipping frame: triangular made of open profiles |
Drawbar: lower transportation hitch with Ø50 fixed towing eye |
Drawbar support: supporting wheel |
Braking system: single line air or double line air or hydraulic |
Parking brake with crank |
12V lighting system with rear electric socket |
Tipping system with cut-off valve |

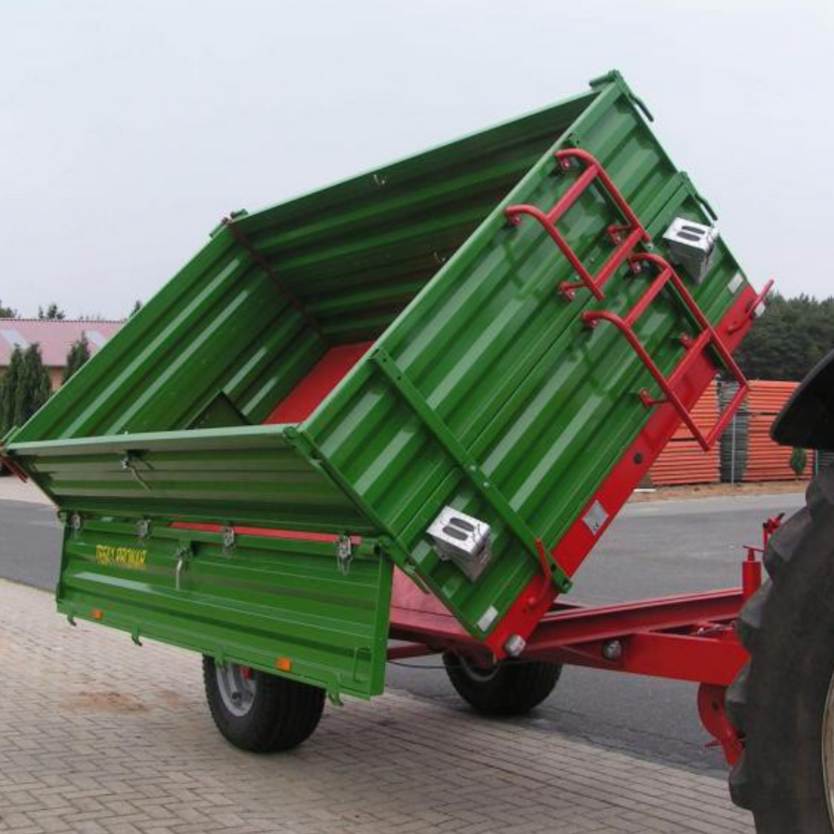

Three side tipping system |
Sidewalls and extensions made of PRONAR profiles 500mm + 500mm with rim 70mm with forged hinges and locks |
Sidewalls fastening string |
Wheel chocks and racks |
Double-component chemically hardened painting materials |
Tipping frame painting colour: red RAL3000 PRONAR |
Side walls painting colour: green RAL6010 PRONAR |
Ladder and side steps facilitating access to the loading case |
Grain hatch with a lever in a rear wall |
Mechanical support of the loading case |
