Technical data |
Technically permissible total weight: |
6100 |
[kg] |
Permissible total weight: |
6100 |
[kg] |
Load capacity: |
4910 |
[kg] |
Empty weight: |
1190 |
[kg] |
Load volume: |
3,2 |
[m 3] |
Loading space: |
6,4 |
[m 2] |
Loading case inside length: |
3500 |
[mm] |
Loading case inside width: |
1820 |
[mm] |
Dimensions: length/width/height: |
4960/1990/1430 |
[mm] |
Sidewall height: |
500 |
[mm] |
Floor/wall thickness: |
3/2 |
[mm] |
Platform height, measured from the ground: |
890 |
[mm] |
Wheel track: |
1400 |
[mm] |
Suspension: |
fixed |
Hitch-ring load: |
1000 |
[kg] |
Tyres: |
11,5/80-15,3 |
Maximum speed: |
25 |
[km/h] |
Tipping system: |
3-side |
Tipping cylinder (piston stroke/oil requirement/working pressure) |
1300mm/8L/160bar |
Tractor power requirement: |
33,6/24,7 |
[HP/kW] |
Tipping angle (backwards/sides): |
50/46 |
[˚] |
|
|
|
Standard equipment |
Loading case with universal system of sidewalls opening |
Central sidewalls locking system (rear, left, right) |
Side walls made of 500 mm rainforced profiles with 70 mm edge, with forged hinges and locks |
Closed walls profiles protected by laser weld |
Grain hatch with a lever in a rear wall |
Tipping frame: Rectangular made of closed profiles |
Drawbar: fixed to couple with lower or upper hitch of the tractor |
Drawbar towing hitch: fixed with Ø40 towing eye to couple with upper hitch of the tractor |
Drawbar support: straight with folded steel wheel |
Braking system: double line air |
Parking brake with crank |
12V lighting system with rear electric socket |
Spiral connecting cable of lighting system |
Tipping system with cut-off valve |
Mechanical support of the loading case |

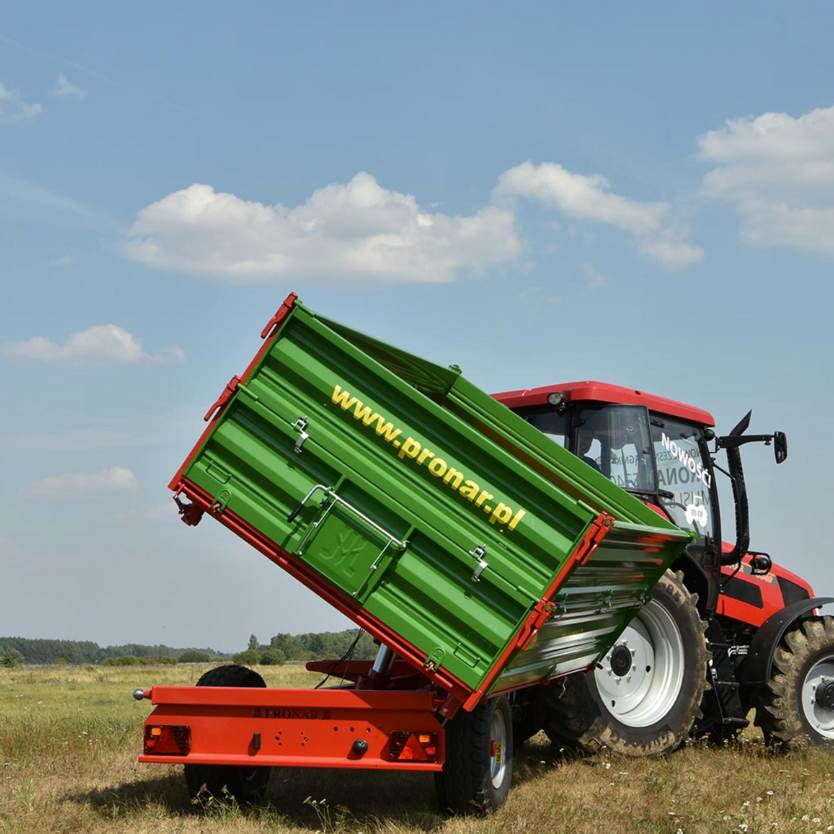

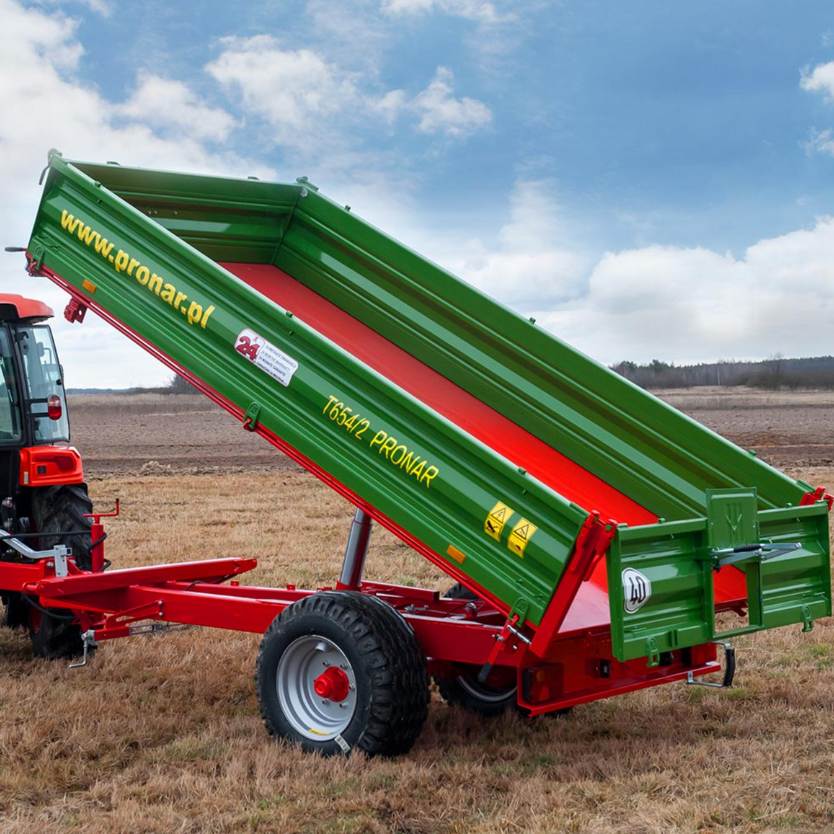

Three side tipping system |
Mechanical support of the loading case |
Wheel chocks and racks (2 pcs) |
Double-component chemically hardened painting materials, UV-resistant |
Chassis color red RAL3000 PRONAR |
Sidewalls color green RAL6010 PRONAR |
