Technical data | ||
Technically permissible total weight: | 14000 | [kg] |
Permissible total weight: | 13290* (12000**) | [kg] |
Load capacity: | 10000 | [kg] |
Empty weight: | 3290 | [kg] |
Load volume: | 11,8 | [m 3] |
Loading space: | 9,8 | [m 2] |
Loading case inside lenght: | 4440 | [mm] |
Loading case inside width: | trapezoid: 2190/2240 | [mm] |
Overall dimensions (lenght/width/height): | 6116/2390/2484 | [mm] |
Sidewall height: | 600+600 | [mm] |
Floor/wall thickness (mm) : | 5/2,5 | [mm] |
Platform height, measured from the ground: | 1250 | [mm] |
Wheel track: | 1700 | [mm] |
Suspension: | Leaf springs | |
Hitch-ring load: | 1860 | [kg] |
Tyres: | 15,0/70-18 | |
Maximum speed: | 30 | [km/h] |

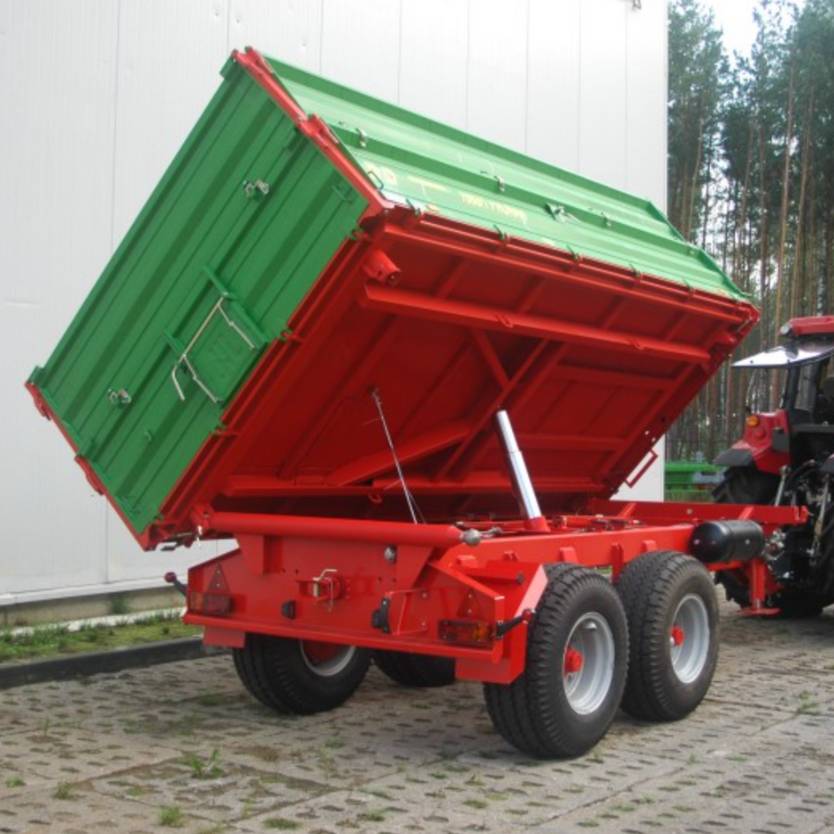

Tipping system : | 3-side | |
Tipping cylinder (stroke / oil demand / pressure) | 1700/13L/200bar | |
Tractor power requirement: | 67,6/49,7 | [hp/kW] |
Tipping angle (backwards/sides): | 50/46 | [˚] |
* for trailers with maximum speed 30km/h | ||
**for trailers with maximum speed 40km/h | ||
Standard equipment | ||
Loading case with universal system of opening walls | ||
3-side tipping system of the loading case with ball joints with the rear shock absorbers of optimum spacing | ||
Selection of the direction of tipping by two pins that protects against incorrect handling | ||
Trapezoidal shape of the loading case ( chest expands by 50 mm in the rearward direction ), reinforced floor panel | ||
Reinforced floor panel with central locking mechanism | ||
Frame: rectangular with closed profiles made of high resistant steel | ||

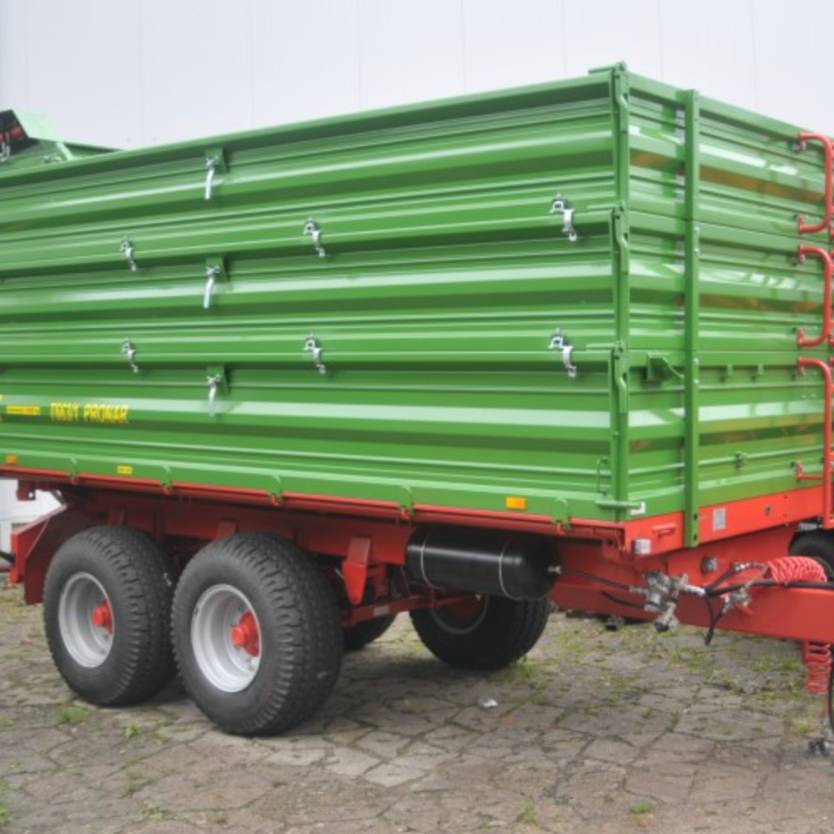

Sidewalls and extentions made of high quality, strong, laser welded profiles each PF600mm, made of profiled sheets; with stable rear pillars; with forged hinges and locks | ||
Closed spaces of the sidewalls and extensions protected by laser weld | ||
Support service of the tool box | ||
Sidewalls fastening string | ||
Rear grain hatch with a lever in a rear wall | ||
Tandem suspension on 4 leaf springs, wheelbase 1160mm, rigid axles equipped with drum brakes | ||
Universal rigid drawbar to connect with the lower or the upper hitch of the tractor | ||
Drawbar towing hitch: rotary with fixed ∅50 towing eye | ||
Drawbar support: hydraulic supporting leg (scissor) Drawbar support: hydraulic supporting leg (scissor) |
||
Braking system: double air line | ||
Parking crank hand brake | ||
Crank hand brake | ||
12 V lighting system with rear electric socket | ||
Rear lamps with protective grating | ||
Coiled connecting cable lighting system | ||
Hydraulic tipping system with cut-off valve | ||
Telescopic servo-motor of 3-side tipping system | ||
Rear mudguards | ||
Wheel chocks + galvanized racks (2 pcs) | ||
Double-component chemically hardened painting materials | ||
Tipping frame colour: red RAL 3000 PRONAR | ||
Side walls painting colour: green RAL 6010 PRONAR | ||
Mechanical support of the loading case | ||

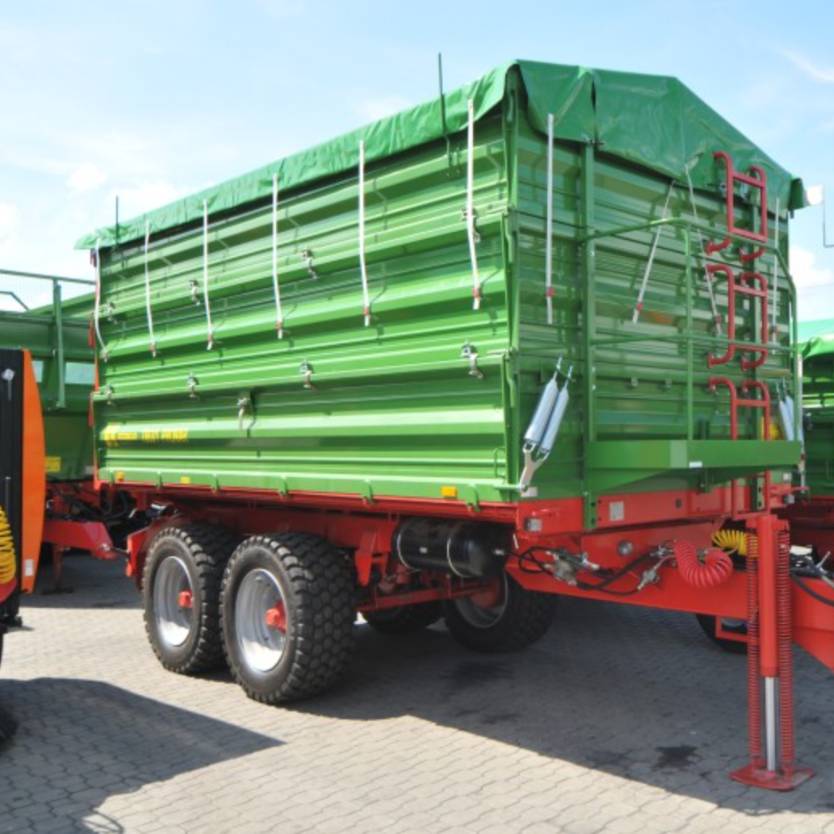

Ladder and steps facilitating the access to the loading case |
