Technical data |
Technically permissible total weight: |
11000 |
[kg] |
Permissible total weight: |
9700* |
[kg] |
Load capacity: |
7000** |
[kg] |
Empty weight: |
2700*** |
[kg] |
Load volume: |
9,8 |
[m 3] |
Loading space: |
9,8 |
[m 2] |
Loading case inside lenght: |
4440 |
[mm] |
Loading case inside width: |
trapezoid: 2190/2240 |
[mm] |
Overall dimensions (lenght/width/height): |
6121/2390/2094 |
[mm] |
Sidewall height: |
500+500 |
[mm] |
Floor/wall thickness: |
4/2 |
[mm] |
Platform height, measured from the ground: |
1060 |
[mm] |
Wheel track: |
1650 |
[mm] |
Suspension: |
parabolic springs |
Hitch-ring load: |
1465 |
[kg] |
Tyres: |
11,5/80-15,3 |
Maximum speed: |
30 |
[km/h] |
Tipping system: |
3-side |
Tipping cylinder (stroke / oil demand / pressure) |
1700/13L/200bar |
Tractor power requirement: |
57,2/42 |
[hp/kW] |
Tipping angle (backwards/sides): |
50/46 |
[˚] |
|
* Maximum gross weight depends on the equipment |
**Load capacity depends on the design and equipment |
*** Empty weight depends on equipment different than standard |
|
Standard equipment |
|
Loading case with universal system of opening walls |
3-side tipping system of the loading case with ball joints with the rear shock absorbers of optimum spacing |
Selection of the direction of tipping by two pins that protects against incorrect handling |
Tandem suspension on 4 parabolic springs, wheelbase 1030mm, fixed axles equipped with drum brakes |
Reinforced floor panel with central locking mechanism |

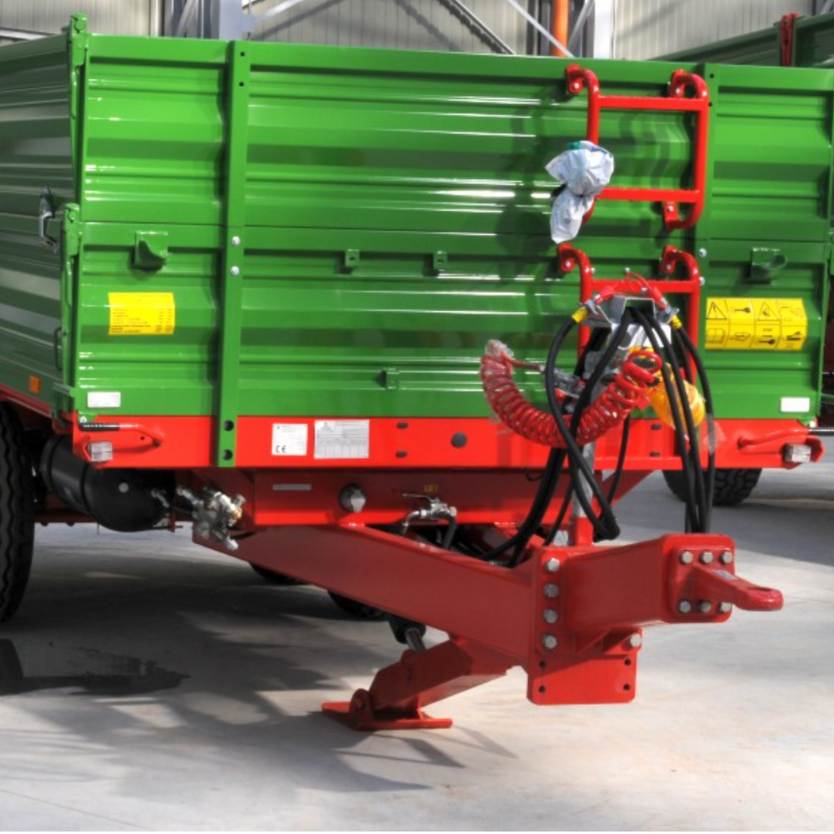

Type of chassis: Rectangular with closed profiles with fixed drawbar |
Universal fixed drawbar to connet with the lower or the upper hitch of the tractor |
Drawbar towing hitch: with fixed ∅50 towing eye |
Drawbar support: hydraulic scissor-type with movable leg and security hydraulic lock |
Braking system: double line air |
Crank hand brake |
12 V lighting system with rear electric socket |
Rear lamps with protective grating |
Coiled connecting cable lighting system |
Hydraulic tipping system with cut-off valve |
Tipping servo-motor of 3-side tipping system |
Sidewalls and extensions made of profile PF500mm+500mm, 70 mm from the rim, with forged hinges and locks |
Closed spaces of the sidewalls and extensions protected by laser weld |
Sidewalls fastening string |

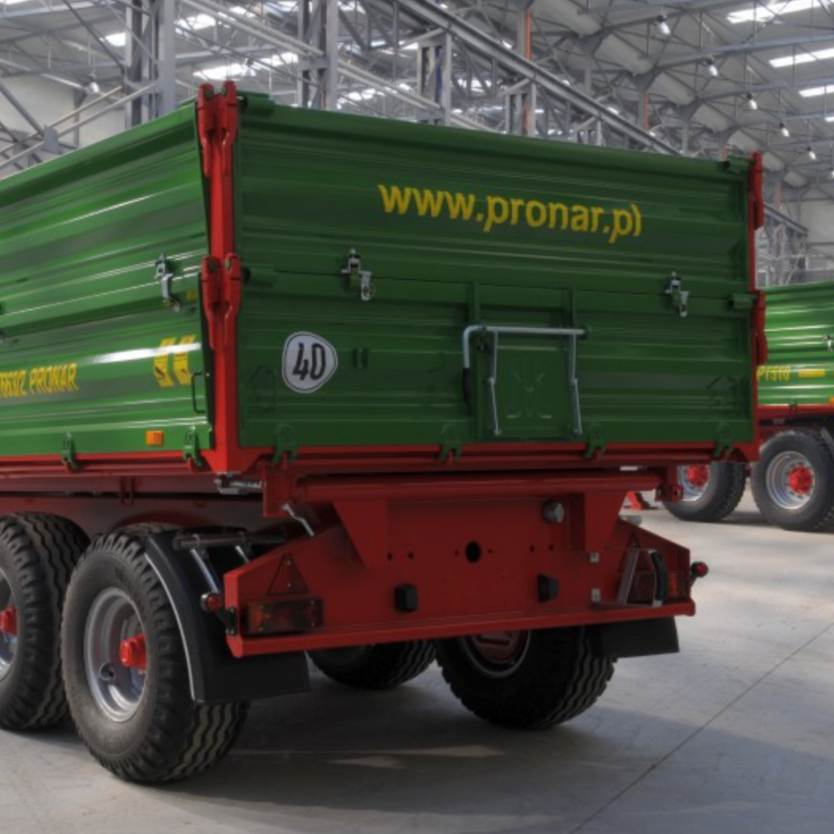

Rear grain hatch with a lever in a rear wall |
Rear mudguards |
Wheel chocks + galvanized racks (2 pcs) |
Double-component chemically hardened painting materials, UV-resistant |
Tipping frame colour: red RAL 3000 PRONAR |
Side walls painting colour: green RAL 6010 PRONAR |
Ladder and steps facilitating the access to the loading case |
Trapezoid shape of the loading case (chest expands by 50 mm in the rearward direction) |
