Technical data | ||
Technically permissible total weight: | 7400 | [kg] |
Permissible total weight: | 6855 | [kg] |
Empty weight | 1855 | [kg] |
Load capacity: | 5000 | [kg] |
Load volume: | 8.2 | [m 3] |
Loading space: | 8.2 | [m 2] |
Loading case inside length: | 4010 | [mm] |
Loading case inside width: | conical:2010 /2060 |
[mm] |
Dimensions: length/width/height: | 5630/2240/2080 | [mm] |
length: | 5630 | [mm] |
Width: | 2240 | [mm] |
Height: | 2080 | [mm] |
Sidewall height: | 500+500 | [mm] |
Floor/wall thickness: | 3/2 | [mm] |
Platform height, measured from the ground: | 1045 | [mm] |
Wheel track: | 1530 | [mm] |
Suspension: | fixed | |
Hitch-ring load: | 1100 | [kg] |
Tyres: | 400/60-15.5 | |
Maximum speed: | 30 | [km/h] |

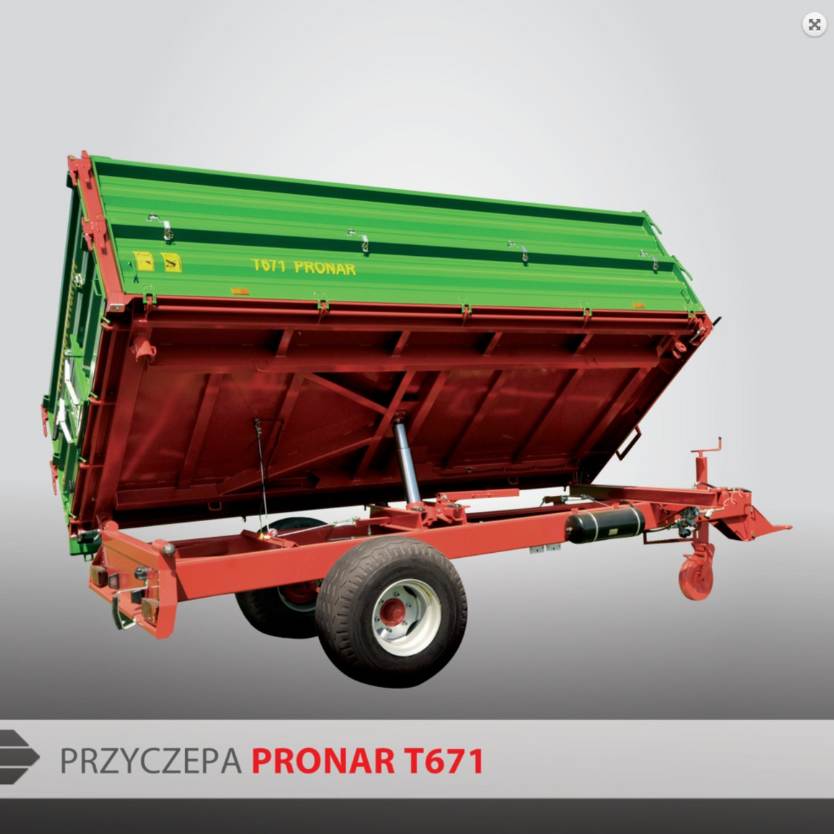

Tipping system: | 3-side | |
Number of tipping cylinder sections: | 4 | |
Tipping cylinder (piston stroke/oil requirement/working pressure) | 1540/8L/200bar | |
Tractor power requirement: | 36.4/26.7 | [hp/kW] |
Tipping angle (backwards/sides): | 50/46 | [˚] |
Standard equipment | ||
Loading case with universal system of sidewalls opening | ||
Central locking system | ||
Tipping frame: triangular made of closed profiles | ||

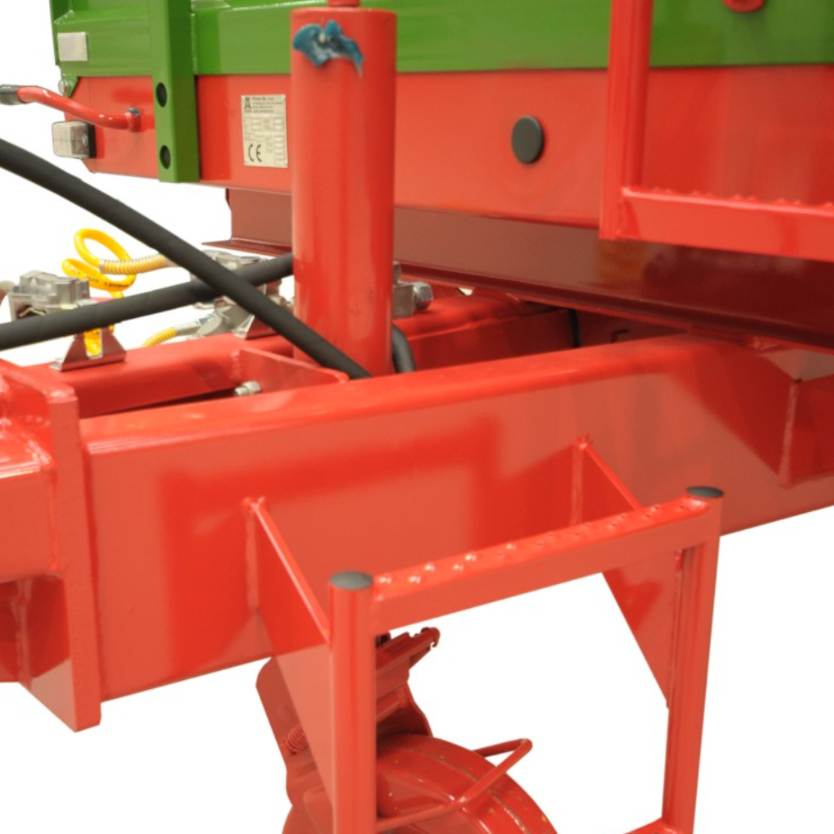

Drawbar: lower transportation hitch with Ø50 fixed towing eye | ||
Drawbar towing hitch: rigid with Ø50 towing eye | ||
Drawbar support: supporting wheel | ||
Braking system: single line air or double line air or hydraulic | ||
Parking brake with crank | ||
12V lighting system with rear electric socket | ||
Tipping system with cut-off valve | ||
Three side tipping cylinder | ||
Side walls and extensions made of PRONAR profiles 500mm with rim 70mm with forged hinges and locks | ||
Three side tipping cylinder | ||
Sidewalls fastening string | ||
Grain hatch with a lever in a rear wall | ||
Wheel chocks and racks | ||
Double-component chemically hardened painting materials | ||
A ladder and side steps facilitating access to the loading case | ||
Tipping frame painting colour: red RAL3000 PRONAR | ||
Side walls painting colour: green RAL6010 PRONAR | ||
Mechanical support of the loading case |
