| Technical data |
| Permissible total weight: |
10350 |
[kg] |
| Load capacity: |
8100 |
[kg] |
| Empty weight: |
2250 |
[kg] |
| Load volume: |
6.4 |
[m 3] |
| Loading space: |
9.7 |
[m 2] |
| Loading case inside length: |
4000 |
[mm] |
| Loading case inside width: |
2420 |
[mm] |
| Dimensions: length/width/height: |
5653/2550/1738 |
[mm] |
| Sidewall height: |
650 |
[mm] |
| Floor/wall thickness: |
4/4 |
[mm] |
| Front wall/ rear wall thickness: |
4/4 |
[mm] |
| Platform height, measured from the ground: |
1070 |
[mm] |
| Wheel track: |
1860 |
[mm] |
| Suspension: |
rigid, single axle |
| Hitch-ring load: |
2000 |
[kg] |
| Tyres: |
500/50-17 |
| Maximum speed: |
40 |
[km/h] |
| Tipping system: |
1-side, rear |
| Tipping cylinder (piston stroke/oil requirement/working pressure) |
1700mm/13L/200bar |
| Tractor power requirement: |
62.6/46 |
[hp/kW] |
| Tipping angle (backwards): |
50 |
[˚] |
|
|
|
| Standard equipment |

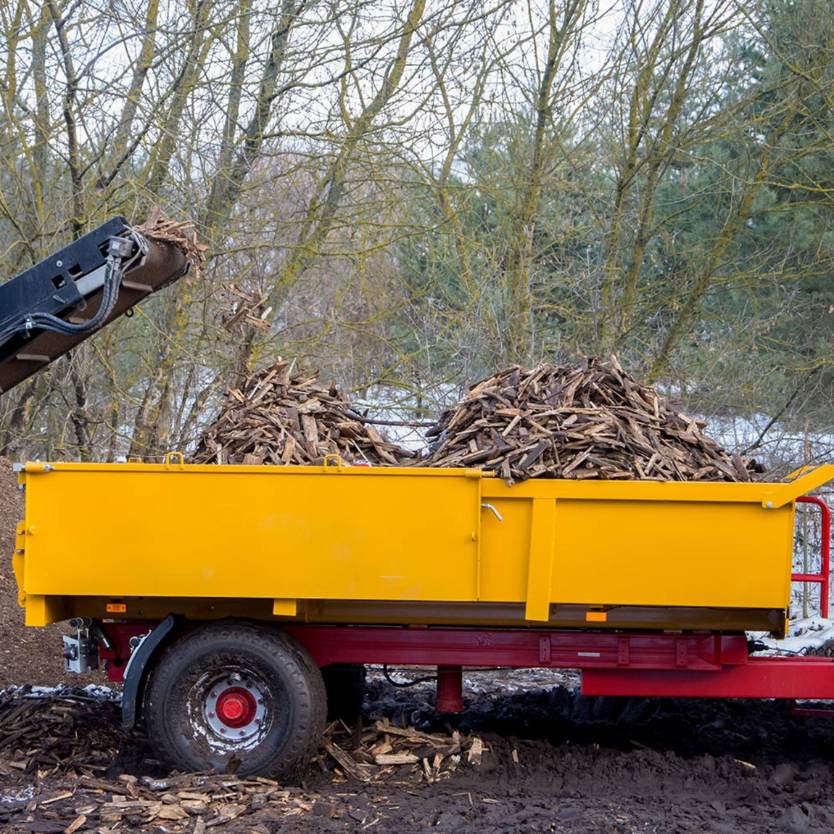

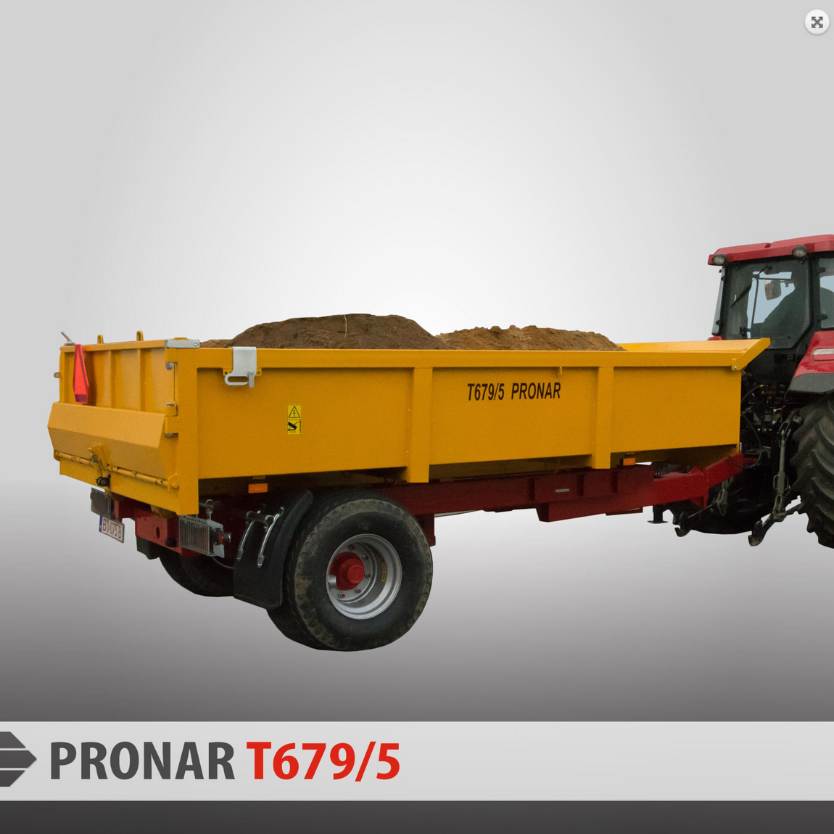

| Very strong construction (monocoque type) of loading case with vertical ribs reinforcing the sidewalls, side wall and floor made of one piece of steel, 90° angle between floor and wall |
| Fastening hooks inside the loading box for securing the load – 4 hooks |
| Hydraulically driven rear flap with height of 325 mm, opened downwords |
| Chassis frame made of hight strength steel with rectangular closed profiles |
| Rigid, single axle suspension, with drum brakes 300×135 axle |
| Drawbar type: universal rigid to couple with lower or upper hitch of the tractor, with a ladder and platform |
| Drawbar hitch: rotary with Ø50 towing eye |
| Drawbar support: mechanical supporting leg with fixed parking foot and cotter pin |
| Braking system: hydraulic |
| Crank hand brake |
| 12 V lighting system with rear electric socket, LED lamps, with airtight connection, with side clearence lights |
| Lighting Connecting Spiral cable |
| Rear lamps with protective grating |
| Tipping system: hydrauilc with automatic cut-off valve and thick safety steel cables |
| Tipping telescopic cyliner |
| Ladder and steps facilitating the access to the loading case |
| Mechanical support of the loading case |
| Hydraulic cables holder with a support for tractor connectors |
| Double-component chemically hardened painting materials, UV-resistant |
| Tipping frame colour: red RAL3000 PRONAR |
| Side walls painting colour: yellow RAL1007 |
