Technical data |
Permissible total weight: |
16000 |
[kg] |
Load capacity: |
12000 |
[kg] |
Empty weight: |
4000 |
[kg] |
Load volume with extensions height 580mm /without extensions: |
15.8 / 10.3 |
[m 3] |
Loading space: |
10 |
[m 2] |
Loading case inside length: |
4500 |
[mm] |
Loading case inside width: |
trapezoid: 2200/2250 |
[mm] |
Dimensions: length/width/height: |
6259/2550/2866 |
[mm] |
Sidewall height: |
1000+580 |
[mm] |
Floor/wall thickness: |
5/4 |
[mm] |
Platform height, measured from the ground: |
1240 |
[mm] |
Wheel track: |
1860 |
[mm] |
Suspension: |
parabolic springs |
Hitch-ring load: |
1950 |
[kg] |
Tyres: |
385/65 R22.5 RE |
Maximum speed: |
40 |
[km/h] |
Tipping system: |
1-side |
Tipping cylinder (piston stroke/oil requirement/working pressure): |
1980mm/18L/200bar |
Tractor power requirement: |
83.2/61 |
[hp/kW] |
Tipping angle (backwards): |
50 |
[˚] |
|
|
|
Standard equipment |
|
Monocoque loading case with vertical ribs reinforcing the sidewalls |

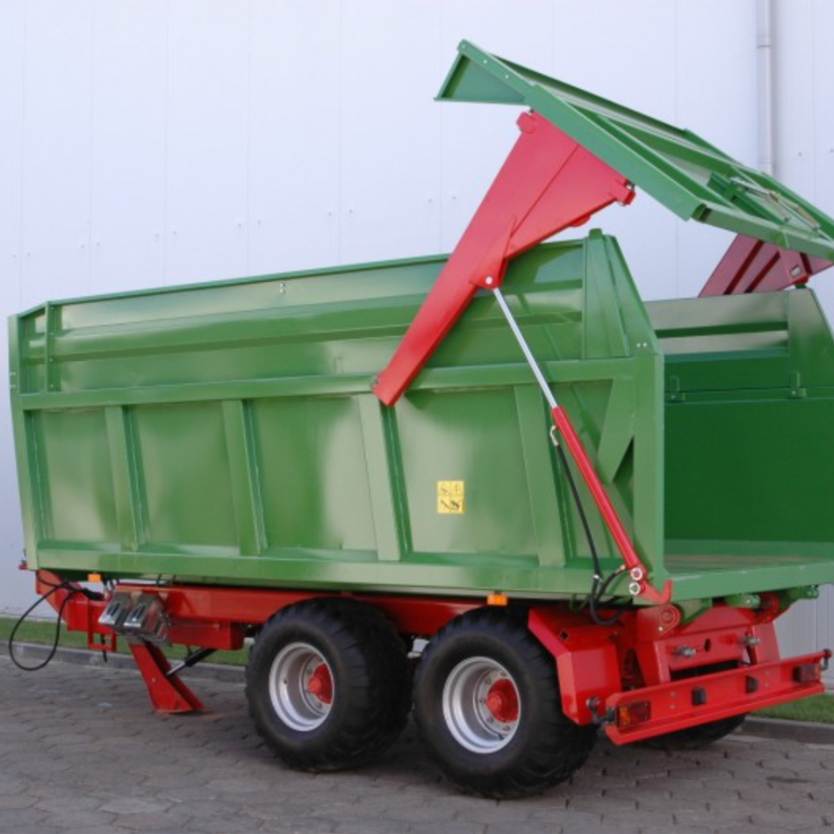

Hydraulically winched tailgate with automatic pressing system |
Chassis frame made of hight strength steel with rectangular closed profiles |
Tandem suspenssion with 4 parabolic springs with 1325 mm wheelbase with fixed axles equipped in drum brakes 400×80 |
Axles for 60 km/h |
Drawbar type: universal rigid to couple with lower or upper hitch of the tractor |
Drawbar hitch: rotary with Ø50 towing eye |
Drawbar support: straight hydraulic leg with ball cut-off valve |
Braking system: double line air or single line air or hydraulic |
Crank hand brake |
Rear mudguards made of plastic |
Wheel chocks + racks (2 pcs) |
12 V lighting system with rear electric socket, bulbs lamps, with airtight connection, with side clearence lights |
Rear lamps with protective grating |
Tipping system: hydrauilc with automatic cut-off valve and thick safety steel cables |
Mechanical support of the loading case |
Hydraulic cables holder with a support for tractor connectors |
Folded ladder and steps facilitating the access to the loading case |
Grain hatch with lever in a rear wall |
Rear protective bumper homologated according to directive 70/221/EWG (in accordance to 2006/20/WE) |
Sidewall extensions height 580 mm made of steel 2mm thickness |
Double-component chemically hardened painting materials, UV-resistant |
Tipping frame painting colour: red RAL3000 PRONAR |
Loading case painting colour: green RAL 6010 PRONAR |
