Technical data |
|
|
Technically permissible total weight: |
20000 |
[kg] |
Permissible total weight: |
18000* |
[kg] |
Load capacity: |
13165** |
[kg] |
Empty weight: |
4840 |
[kg] |
Load volume: |
19.5 |
[m 3] |
Loading space: |
12.7 |
[m 2] |
Loading case inside lenght: |
5250 |
[mm] |
Loading case inside width: |
2410*** |
[mm] |
Lenght: |
7300 |
[mm] |
Width: |
2550 |
[mm] |
Height: |
3250 |
[mm] |
Sidewall height: |
1540 |
[mm] |
Sidewalls material: |
waterproof plywood |
|
Floor/wall thickness: |
5/18 |
[mm] |
Platform height, measured from the ground: |
1390 |
[mm] |
Wheel track: |
1900 |
[mm] |
Suspension: |
parabolic springs |
|
Tyres: |
385/65 R22.5 RE |
|
Maximum speed: |
40 |
[km/h] |
Tipping system: |
3-side |
|
Piston stroke: |
1980 |
[mm] |
Oil requirement: |
18 |
[l] |
Working pressure: |
200 |
[bar] |
Tractor power requirement: |
109.2/80.3 |
[hp/kW] |
Tipping angle (backwards/sides): |
47/47 |
[˚] |
|
|
|
* depends on the road regulations in each country |
|
|
** depends on the road regulations and equipment |
|
|
*** width of the loading case suitable for EUROPALET transport |
|
|
|
|
|
Standard equipment |
|

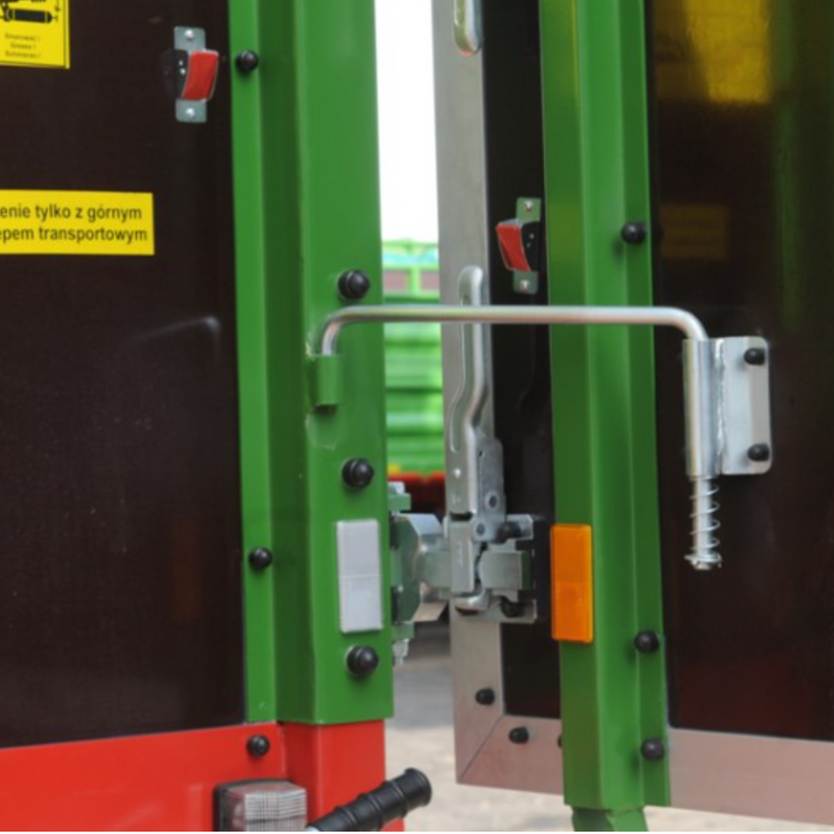

Loading case with special walls openning system |
Reinforced floor pan with central sidewalls locking system |
Drawbar: V type with Ø40 fixeed towing eye |
Rotating turnable |
Braking system: single line air or double line air or hydraulic |
Axles for 60 km/h |
Parking brake with crank |
Rear conections to a second trailer |
Tipping system with cut-off valve |
Telescopic servo-motor of 3-side tipping system |
Segmented sidewalls with middle posts |
Right-sidewall height 800+740 mm, swing and collapsible opening system |
Left-sidewall height 1540 mm, door-like opening system |

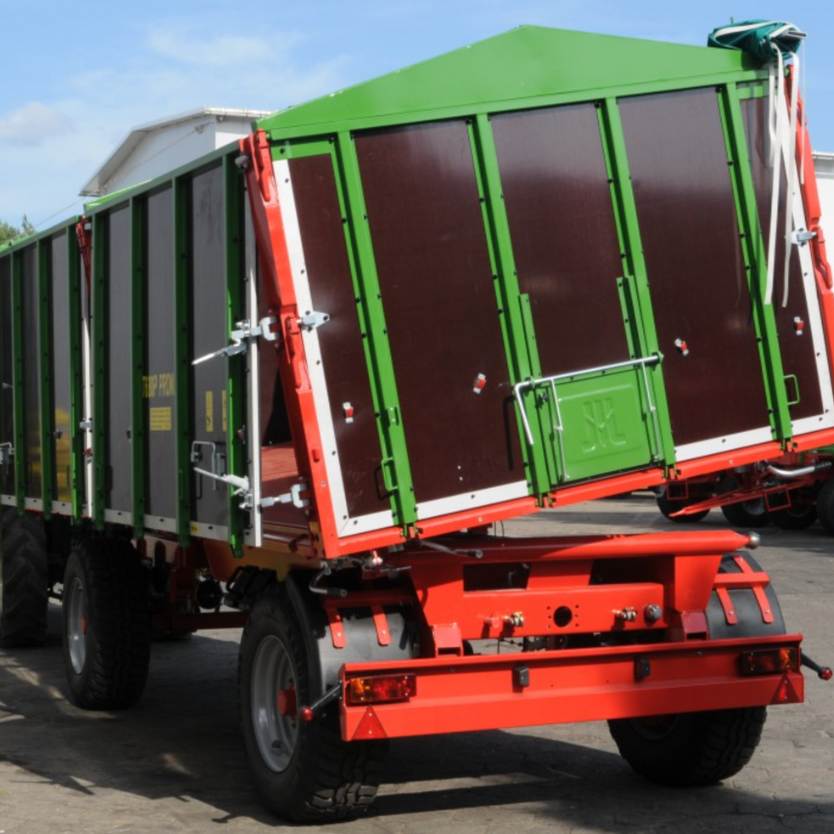

Rear wall height 1540mm, swing and collapsible opening system |
Beam for spare wheel (only for tyres: 385/65 R22,5 and 425/65 R22,5) |
Spare wheel 385/65 R22,5 Regenerated |
Grain hatch with a lever in a rear wall |
Wheel chocks and racks |
12V LED lighting system with rear electric socket |

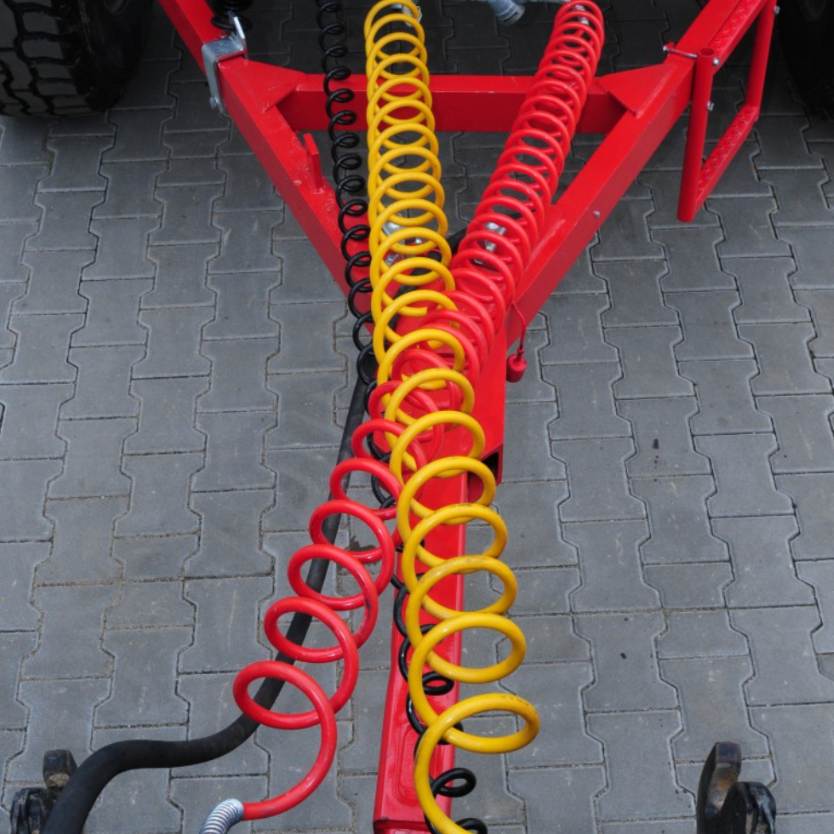

Coiled connecting cable for the lighting installation |
Rear lamps with protective grating |
Plastic rear mudguards |
Double-component chemically hardened painting materials |
Ladder and side steps facilitating access to the loading case |
Loading case adapted to transport europallets |
Frame for the cover |
Mechanical support of the loading case |
Clearence lights |
Tipping frame painting colour: red RAL3000 PRONAR |
Spare wheel 385/65 R22,5 Regenerated |
