Technical data | ||
Technically permissible total weight: | 20000 | [kg] |
Permissible total weight: | 20000* | [kg] |
Load capacity: | 15230** | [kg] |
Empty weight: | 4770 | [kg] |
Load volume: | 17,3 | [m 3] |
Loading space: | 12,3 | [m 2] |
Loading case inside lenght: | 5100 | [mm] |
Loading case inside width: | 2420*** | [mm] |
Overall dimensions (lenght/width/height): | 6800/2550/2790 | [mm] |
Sidewall height: | 800+600 | [mm] |
Floor/wall thickness: | 5/2,5 | [mm] |
Platform height, measured from the ground: | 1350 | [mm] |
Wheel track: | 1960 | [mm] |
Suspension: | parabolic springs | |
Hitch-ring load: | 2000 | [kg] |
Tyres: | 385/65 R22,5 RE | |
Maximum speed: | 40 | [km/h] |
Tipping system : | 3-side | |
Tipping cylinder (stroke / oil demand / pressure) | 1980mm/18L/200bar | |
Tractor power requirement: | 104/76,4 | [hp/kW] |
Tipping angle (backwards/sides): | 50/46 | [˚] |
* depends on the road regulations in each country | ||
** depends on the road regulations and equipment | ||
*** width of the loading case suitable for EUROPALET transport | ||
Standard equipment | ||
Loading case with universal system of opening walls | ||

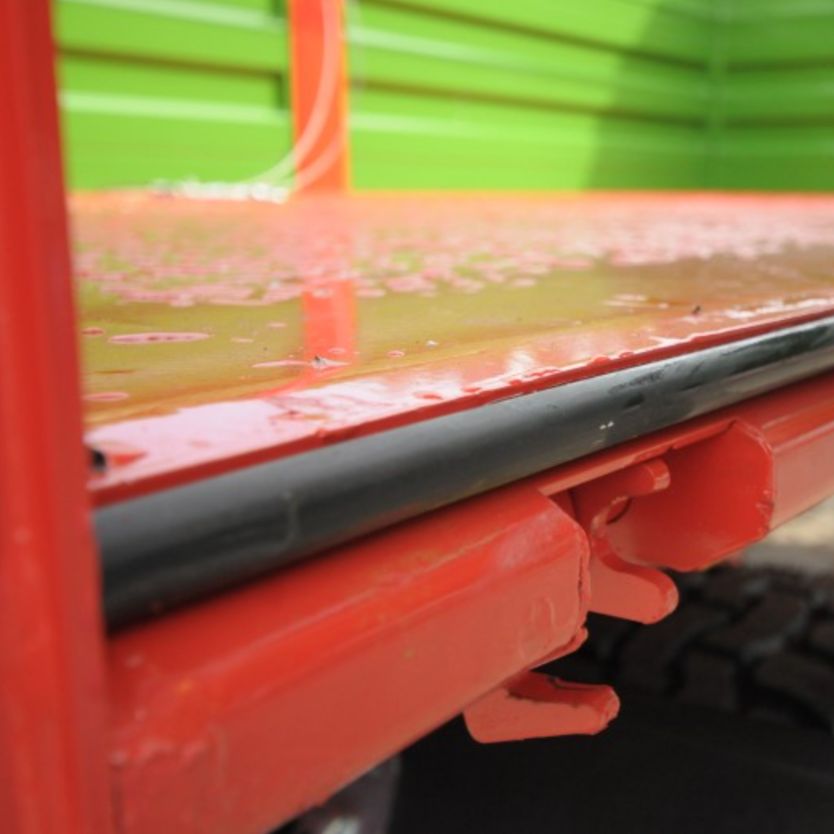

Platform equipped with a special sealing system | ||

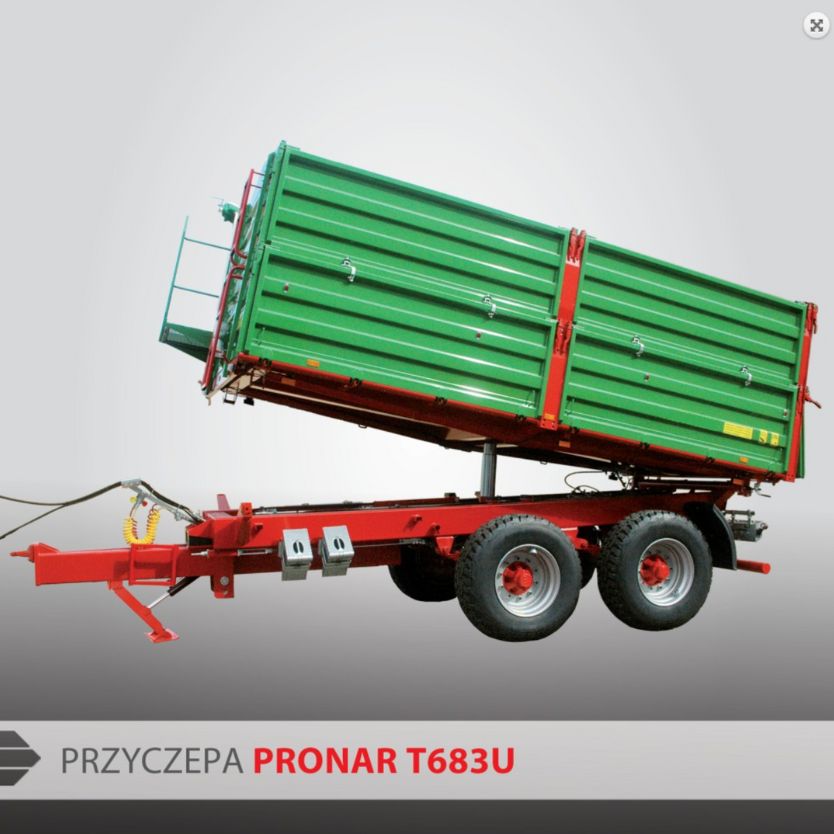

3-side tipping system of the loading case with ball joints with the rear shock absorbers of optimum spacing | ||
Selection of the direction of tipping by two pins that protects against incorrect handling | ||
width of the loading case suitable for EUROPALET transport | ||
Reinforced floor panel with central locking mechanism | ||
Sidewalls made of profile PF800mm, 60 mm from the rim, with forged hinges and locks | ||
Extensions made of profile PF600mm, 60 mm from the rim, with forged hinges and locks | ||
Closed spaces, walls protected by laser weld | ||
The side walls shared with central pillar | ||
Frame: rectangular with closed profiles | ||
Axles on 60 km/h | ||
Universal fixed drawbar to connect to the lower or upper hitch of the tractor, amortized with the rubber springs | ||
Drawbar towing hitch: rotary with towing eye 50mm | ||
Drawbar support: hydraulic supporting leg (scissor type) Drawbar support: hydraulic supporting leg (scissor) |
||
Braking system: double line air with coupling to the second trailer | ||
Crank hand brake | ||
12 V lighting system with rear electric socket, LED lights | ||
Rear lamps with protective grating | ||
Coiled connecting cable lighting system | ||
Side marker lights | ||
hydraulic tipping system with cut-off valve | ||
Tipping servo-motor of 3-side tipping system | ||
Tandem suspension on 4 parabolic springs, wheelbase 1360mm, fixed axles equipped with drum brakes 406×120 | ||
Axles for 60km/h | ||
Rear grain hatch with a lever in a rear wall | ||
Handle with support hydraulic hoses for fittings of plug to the tractor | ||
Service support of the Tool box | ||
Wheel chocks + galvanized racks (2 pcs) | ||
Foldable rear protection | ||
Rear mudguards | ||
Ladder and steps facilitating the access to the loading case | ||
The rear cover, EC type-approval, folding | ||
Double-component chemically hardened painting materials, UV-resistant | ||
Tipping frame colour: red RAL 3000 PRONAR | ||
Side walls painting colour: green RAL 6010 PRONAR |
