Technical data |
Permissible total weight: |
21200* |
[kg] |
Load capacity: |
14000* |
[kg] |
Empty weight: |
7200** |
[kg] |
Load volume: |
14 |
[m 3] |
Loading space: |
11,1 |
[m 2] |
Internal length of Loading space: |
5600 |
[mm] |
Internal width of Loading space: |
trapezoid: 1955/1995 |
[mm] |
Dimensions: length/width/height: |
9000/2550/3740*** |
[mm] |
Sidewall height: |
1265**** |
[mm] |
Floor/wall thickness: |
4/3 |
[mm] |
Platform height, measured from the ground: |
1530 |
[mm] |
Wheel track: |
1940 |
[mm] |
Suspension: |
tandem – parabolic springs |
Hitch-ring load: |
2200 |
[kg] |
Tyres: |
600/50-22.5 |
|
Construction speed: |
40 |
[km/h] |
PTO speed: |
1000 |
[rpm] |
Minimum tractor power requirement / adaptor type |
147.4/108.3 |
[hp/kW] |
Adapter type / max spreading width |
AH20/25 |
[-/m] |
|
|
|
* Permissble construction parameters ( homologation parameters may differ ) |
** Parameters depend on the equipment specification |
*** Height with front protective mesh |
**** Height with a protective wooden batten |
|
Standard equipment |
|
Monocoque loading case |
Tandem suspension with 4 parabolic springs, wheel base 1360mm fixed axles equipped with drum brakes 406x120mm. |

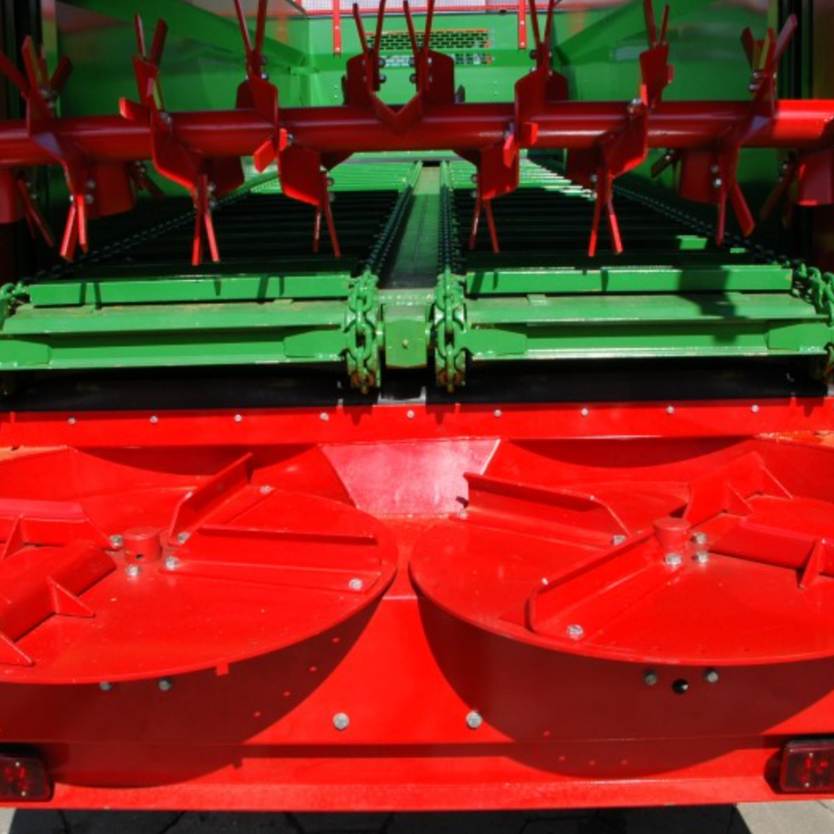

AH20 adapter with 2 horizontal auger beaters with screwed vanes and 2 spreading discs with four screwed vanes on each disc. |
Chain conveyor with four 14mm chains of high quality steel, with hydraulic drive and stepless speed regulation |

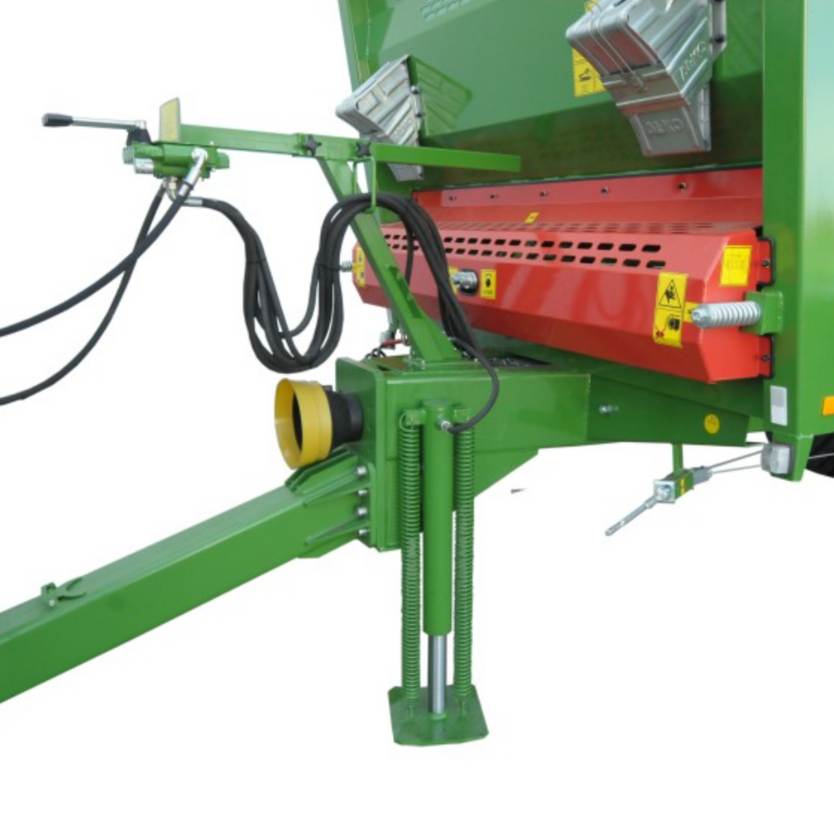

Drawbar type: fixed to couple with lower hitch of the tractor |
Drawbar towing hitch: rotary with towing eye ø50mm PRONAR |
Drawbar support: hydraulic straight leg |
Control from tractor’s hydraulic distributor |
Braking system: double line air |
Crank hand brake |
Wheel chocks + racks (2 pcs) |
Hydraulic guillotine slurry gate |
Hydraulic rear tailgate |
Front protective mesh |
A ledder and side steps facilitating access to the loading case |
Mudguards |
Lighting system 12V |
Single line greasing system of the adapter’s bearing |
Height indicator of the rear slurry gate |
Rubber cover of rear shield |
Double-component chemically hardened painting materials |
Sidewalls, drawbar, axles and conveyor mechanizm colour: green RAL6010 PRONAR |
Rear sliding wall, adapter, mudguards and front mesh colour: grey RAL7021 PRONAR |
