Technical data | ||
Permissible total weight: | 22000 | [kg] |
Load capacity: | 18000* | [kg] |
Empty weight: | 7600** | [kg] |
Load volume: | 18 | [m 3] |
Loading space: | 11,1 | [m 2] |
Internal length of Loading space: | 5600 | [mm] |
Internal width of Loading space: | trapezoid: 1955/1995 | [mm] |
Dimensions: length/width/height: | 8780/2540/3450 | [mm] |
Sidewall height: | 1200/300 | [mm] |
Floor/wall thickness: | 4/3 | [mm] |
Platform height, measured from the ground: | 1530 | [mm] |
Suspension: | tandem – parabolic springs | |
Hitch-ring load: | 4000 | [kg] |
Tyres: | 600/55-22.5 | |
Construction speed: | 40 | [km/h] |
PTO speed: | 1000 | [rpm] |
Minimum tractor power requirement / adaptor type | 170 | [hp] |
Adapter type / max spreading width | AV20/12 | [-/m] |
* Permissble construction parameters ( homologation parameters may differ ) ** Parameters depend on the equipment specification |
||
Standard equipment | ||

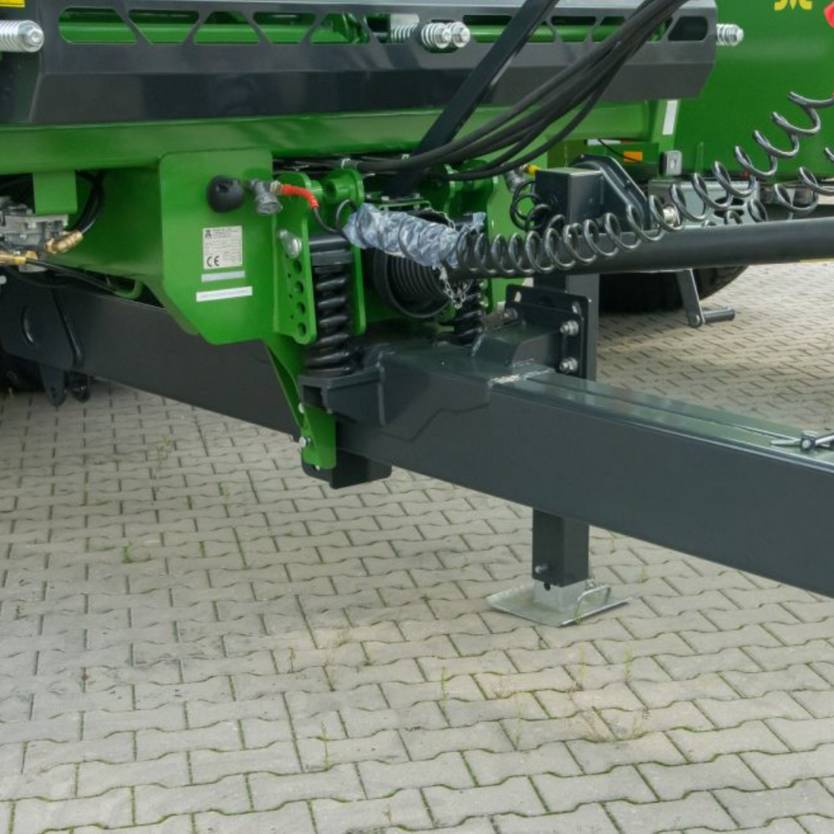

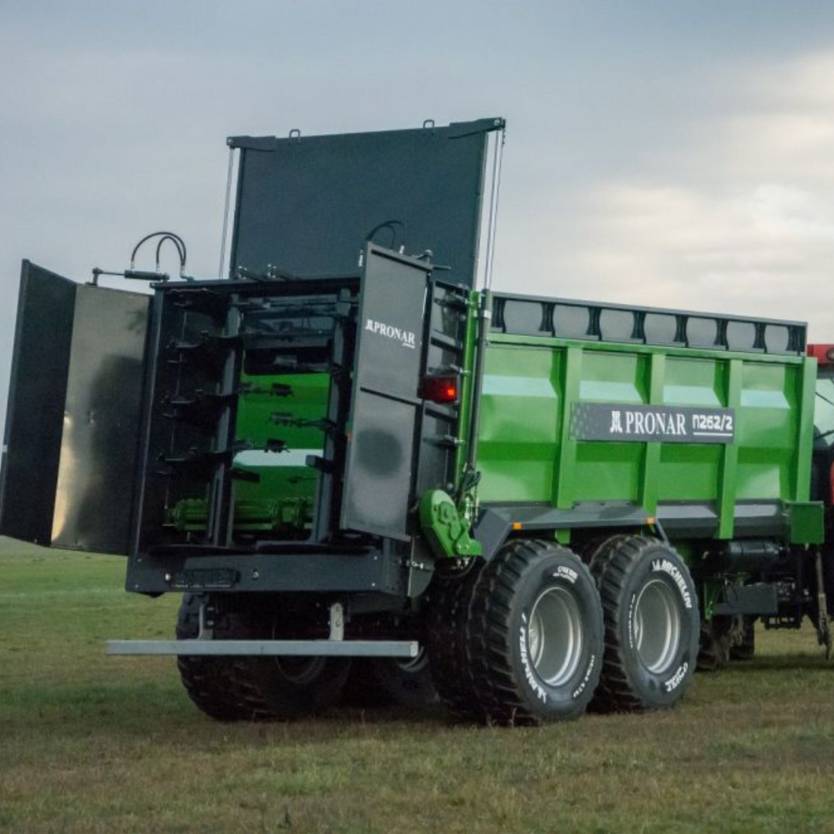

• Monocoque loading case with 300 mm extensions • Holes in the frontwall • Wooden protection on top edge of the laoding case • Front protective mesh • Tandem suspension with 4 parabolic springs, 1500mm, rigid axles and 406×140 mm drum brakes • Spreading adapter with 2 vertical beaters AV20 • Chain conveyor with four 14mm chains of high quality steel, with hydraulic drive and stepless speed regulation • Control from tractor’s hydraulic distributor (external tractor’s hydraulic coupling required) • Hydraulic rear shields • Drawbar type: spring suspended to couple with lower hitch of the tractor • Drawbar towing hitch: rotary with towing eye ø50mm • Drawbar support: telescopic with two-step gear • Braking system: double line air with manual braking force control • 12V lighting system • Folded ladder and access steps to the loading case • Steel mudguards • Wheel chocks + galvanized racks (2 pcs.) • Double-component chemically hardened painting materials • Sidewalls, drawbar, axles and conveyor mechanizm colour: green RAL6010 PRONAR • Rear sliding wall, adapter, mudguards and front mesh colour: red RAL3000 PRONAR |
