Standard equipment |
Sealed movable wall, monocoque loading box. |
Sliding wall provided with elastomeric seals ensuring better sealing. |
Chassis frame welded from I-sections made of high-strength steel. |
Drawbar towing hitch: ball-type K80mm (4000kg) to couple with lower hitch of the tractor. |
Drawbar support: telescopic with 2-section gear. |
Universal rigid drawbar with hydraulic shock absorption. |
Tridem suspension on 6 parabolic springs with 1810 mm axle track, compensatory swingarms, fixed middle axle and active steering of front and rear axle. Drum brakes Ø406×140 mm. |
Hydraulic turning blockade with manual pump to filling the system. |
Active steering acc. ISO 26402- Turning system facilitated by tractor’s hitch system according to ISO 26402 (trailer is not equipped in tractor’s turning system). |
Braking system: double line pneumatic with manual braking force regulator. |
Air hand brake. |
Rear underrun protection according to 70/221/EWG (2006/20/WE)- homologated. |
Rear lighting system 12V LED) with side clearance lights and bars protecting against damage. |
Hydraulic system of sliding front wall and front part of the floor. |
Wheel chocks and racks. |
A set of plastic mudguards over the wheels (behind rear wheels and ahead of front wheels). |
PLEXI- control window on a movable wall. |

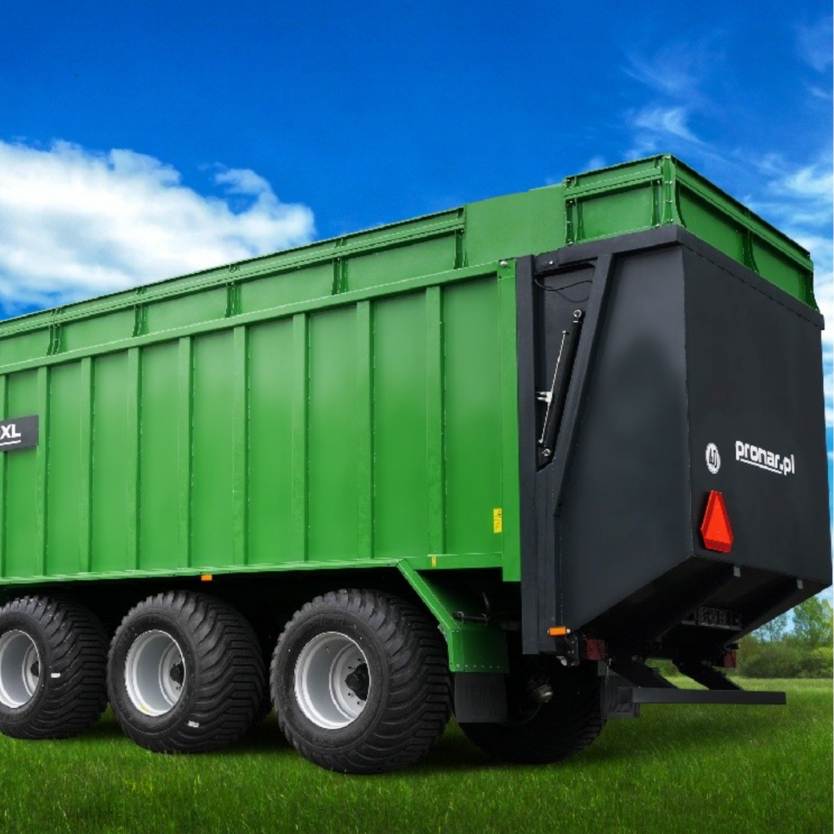

Hydraulic tailgate with automatic locking system. |
Hydraulic pipes marked with colors to better identification of their destiny. |
A ladder and side steps facilitating access to the loading case. |
Grain hatch with lever in rear wall. |
Double-component chemically hardened painting materials. |
Loading box and frame painting colour: green RAL6010 PRONAR, drawbar and tailgate: grey RAL7021 PRONAR. |
