Opis
Permissible total weight: | 12000 | [kg] |
Load capacity: | 8500 | [kg] |
Empty weight: | 3500 | [kg] |
Loading space: | 14* | [m 2] |
Loading case inside length: | 6990 | [mm] |
Loading case inside width: | 2300 | [mm] |
Loading case inside height: | 2100** | |
Dimensions: length/width/height | 8920/2530/2800 | [mm] |
Sidewall height: | 1400 | [mm] |
Floor thickness: | 4/3 | [mm] |
Platform height, measured from the ground (transport position/loading position): | 660/130 | [mm] |
Wheel track: | 2200 | [mm] |
Suspension: | hydraulic | |
Hitch-ring load: | 1500 | [kg] |
Tyres: | 14.0/65-16 | |
Maximum speed: | 40 | [km/h] |
Tractor power requirement: | 65/47.8 | [hp/kW] |
* surface without inner wheel arches | ||
** height from the ground to the highest point of the canvas cover frame |
Standard equipment
Chassis frame made of steel closed rectangular profiles
Sidewalls made of profiles steel 3 mm
Universal drawbar integrated with frame to couple with upper or lower hitch of the tractor
Swinging gull-wing side doors

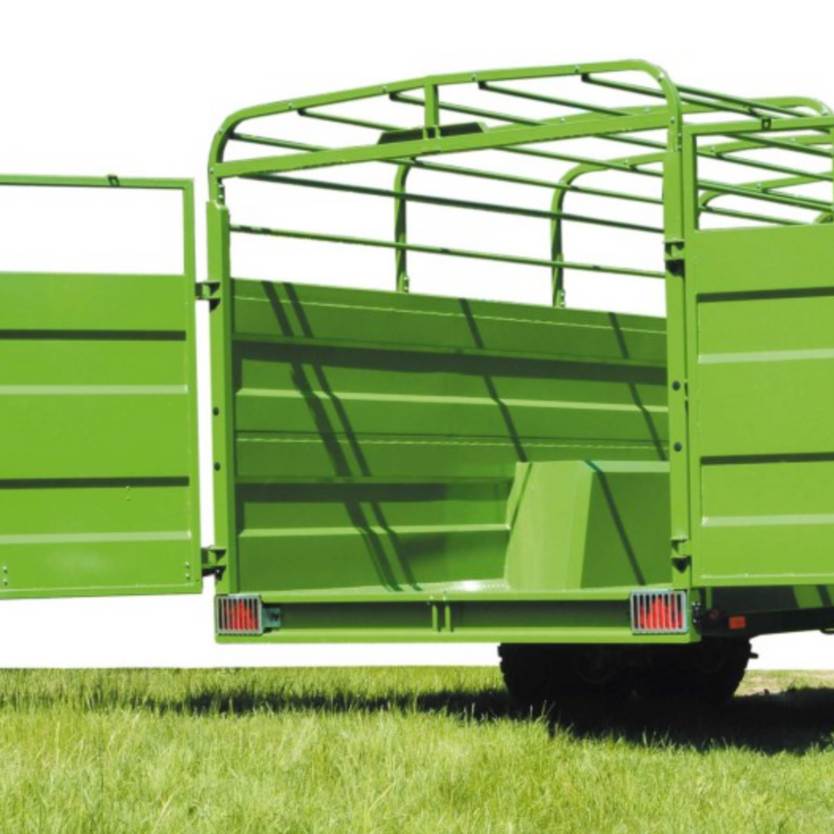

Wide-opening of rear door

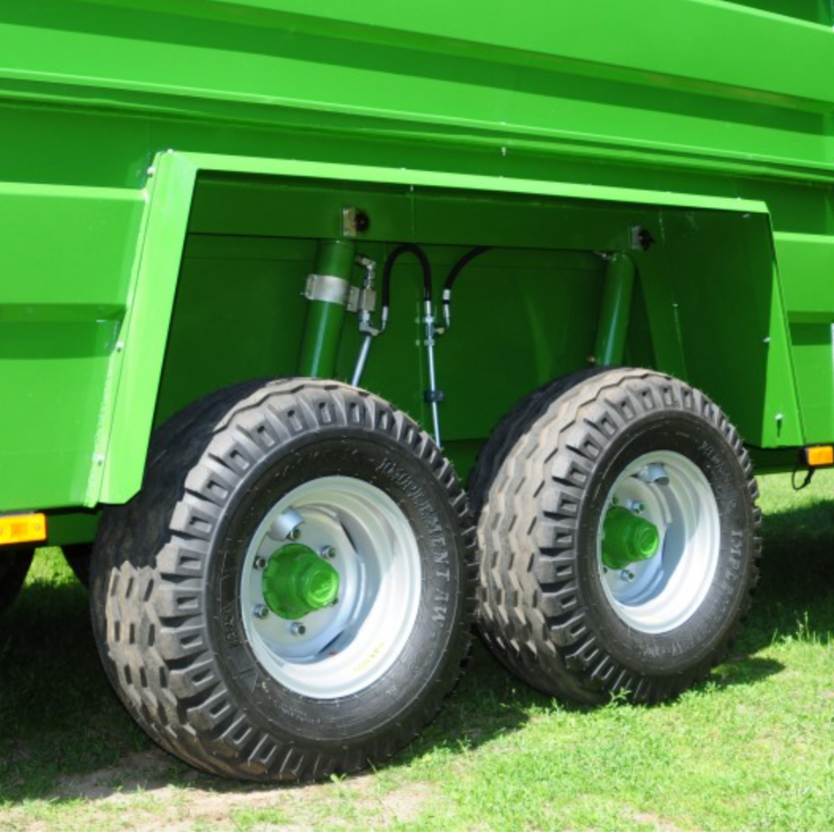

Tandem suspension with 4 hydraulic cylinders fitted with drum brakes

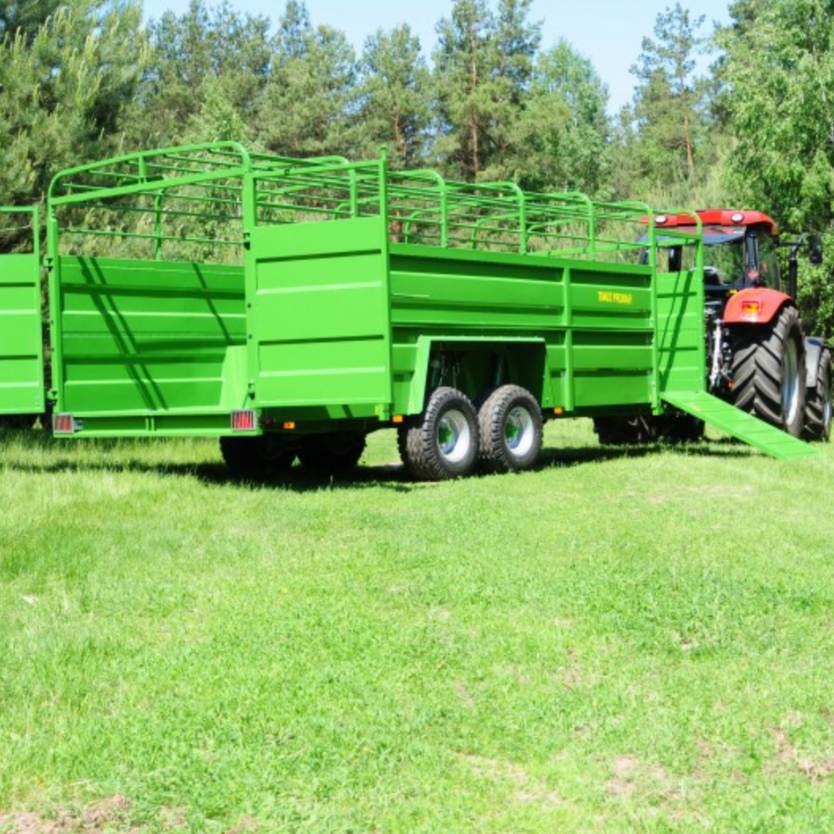

Hydraulically lowered loading case facilitating animal (un)loading
Hydraulic vibration shock absorbers
Drawbar towing hitch: rotary with towing eye 50 mm to couple with lower hitch of the tractor
Drawbar support: mechanic with a winch
Sealed chequer plate floor with two drainage holes
Braking system: double line pneumatic
Crank hand brake
Lighting system
Cover frame
Double-component chemically hardened painting materials, UV-resistant.
Wheel chocks + galvanized racks
Platform color: green RAL6010 PRONAR
