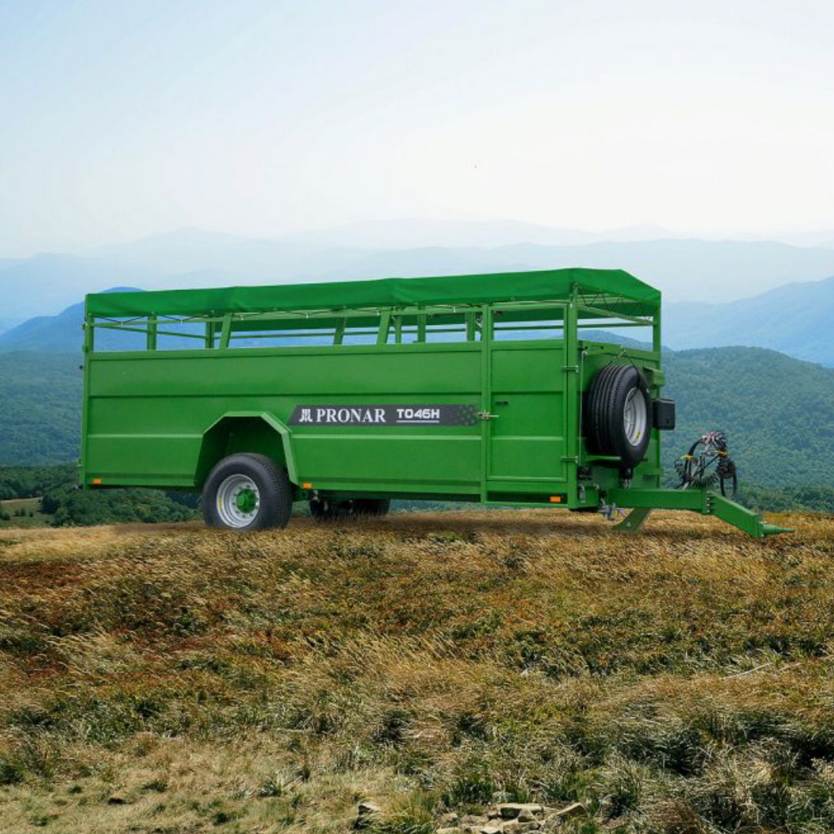

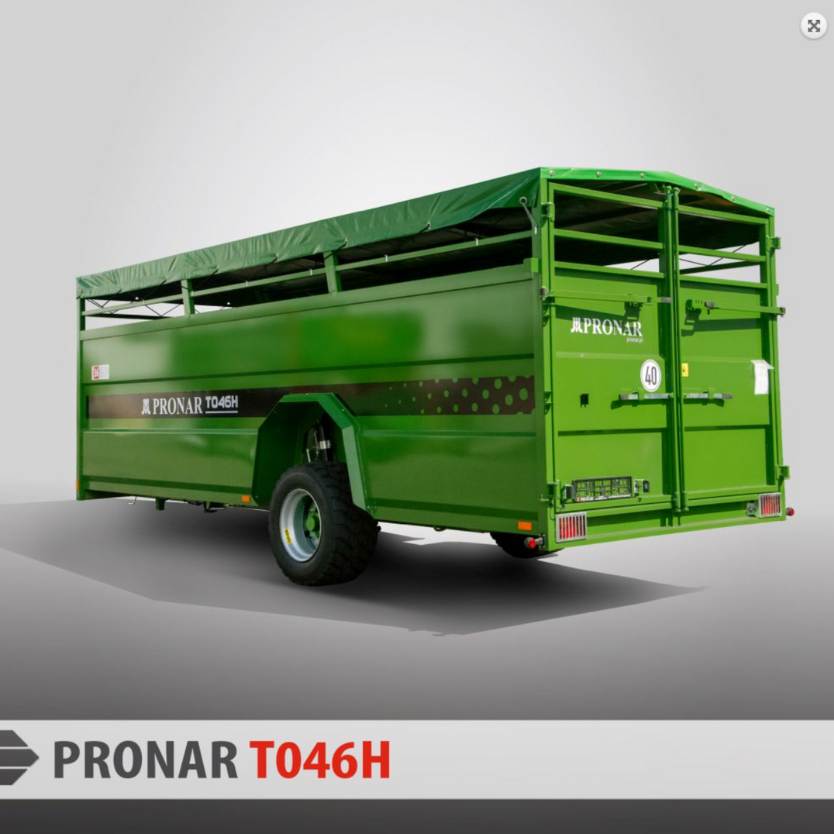

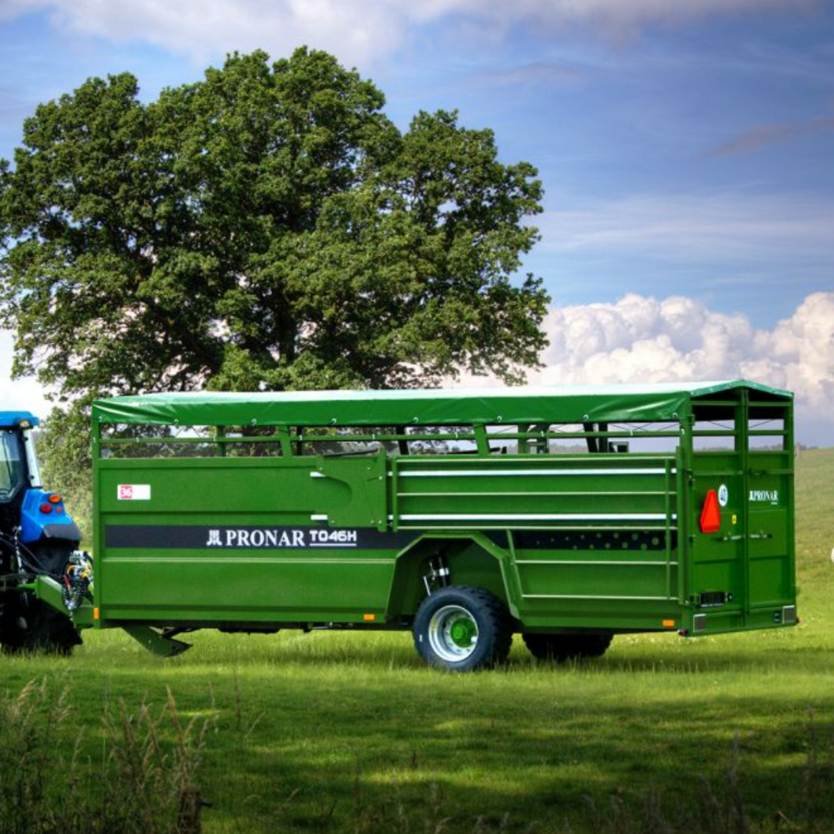

PRONAR trailer T046H

Single axle Pronar trailer T046H is the new cattle trailer in our offer. The construction of the trailer is well prepared and allows for safe and comfortable transport of up to 8 heads of cattle (up to 700 kg) or 10 heads of cattle (up to 550 kg). Cattle loading and unloading can be faster thanks to hydraulically lowered body with wide door and optional side barriers. Cattle comfort and safety is increased thanks to high walls (1,5m) and hydraulic shock absorbers of the suspension which minimalizes any bumps and vibrations while driving.


Allowable total weight: 11000 [kg]
Load capacity: 7850 [kg]
Empty weight: 3150 [kg]
Loading space: 13,2 * [m 2]
Loading case inside length: 6290 [mm]
Loading case inside width: 2240 [mm]
Loading case inside height: 2100 ** [mm]
Dimensions: length/width/height 8320/2550/2860 [mm]
Sidewall height: 1500 [mm]
Floor/ sidewalls thickness: 4/3 [mm]
Platform height, measured from the ground (transport position/ loading position): 700/200 [mm]
Wheel track: 2160 [mm]
Suspension: hydraulic (single axle)
Hitch-ring load: 2000 [kg]
Tyres: 385/65R22,5
Maximum speed: 40 [km/h]
Tractor power requirement: 41,6/30,6 [hp/kW]
* surface without inner wheel arches
** height from the ground to the highest point of the canvas cover frame

Standard equipment
• Hydraulically lowered loading case facilitating animal (un)loading
• Chassis frame made of steel closed rectangular profiles
• Side doors (on the right) facilitating access to the transported cattle
• Wide-opening of rear door
• Sealed chequer plate floor with two drainage holes

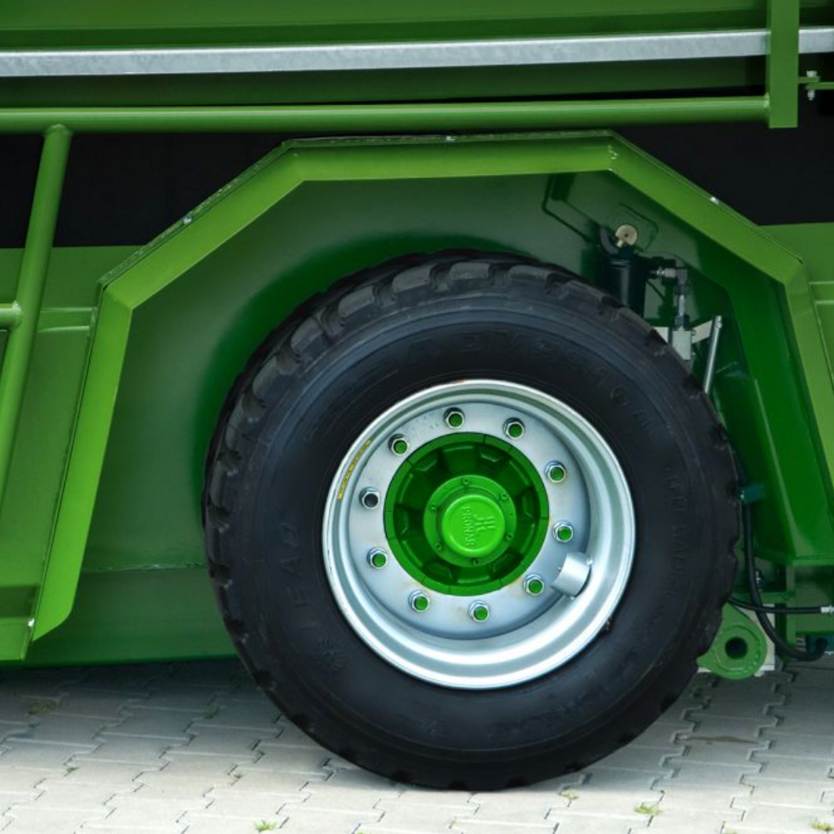

• Single axle suspension with 2 hydraulic cylinders fitted with drum brakes (406×120)
• Hydraulic vibration shock absorbers
• Drawbar towing hitch: rigid, to couple with lower hitch of the tractor
• Drawbar towing hitch: rotary with towing eye 50 mm
• Drawbar support: hydraulic with single-step gear
• Braking system: double line air with manual braking force control
• Crank hand brake
• Lighting system 12V (LED)
• Spiral lightning system cable
• Laced cover frame
• Laced cover
• Wheel chocks + galvanized racks
• Double-component chemically hardened painting materials, UV-resistant
• Platform painting colour: green RAL6010 PRONAR

Additional equipment

• Chequer plate floor with two drainage holes covered with 15 mm anti-sliding and damping resin, covered with 15 mm rubber layer
• Drawbar towing hitch: fixed upper with 40 mm towing eye
• Drawbar towing hitch: fixed ball-type K80 mm
• Drawbar support: hydraulic with ball cut-off valve
• Braking system: double line air with automatic braking force control (ALB)
• Braking system: hydraulic
• Cattle separating inner wall (on guide)
• Fixed inner wall with adjustable position
• Rear gate securing rear double doors
• Loading facilitate side barriers (on guide)
• Additional light in loading case
• Tube for documents
• Spare wheel with support and winch
• Tyres 400/60 15.5 (trailer width 2605mm)
• Warning triangle
• Non standard colours according to RAL CALSSIC codes
