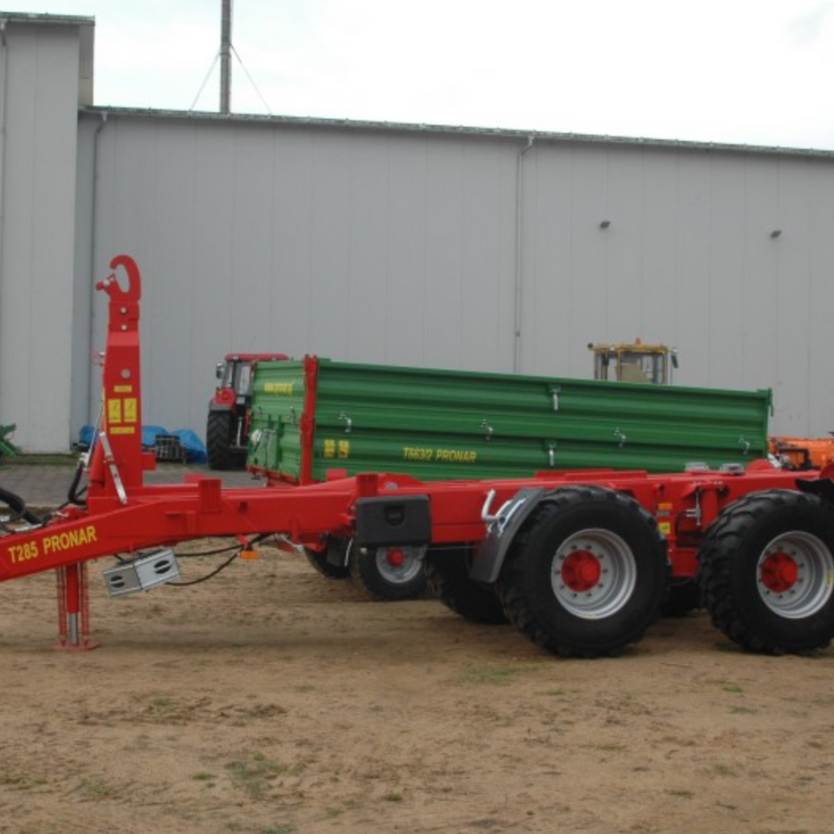

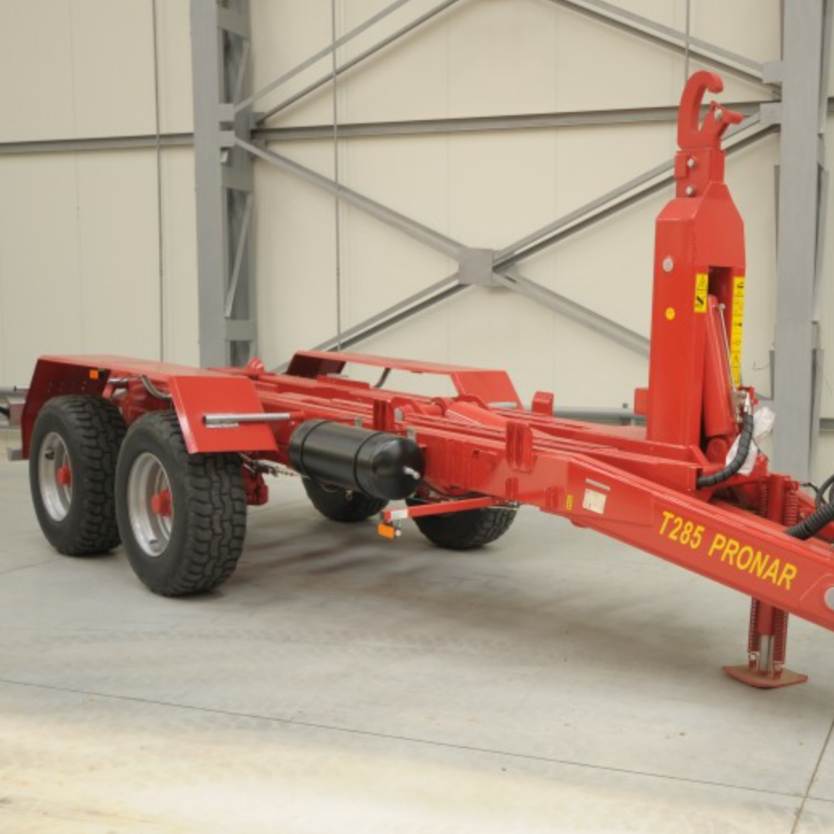

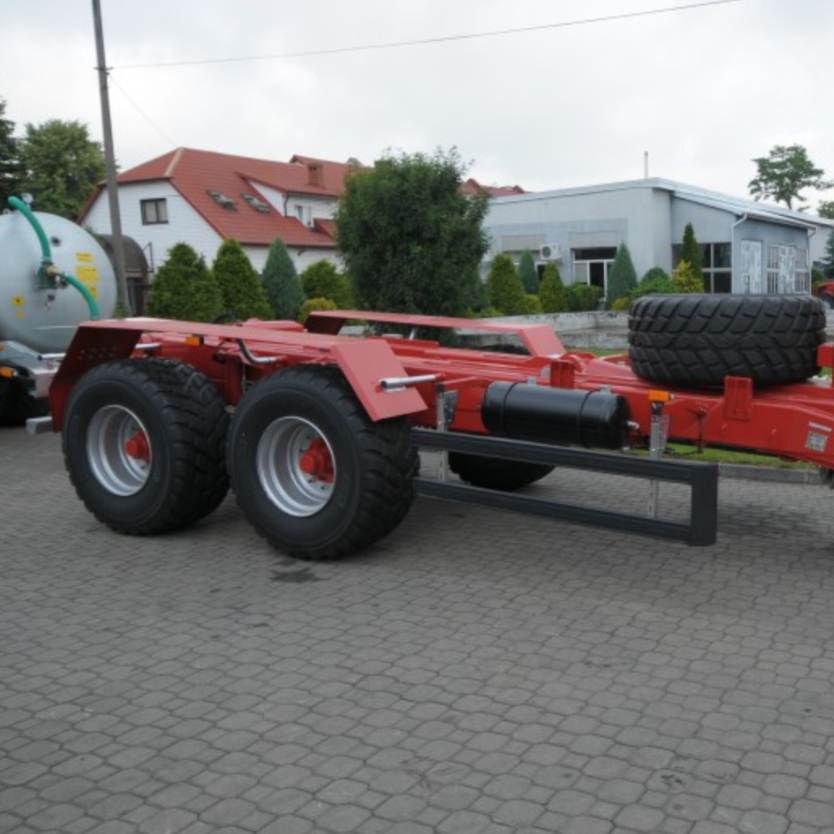

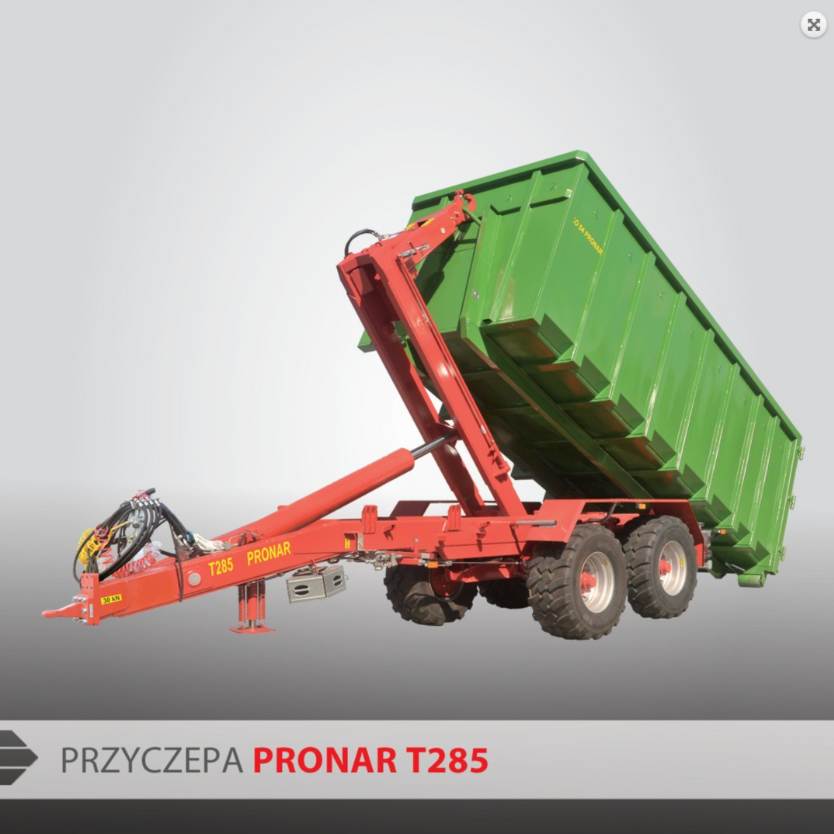

PRONAR trailer T285

Universal PRONAR T285 trailer, which can work for the whole year in agriculture, construction and waste management! The ideal solution for companies and municipalities that seek universal and durable equipment for various tasks associated with maintaining cleanliness and for road works.

Hook lift trailer PRONAR T285 which can be used all year round in agricultural, construction waste disposal industry. That’s an ideal solution for firms and communes which are looking for a universal and long-lasting equipment to handle various activities amid at keeping the surrounding neat and clean as well as road-ground actions.


Allowable total weight (technically): 21000 [kg]
Permissible total weight: 21000 [kg]
Load capacity: 16360 * [kg]
Empty weight: 4640 [kg]
Lenght without a container: 7313 [mm]
Lenght with the shortest/longest container: 7413/8413 [mm]
Width without a container: 2550 [mm]
Width with a container (min/max): 2550 [mm]
Attachement dimensions of the container:
Hook height: (min/max): 1450/1570 [mm]
Rolls track: 1070 [mm]
Permissible dimensions of the container:
Lenght: (min/max): 5400/6400 [mm]
Internal lenght: (min/max): 5000/6000 [mm]
Width: max 2550 [mm]
Height: max 2500 [mm]
Height of the trailer without container: 2981 [mm]
Height of the guide rollers from the ground: 1150 [mm]
Container maximum tipping angle/oil requirement/oil pressure: 53/18/200 [˚/l/bar]
Wheel track: 1990 [mm]
Suspension: tandem with trailing arm
Hitch-ring load: 3000 [kg]
Tyres: 385/65 R22.5 RE
Construction speed: 40 [km/h]
Tractor power requirement: 110/80.8 [KM/kW]
* with the weight of the container with recommended lengh, it might be neccesary to move the container backwards while preparing for tipping

Standard equipment
Tipping frame: rectangular made of closed profiles
Tandem suspension with 2 trailing arms and fixed axle shafts equiped in drum brakes 406x140mm
Drawbar: rigid, to couple with lower hitch of the tractor (transport hitch, piton fix)
Drawbar towing hitch: rotary towing eye Ø50 (hitch, piton fix)
Drawbar support: hydraulic straight leg with cut-off valve (it needs permanent or occasional connection with the tractor by single hydraulic line)
Hydraulic blocking system of the trailing arm (suspension)
Braking system: double line pneumatic or single line pneutmatic or hydraulic
Crank hand brake
Rear bumper with manual setting in 3 positions (depends on length of the container)
12 V lightening system with side clearence lights
Rear lamps with protective grating
Steel mudguards over the wheels
Wheel chocks + racks
Mechanical container lock (for containers made in acc. to DIN 30722) with possibllity to change the position depending on length of the container
Hydraulic reloading system with manual switch winch / tipper
Trailer requires a tractor with three pairs of hydraulic outputs (control of suspension lock, pivoting frame and hook frame)
Trailer hook with automatic container lock and regulated height in 2 positions (adaptation for containers acc. to DIN 30722 and SS 3021)
Chemically hardened two-component painting materials , UV-resistant.
Tipping frame colour: red RAL3000 PRONAR

Additional equipment

Drawbar towing hitch: fixed with towing eye Ø40mm
Drawbar towing hitch: ball-type K80mm
Drawbar towing hitch: fixed with towing eye Ø50mm (hitch, piton fix)
Drawbar support: telescopic supporting leg with two-step gear
Drawbar support: telescopic supporting leg with a pin
Side underrun protection
Plastic mudguards
Hydraulic container lock connected to suspension lock (for the tracotrs with min. 3 hydraulic output pairs), with electrohydraulic safety system
Hydraulic container lock controlled independently (for the tracotrs with min. 4 hydraulic output pairs), with electrohydraulic safety system
Electric steering from tractor’s cabin of 4 functions: container lock, suspension lock, pivoting frame and hook frame)
Separate hydraulic system with oil container, a pump, transmission and PTO shaft with electric steering from tractors cabin of 4 functions: suspension blockage, container lock, pivoting frame and hook frame)
Mechanical container lock for containers acc. to SS 3021
Braking system: combined (double line pneumatic + hydraulic)
Additional pair of hydraulic outlets at the back (to supply hydraulic backwall of the container)
Rear outlets of braking system for second trailer
Rear manual hitch, amortized
Rear automatic hitch RO*400A4600
Tool box
Tyres 385/65R22.5
Tyres 425/65R22.5
Tyres 445/65R22.5
Tyres 500/60R22.5
Tyres 600/50-22.5 – Trailer width over 2550mm
Tyres 600/50R22,5 – Trailer width over 2550mm
Spare wheel (separately) 385/65 R22.5 RE
Spare wheel (separately) 385/65 R22.5
Spare wheel (separately) 425/65 R22.5
Spare wheel (separately) 445/65 R22.5
Spare wheel (separately) 500/60 R22.5
Spare wheel (separately) 500/60 22.5
Spare wheel (separately) 600/50-22.5
Spare wheel (separately) 600/50R22.5
Warning triangle JEST W KARCIE
Additional pair of hydraulic outlets at the back (to supply hydraulic backwall of the container) and additional pair of hydraulic outlets located on the hook
Non standard colours according to RAL CALSSIC codes *

* doesn’t aply fo units on stock
