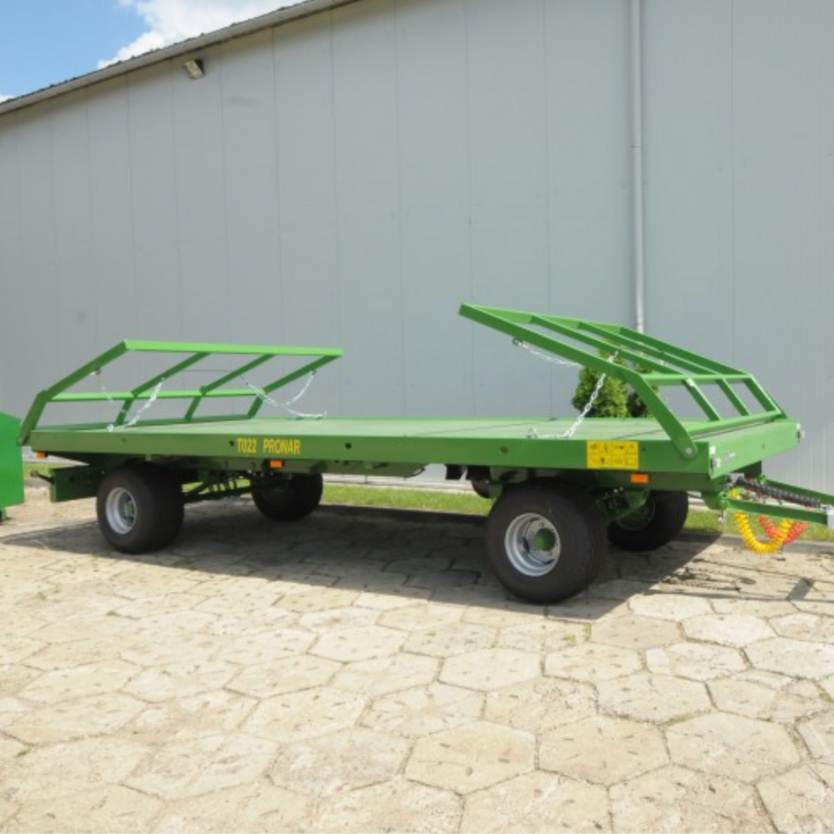

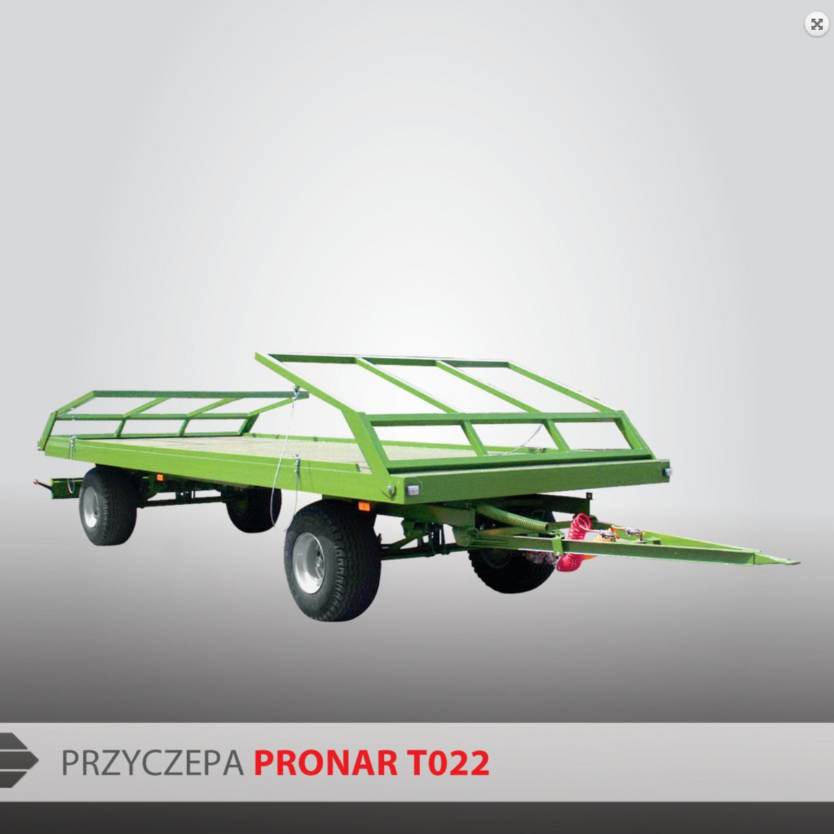

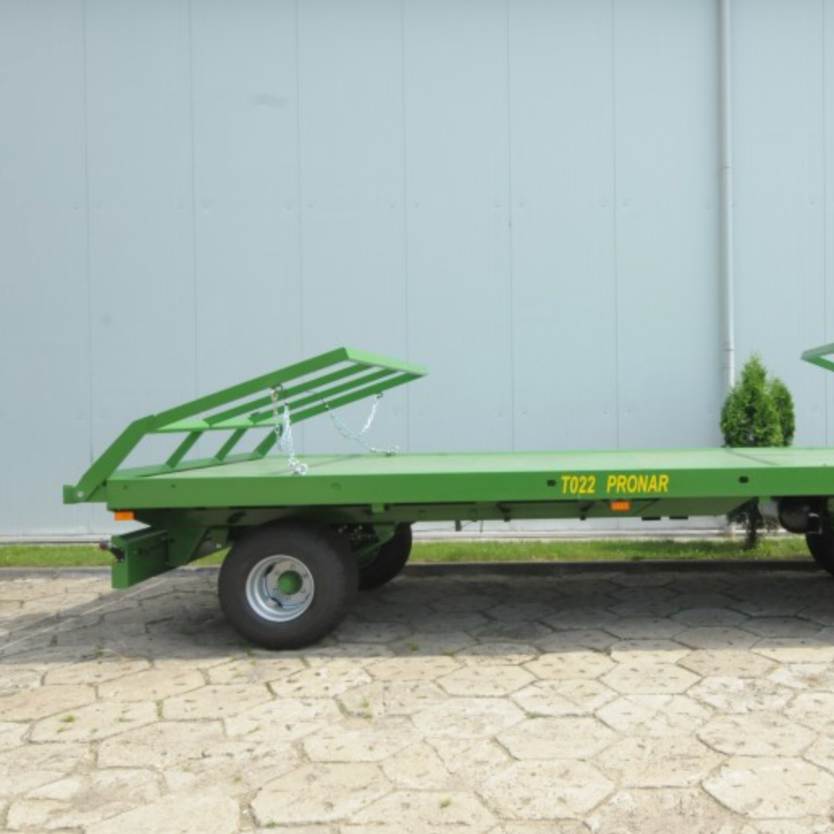

Trailer PRONAR T022

Trailer PRONAR T022 is bale transportation trailer – reliable, failure-free and universal. Perform excellently when transporting cargo volume requiring large, streight surfaces, mainly to transporting straw or hay/silage bales, pallets and euro-pallets.

Low bed construction with flat edges facilitates loading and protect film-wrapped bales against damaging them. This option significantly increases the functionality of the trailer. Extended rear frame adjusting it to the load parameters. Chemically hardened and UV-resistant painting materials provides protection against corrosion. Stable and strong parabolic spring suspension provides longer service life.


Technical data
Technically permissible total weight: 11000 [kg]
Permissible total weight: 10000 [kg]
Load capacity: 7360 [kg]
Empty weight: 2640 [kg]
Loading space: 16,4 (17,7*) [m 2]
Loading platform length: 6495 [mm]
Loading space length: 6740 (7270*) [mm]
Loading platform width: 2435** [mm]
Dimensions: length/width/height: 9135***/2500/2780 [mm]
Loading platform height: 1680 [mm]
Platform thickness: 3 [mm]
Platform height, measured from the ground: 1100 [mm]
Wheel track: 1730 [mm]
Suspension: parabolic springs
Tyres: 400/60-15,5
Maximum speed: 40 [km/h]
Tractor power requirement: 67,6/49,7 [hp/kW]
* With pulled out rear frame exending the platform length
** EURO pallets transportation width
*** Standard platform length
Standard equipment
Flat profiles on the floor edges
Frame: rectangular made of closed profiles
Drawbar: V type with ø40 mm fixed towing eye
Steering: rotating turntable
Side ladders: front and rear
Regulated rear frame
Braking system: single or double line air or hydraulic
Crank hand brake
12V lightning system with rear electric socket
Commercial road lighting system with side lights
Side underrun protections
Rear underrun protection with integrated commercial road lighting system (according to 70/221/EW)
Double-component chemically hardened painting materials
Wheel chocks and racks
Platform colour: green RAL6010 PRONAR

Additional equipment

Additional equipment (optional)
Drawbar: V type fixed with towing eye ø40 mm
Side underrun protections 89/297/EWG
Tool box
Front and rear plastic mudguards with galvanized supports
Overrun brakes version (technically allowed speed 25 km/h, allowed total weight 8000 kg)
Braking system: double air line with automatic (ALB)
Rear connections to a second trailer (air double line)
Rear manual hitch, fixed****
Braking system: combined (double air line + hydraulic)
Braking system: combined (double line air +  hydraulic with electric safety valve and braking force controller)
Spare wheel support with winch mounted under the trailer
Tyres 360/65-16
Spare wheel (separately) 400/60-15.5
Spare wheel (separately) 360/65-16
Warning triangle
Non standard colours according to RAL CALSSIC codes
**** trailer is not designed for towing seocnd trailer according to homologation documentation
