Technical data |
Technically permissible total weight: |
16000 |
[kg] |
Permissible total weight: |
15000 |
[kg] |
Load capacity: |
11170 |
[kg] |
Empty weight: |
3830 |
[kg] |
Loading space: |
24 (26,2*) |
[m 2] |
Loading platform length: |
9695 |
[mm] |
Loading space length: |
9880 (10770*) |
[mm] |
Loading platform width (with edges/without edges): |
2517/2410** |
[mm] |
Dimensions: length/width/height: |
11995***/2550/2830 |
[mm] |
Loading platform height: |
1680 |
[mm] |
Platform thickness: |
4 |
[mm] |
Platform height, measured from the ground: |
1150 |
[mm] |
Wheel track: |
1730 |
[mm] |
Suspension: |
parabolic springs |
Tyres: |
400/60-15.5 |
Maximum speed: |
40 |
[km/h] |
Tractor power requirement: |
83,2/61 |
[hp/kW] |
|
* With pulled out rear frame exending the platform length |
** EURO pallets transportation widht |
*** Standard platform length |
|
Standard equipment |
|
Rounded profiles on the floor edges |
Reinforced platform floor – 4mm |
Frame made of open and closed rectangular profiles |
Frame adjusted to the rear hitch mounting |
Drawbar type: V- type fixed with towing eye ø40 mm |
Steering: rotating turntable |
Rounded edges of side ladders (front and rear) |
Platform extension |
Holes for belt tightening on the platform side |
Holes for belt tightening on the side ladders |
Braking system: single line, double line air or hydraulic |
Crank hand brake |
Double-component chemically hardened painting materials, UV-resistant |

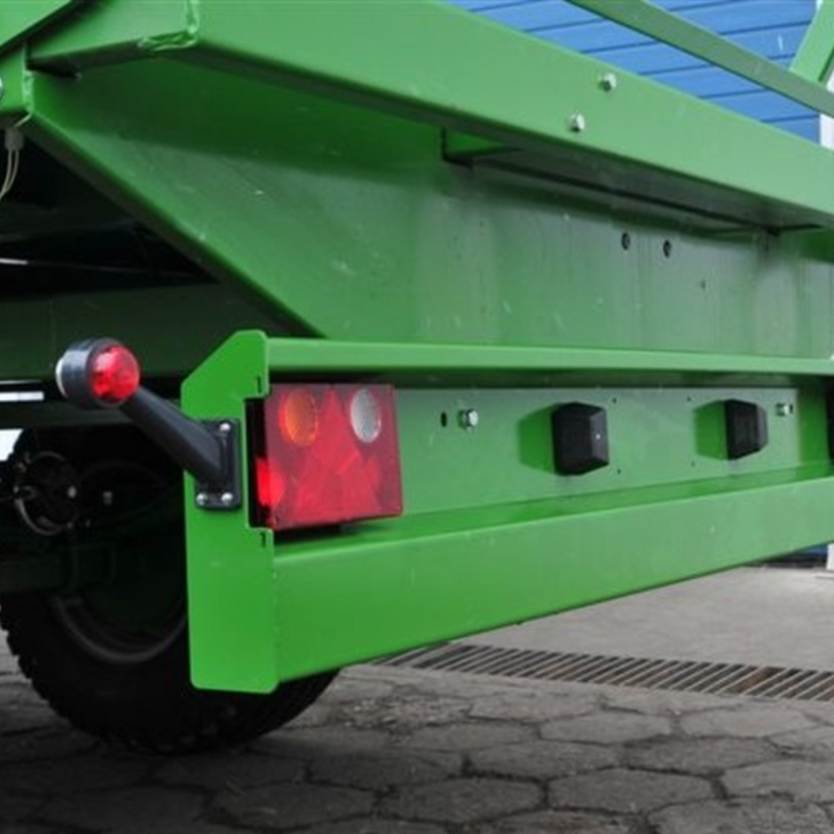

12V lightning system with clearance light and rear electric socket |
Rear underrun protection according to 70/221/EC |
Rear electric socket |
Wheel chocks + racks (2 pcs.) |
Platform color: green RAL6010 PRONAR |
Wheel chocks hidden in galvanized pockets |
