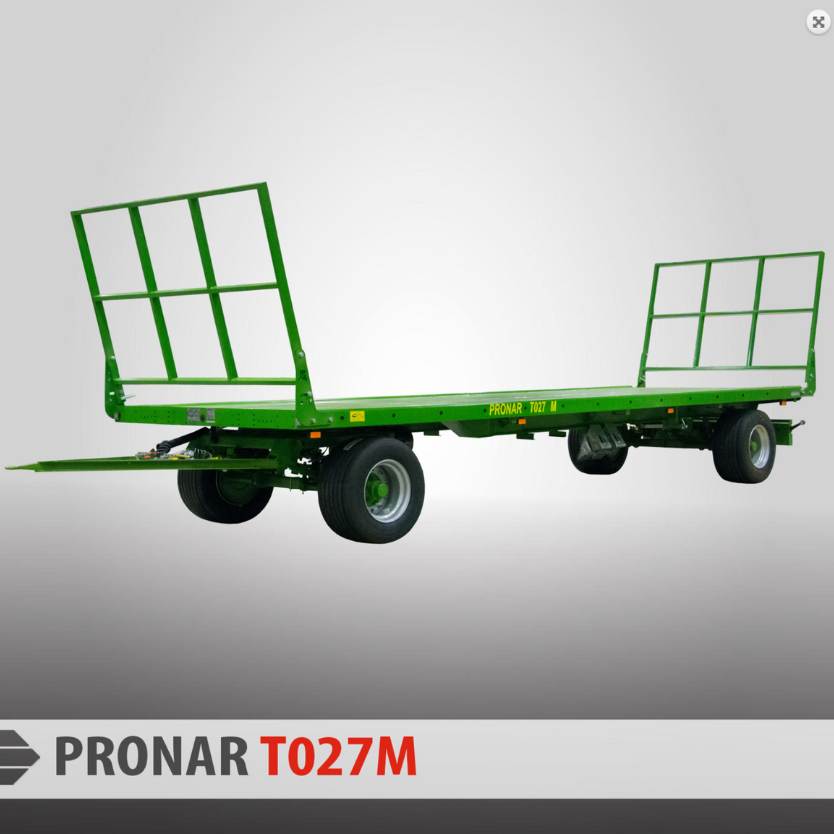

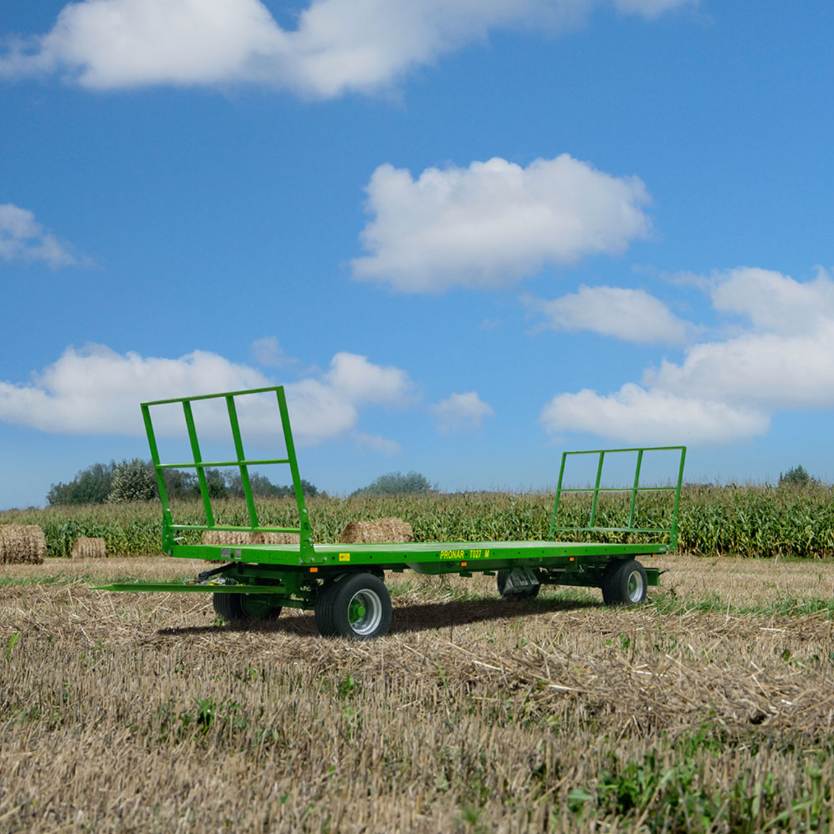

Trailer PRONAR T027M

PRONAR T027M is a two-axle bale trailer that can load up to 32 bales with a diameter of 1200mm.The trailer is designed for transporting straw, silage bales or transporting loads requiring large, flat surfaces, eg pallets or mauser type tanks. The length of the loading platform is 8500 mm, the load capacity is 13.2 tons (with standard equipment). The T027M trailer loading platform is suspended on parabolic springs. The chassis is consists of two axles with 400×120 brakes. The PRONAR T027M trailer is equipped with a turntable of 1100 mm diameter, which allows 360 ° rotation. This ensures very high maneuverability both, on the road and in the field. The drawbar which is supported by the spring facilitates aggregation with the tractor.


Technical data
Permissible total weight: 18000 [kg]
Load capacity: 13200 [kg]
Empty weight: 4800 [kg]
Loading space: 20,4 (23) [m 2]
Loading space length (rear frame folded/extended): 8500/9600 [mm]
Loading platform width ( total/ flat): 2470/2400 [mm]
Dimensions: length/width/height: 10600/2530/2900 [mm]
Loading platform height: 1790 [mm]
Platform thickness: 3 [mm]
Platform height, measured from the ground: 1100 [mm]
Wheel track: 1960 [mm]
Suspension: parabolic springs
Tyres: 445/45R19,5
Maximum speed: 40 [km/h]
Tractor power requirement: 109,2/80,3 [hp/kW]
Standard equipment
Platform with profiles on the floor edges
Frame made of I-beams, open and closed rectangular profiles
Frame adjusted to the rear hitch mounting
Frame adjusted for mounting hydraulic sidewalls
Drawbar type: V- type rigid with towing eye ø40 mm
Steering: rotating turntable
Side ladders with adjustment of angle inclination suitable for transportaion round and square bales
Extendable rear frame with ladder increasing the loading space
Extendable rear frame supported by pin retainer
Holes for belt tightening on the platform side
Axles ith drum brakes 400×120
Braking system: double line air
Crank hand brake
12V lightning system with rear electric socket and clearance lights
Rear underrun protection according to 70/221/EWG with lights and space for number plate
Rear electric socket
Wheel chocks and racks
Double-component chemically hardened painting materials, UV-resistant
Platform color: green RAL6010 PRONAR
Wheel chocks in galvanized pockets

Additional equipment

Additional equipment (optional)
Drawbar: V type fixed with towing eye ø40 mm
Tool box
Side underrun protections 89/297/EWG
Rear hydraulic connections to a second trailer
Braking system: double air line with automatic (ALB)
Braking system: combined (double line air +  hydraulic with electric safety valve and braking force controller and utlets )
Brakin system without safety valve and homologation
LED lights
Front and rear plastic mudguards with galvanized supports 8 pcs.
Tyres 385/65R22,5 REG
Tyres 385/65R22,5
Tyres 500/60R22,5
Tyres 560/45R22,5
Spare wheel (separately) 445/45R19,5
Spare wheel (separately) 385/65R22,5 REG
Spare wheel (separately) 385/65R22,5
spare wheel (separately 500/60R22,5
spare wheel (separately 560/45R22,5
Warning triangle
Non standard colours according to RAL CALSSIC codes
