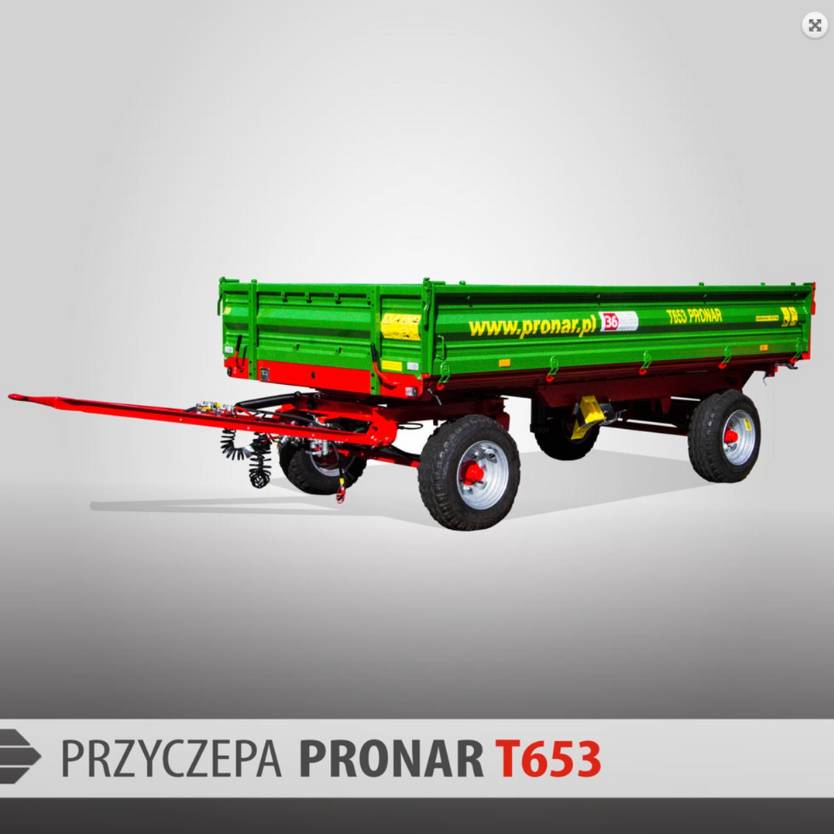

Trailer PRONAR T653

Trailer PRONAR T653 is a double axles farm trailer with 4000kg load capacity and three sides tipping. This type has been produced for  many years and has strong and durable  construction.three side tipping allowes to unload the cargo in a preferred destination


Technical data
Permissible total weight: 5950 [kg]
Load capacity 4000 [kg]
Empty weight: 1950 [kg]
Load volume: 4.1 [m 3]
Loading space: 8.2 [m 2]
Loading case inside lenght: 4010 [mm]
Loading case inside width: conical:   2010/2060 [mm]
Dimensions: length/width/height: 6140/2230/1585 [mm]
Sidewall height: 500 [mm]
Floor/wall thickness: 3/2 [mm]
Platform height, measured from the ground: 1070 [mm]
Wheel track: 1600 [mm]

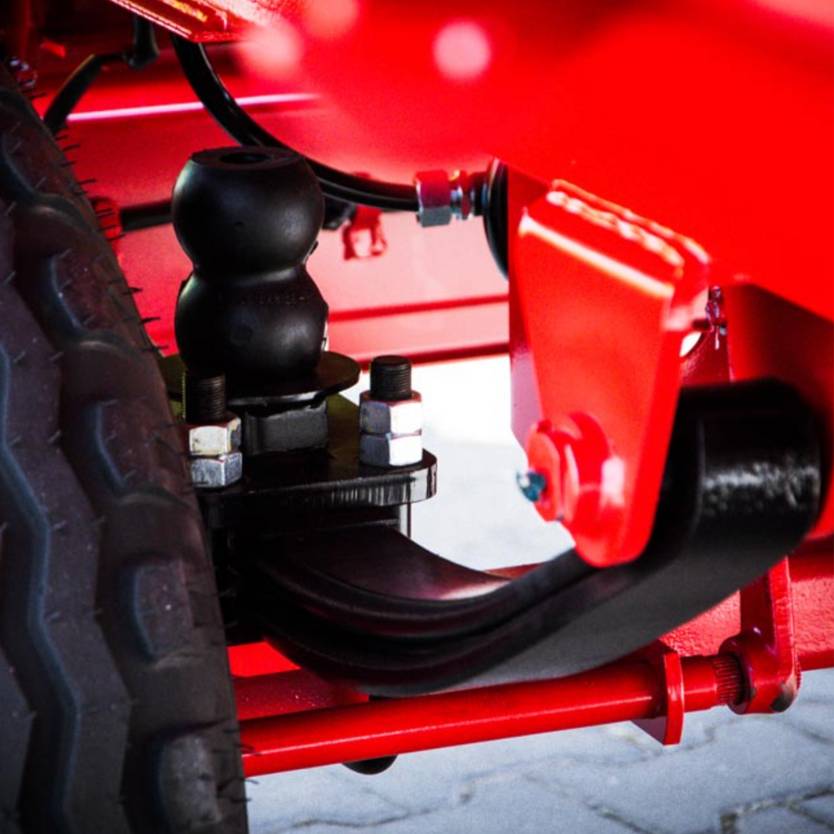

Suspension: Parabolic springs
Tyres: 10.0/75-15.3
Maximum speed: 30 [km/h]
Tipping system : 3-side
Tipping cylinder (piston stroke/oil requirement/working pressure) 1300mm/8L/160bar
Tractor power requirement: 36.4/26.7 [hp/kW]
Tipping angle (backwards/sides): 42/46 [˚]
Standard equipment
Loading case with universal system of sidewalls opening
Conical shape of loading case (50 mm wider at the back)
Central locking system

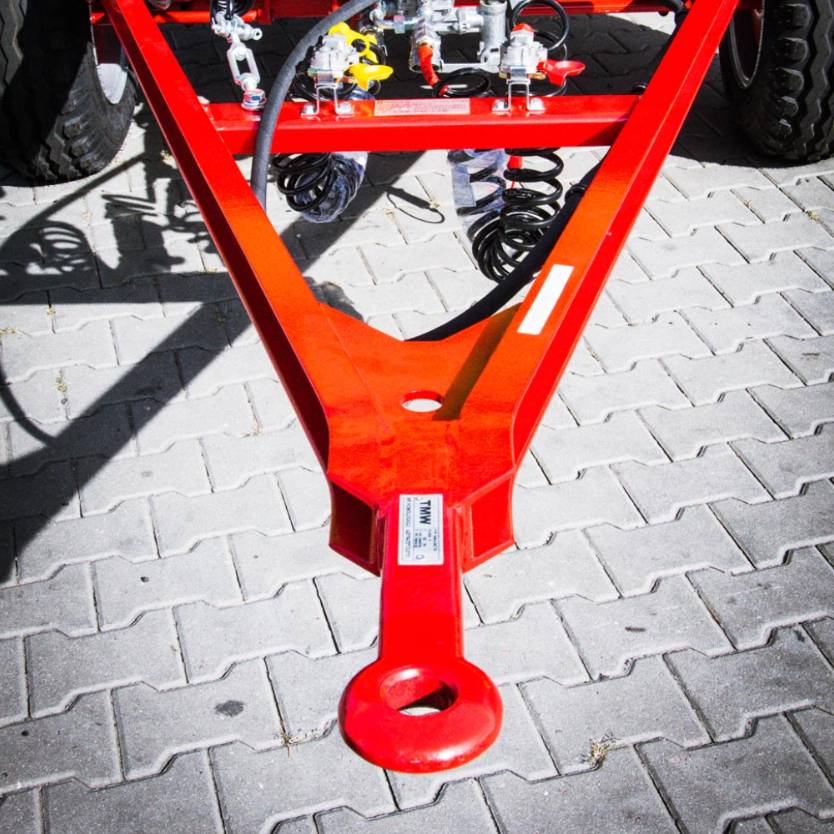

Drawbar: V type with Ø40 fixed towing eye
Rotating turntable
Braking system: single line air or double line air or hydraulic
Parking brake with crank

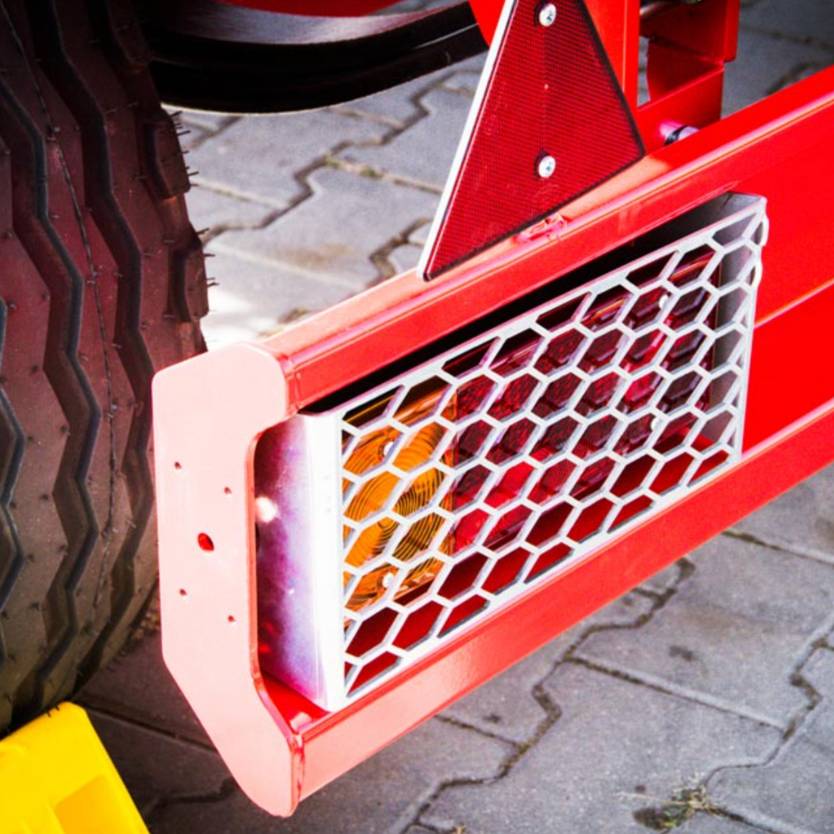

Rear lights with protection cover
12V lighting system with rear electric socket
Coiled connecting cable for the lighting installation
Rear manual hitch, rigid
Rear conections to a second trailer
Tipping system with cut-off valve
Three side tipping cylinder
Side walls made of PRONAR profiles 500mm with rim 70mm with forged hinges and locks
Grain hatch with a lever in a rear wall
Double-component chemically hardened painting materials
Wheel chocks and racks
Tipping frame painting colour: red RAL3000 PRONAR
Side walls painting colour: green RAL6010 PRONAR
Mechanical support of the loading case
Sidewalls fastening string
Rear mudguards
Ladder and side steps facilitating access to the loading case

Additional equipment

Additional equipment (optional)
Drawbar V type: fixed with Ø50 towing eye
Drawbar Y type: fixed with Ø40 towing eye
Parking brake with lever
Laced canvas cover with frame
Rear grain chute
Spare wheel support
Tyres 11.5/80-15.3
Sidewall extensions 1000 mm made of wire netting  Ø8
Sidewall extensions 1000 mm made of wire netting   Ø30
Spare wheel (separately) 10.0/75-15.3
Spare wheel (separately) 11.5/80-15.3
Warning triangle
Set of wall supports to maintain the walls in a partially open position for bale transportation*
Shock absorber for falling potatoes – two sets of rubber belts, 1,8m of length each, mounted on the sidewall extensions (side extensions necessaary)
Rear grain chute across width of the trailer
Non standard colours according to RAL CALSSIC codes
* for agricultural roads only
