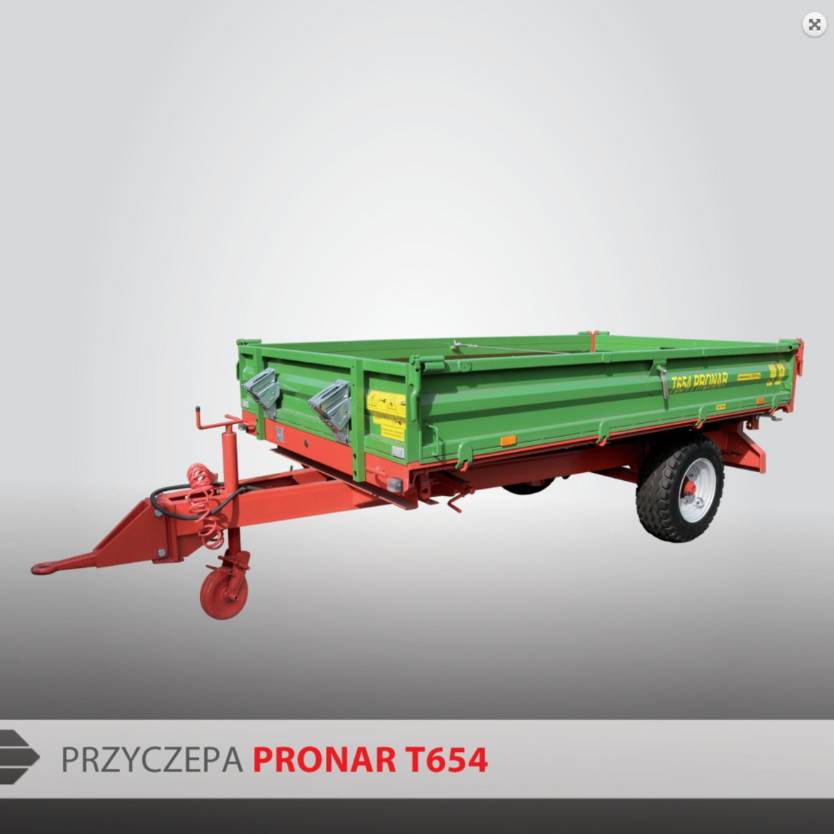

Trailer PRONAR T654

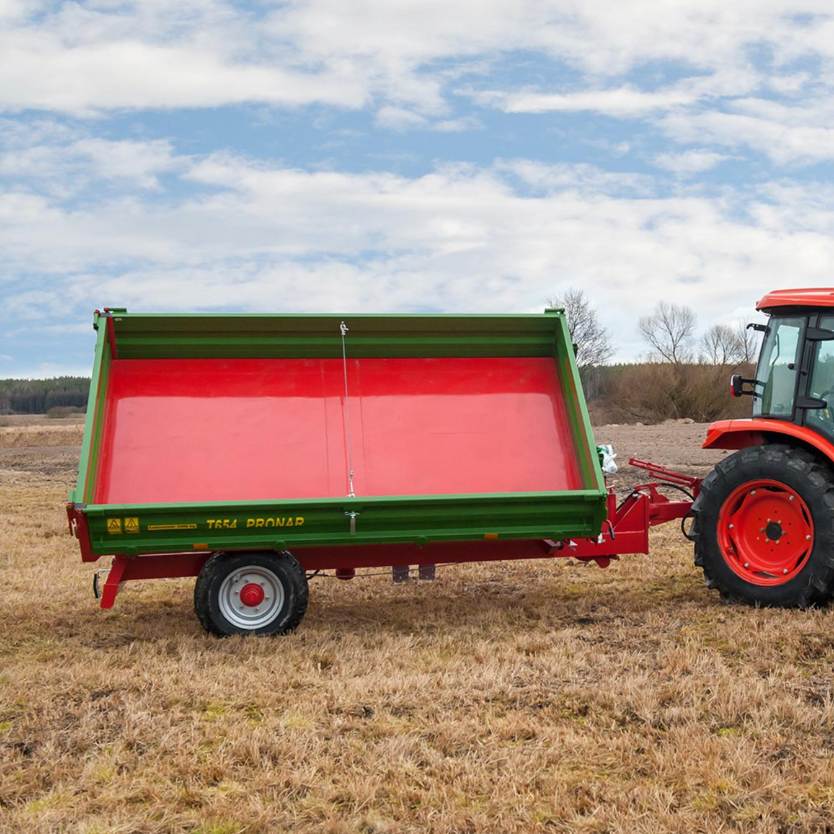

PRONAR Trailer T654 is one of the smallest trailers in the range. Single axle construction is very modern and convenient to useThe Three-way tipping system of the loading case provides high level functionality. Beside this, high quality, reliable and durable axles distinguish them from the competition. The small dimensions and load capacity of two and half tons makes them perfect for small sized farms. In order to its small dimensions it can be connected to any type of tractor.


Technical data
Technically permissible total weight: 4300* [kg]
Permissible total weight: 3780 [kg]
Load capacity: 2500 [kg]
Empty weight: 1280 [kg]
Load volume: 3,1 [m 3]
Loading space: 6.2 [m 2]
Loading case inside length: 3310 [mm]
Loading case inside width: 1860 [mm]
Dimensions: length/width/height: 4950/2045/1430 [mm]
Sidewall height: 500 [mm]
Floor/wall thickness: 3/2 [mm]
Platform height, measured from the ground: 890 [mm]
Wheel track: 1500 [mm]
Suspension: fixed
Hitch-ring load: 600 [kg]
Tyres: 10.0/75-15.3
Maximum speed: 40 [km/h]

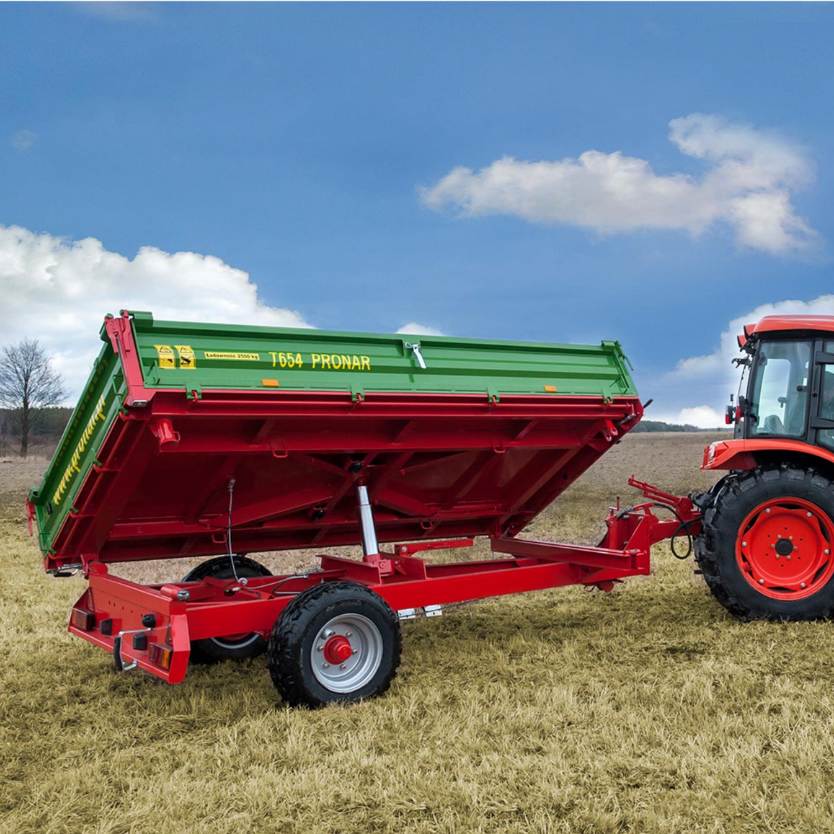

Tipping system: 3-side
Number of tipping cylinder sections: 4
Tipping cylinder (piston stroke/oil requirement/working pressure) 1300mm/8L/160bar
Tractor power requirement: 26/19 [hp/kW]

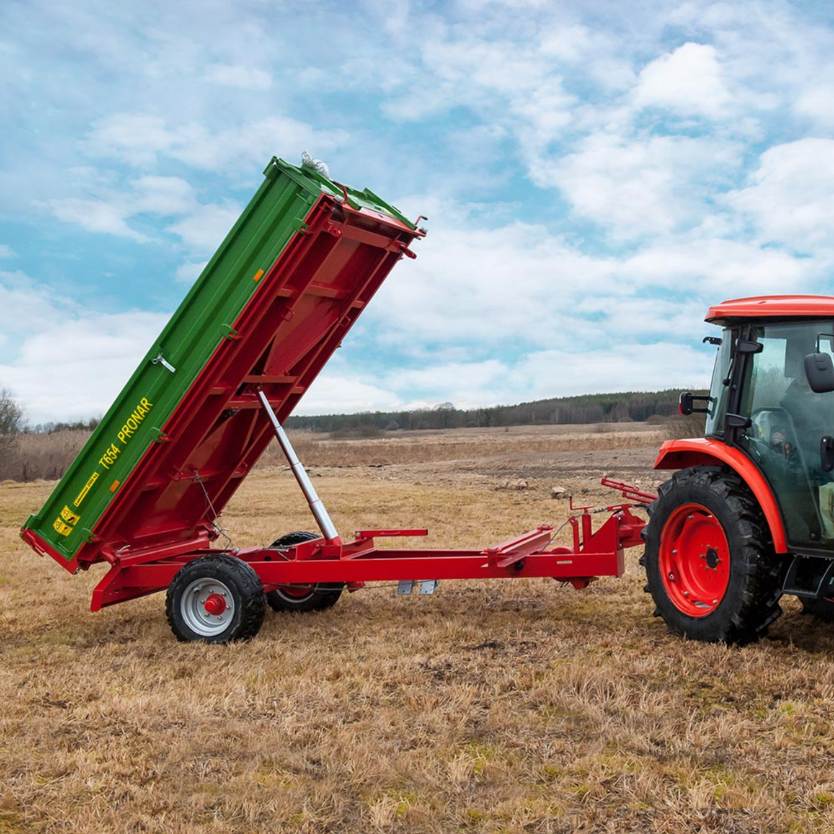

Tipping angle (backwards/sides): 50/46 [˚]
* Technically permissible total weight with reduced speed to 30 km/h
Standard equipment
Loading case  with universal system of sidewalls opening
Central locking system
Tipping frame: triangular made of open profiles
Drawbar: lower transportation hitch with Ø50 fixed towing eye
Drawbar support: supporting wheel
Braking system: single line air or double line air or hydraulic
Parking brake with crank
12V lighting system with rear electric socket
Tipping system with cut-off valve
Three side tipping system
Sidewalls made of PRONAR profiles 500 mm
Sidewalls fastening string
Double-component chemically hardened painting materials
Wheel chocks and racks
Tipping frame painting colour: red RAL3000 PRONAR
Side walls painting colour: green RAL6010 PRONAR
Mechanical support of the loading case

Additional equipment

Additional equipment (optional)
Drawbar: rigid to couple with upper hitch of the tractor
Drawbar towing hitch: fixed towing eye Ø40
Drawbar towing hitch: rotary towing eye Ø50
Sidewall extensions made of profile PF 500mm with ladder
Overrun braking system ( Permissible total weight-3800kg, construction speed 40km/h)
Rear grain chute
Rear grain hatch with a lever in a rear wall
Parking brake with lever
Rear manual hitch, fixed
Rear sockets for hydraulic installation and brakes for second trailer
Spare wheel (separately) 10.0/75-15.3
Warning triangle
Laced canvas cover with frame
Non standard colours according to RAL CALSSIC codes
