Technical data |
Allowable total weight (technically): |
21000 |
[kg] |
Permissible total weight: |
20000 |
[kg] |
Load capacity: |
14000 |
[kg] |
Empty weight: |
6000 |
[kg] |
Load volume with Extensions height 580mm /without extensions: |
22.7 / 15 |
[m 3] |
Loading space: |
12,4 |
[m 2] |
Loading case inside length: |
5500 |
[mm] |
Loading case inside width: |
trapezoid: 2200/2250 |
[mm] |
Dimensions: length/width/height: |
7255/2550/3160 |
[mm] |
Sidewall height: |
1200+580 |
[mm] |
Floor/wall thickness: |
5/4 |
[mm] |
Platform height, measured from the ground: |
1435 |
[mm] |
Wheel track: |
1960 |
[mm] |
Suspension: |
parabolic springs |
Hitch-ring load: |
2000 |
[kg] |
Tyres: |
385/65 R22.5 RE |
Maximum speed: |
40 |
[km/h] |
Tipping system: |
3 side |
Tipping cylinder (piston stroke/oil requirement/working pressure): |
2400mm/29L/200bar |
Tractor power requirement: |
104/76.4 |
[hp/kW] |

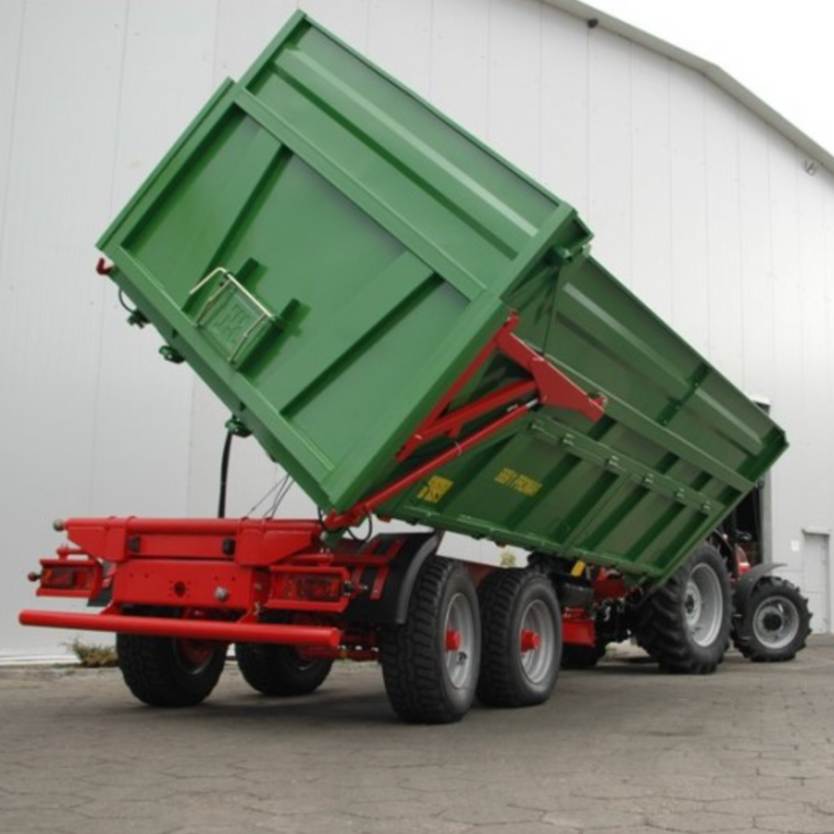

Tipping angle (backwards/sides): |
50/45 |
[˚] |
|
Standard equipment |
|
Monocoque loading case with vertical ribs reinforcing the sidewalls |
Monocoque loading case with two flaps (right side) with central locking mechanism allowing for tipping backward and to the right |

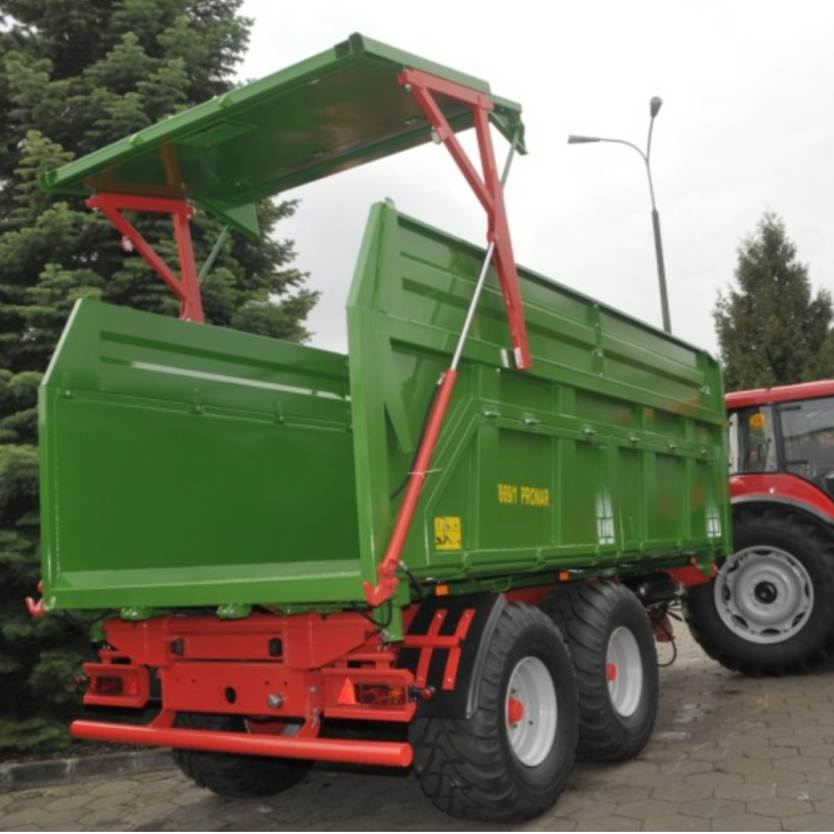

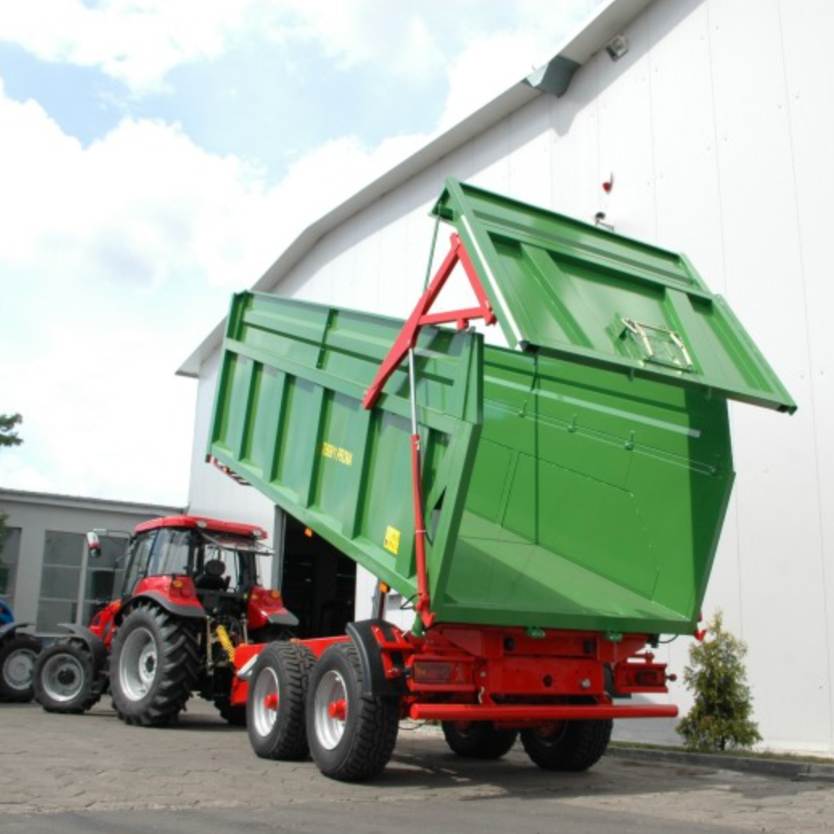

Hydraulically winched tailgate with automatic pressing system |
2 windows on the front wall of the loading case made of plexiglass |
Sidewall extensions height 580 mm made of steel 2mm thickness with stabilizing bar |
Chassis frame made of hight strength steel with rectangular closed profiles |
Tandem suspenssion with 4 parabolic springs with 1325 mm wheelbase with fixed axles equipped in drum brakes 406×120 |
Axles for 60 km/h (Allowable total weight 20 000 kg) |
Drawbar type: universal rigid to couple with lower or upper hitch of the tractor with rubber shock absorbers |
Drawbar hitch: rotary with Ø50 towing eye |
Drawbar support: hydraulic scissor-type with movable leg and hydraulic security lock |
Braking system: double line air or single line air or hydraulic |
Crank hand brake |
Rear foldable underrun protection |
Rear mudguards made of plastic |
Wheel chocks + racks (2 pcs) |
12 V lighting system with rear electric socket, bulbs lamps, with airtight connection, with side clearence lights |
Rear lamps with protective grating |
Hydraulic cables holder with a support for tractor connectors |
Tipping system: hydrauilc with automatic cut-off valve and thick safety steel cables |
Mechanical support of the loading case |
Folded ladder and steps facilitating the access to the loading case |
Grain hatch with lever in a rear wall |
Double-component chemically hardened painting materials, UV-resistant |
Tipping frame painting colour: red RAL3000 PRONAR |
Loading case painting colour: green RAL 6010 PRONAR |
