Technical data |
Permissible total weight: |
16350 |
[kg] |
Load capacity: |
12000 |
[kg] |
Empty weight: |
4350 |
[kg] |
Load volume: |
7.7 |
[m 3] |
Loading space: |
10.9 |
[m 2] |
Loading case inside length (upper/bottom side): |
4625/4500 |
[mm] |
Loading case inside width: |
2410 |
[mm] |
Dimensions: length/width/height: |
6230/2546/2080 |
[mm] |
Sidewall height: |
700 |
[mm] |
Floor/wall thickness: |
10/8 |
[mm] |
Platform height, measured from the ground: |
1240 |
[mm] |
Wheel track: |
1860 |
[mm] |
Suspension: |
parabolic springs |
Hitch-ring load: |
2000 |
[kg] |
Tyres: |
385/65 R22.5 RE |
Maximum speed: |
40 |
[km/h] |

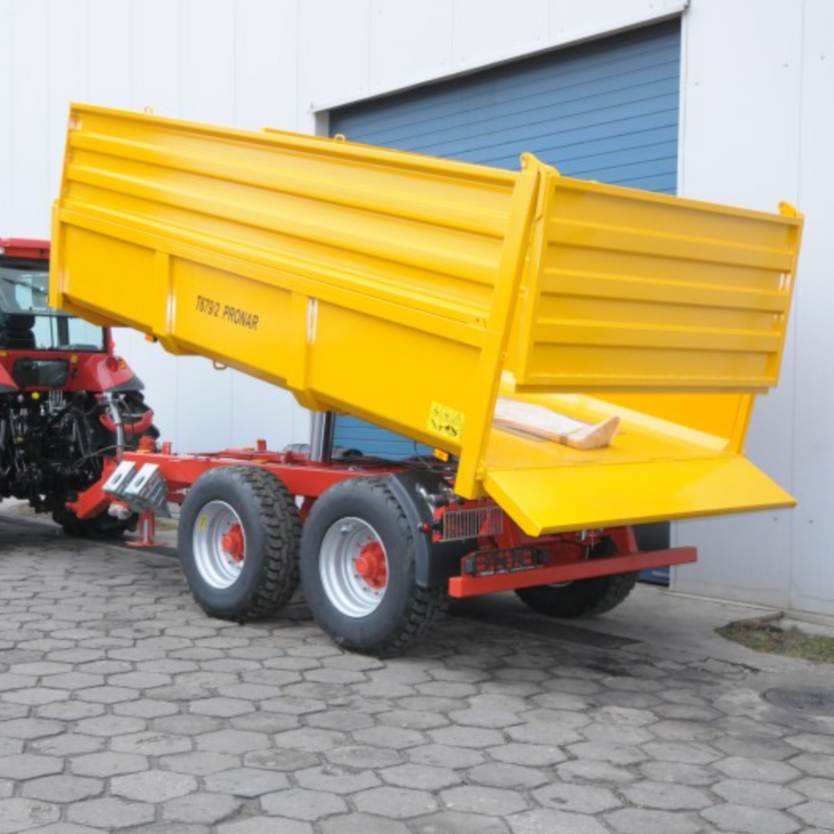

Tipping system: |
1-side |

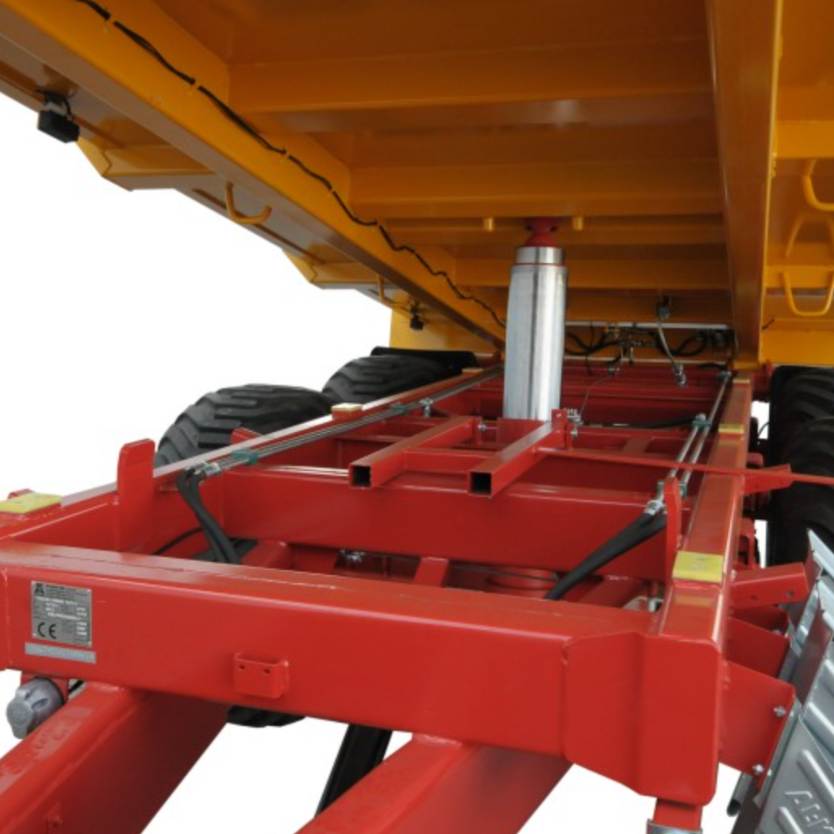

Tipping cylinder (piston stroke/oil requirement/working pressure): |
2150mm/28L/200bar |
Tractor power requirement: |
83.2/61 |
[hp/kW] |
Tipping angle (backwards): |
55 |
[˚] |
|
Standard equipment |
Very strong construction (monocoque type) of loading case with vertical ribs reinforcing the sidewalls |
Hydraulically driven rear flap with height 450 mm, opened downwords |
Chassis frame made of hight strength steel with rectangular closed profiles |
Tandem suspenssion with 4 parabolic springs with 1325 mm wheelbase with fixed axles equipped in drum brakes 400×80 |
Axles for 60 km/h (permissible total weight 16 000 kg) |

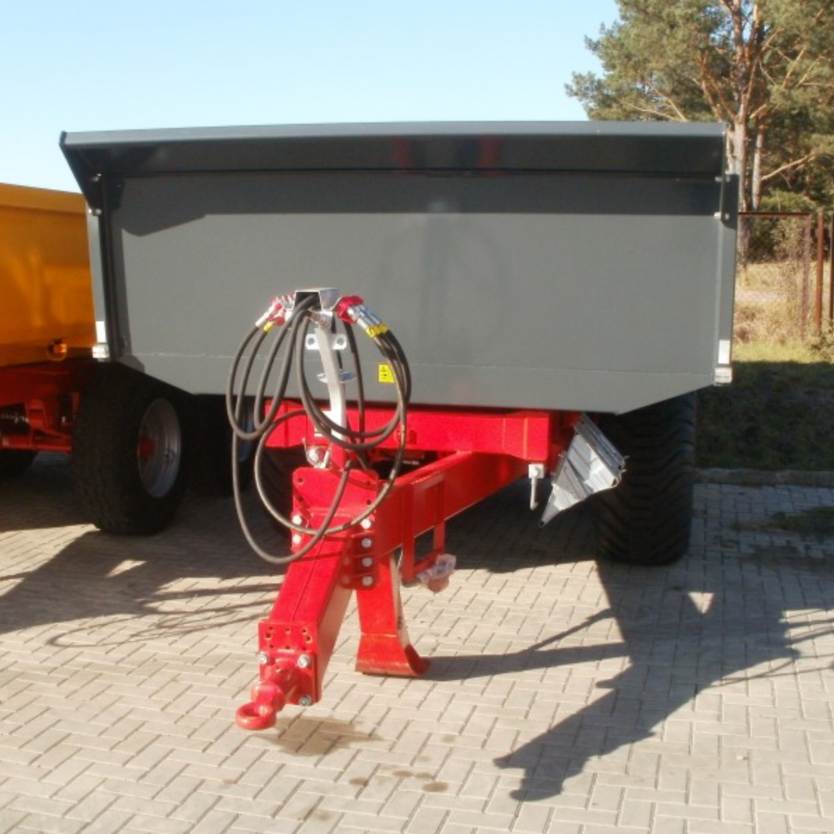

Drawbar type: universal rigid to couple with lower or upper hitch of the tractor |
Drawbar hitch: rotary with Ø50 towing eye |
Drawbar support: hydraulic straight type leg with cut-off valve |
Braking system: double line air |
Crank hand brake |
Rear mudguards made of plastic |
Wheel chocks + racks (2pcs) |
12 V lighting system with rear electric socket, bulbs lamps, with airtight connection, with side clearence lights |
Rear lamps with protective grating |
Tipping system: hydrauilc with automatic cut-off valve and thick safety steel cables |
Mechanical support of the loading case |
Hydraulic cables holder with a support for tractor connectors |
Double-component chemically hardened painting materials, UV-resistant |
Tipping frame colour: red RAL3000 PRONAR |
Side walls painting colour: yellow RAL1007 |
