Technical data |
Permissible total weight: |
16200 |
[kg] |
Load capacity: |
12000 |
[kg] |
Empty weight: |
4200 |
[kg] |
Load volume (without extensions): |
13.2 |
[m 3] |
Loading space: |
10.4 |
[m 2] |
Loading case inside length: |
4800 |
[mm] |
Loading case inside width: |
trapezoid: 2140/2200 |
[mm] |
Dimensions: length/width/height: |
6797/2550/2460 |
[mm] |
Sidewall height: |
1200 |
[mm] |
Floor/wall thickness: |
4/4 |
[mm] |
Platform height, measured from the ground: |
1260 |
[mm] |
Wheel track: |
1960 |
[mm] |
Suspension: |
parabolic springs |
Hitch-ring load: |
1950 |
[kg] |
Tyres: |
385/65 R22.5 RE |
Maximum speed: |
40 |
[km/h] |

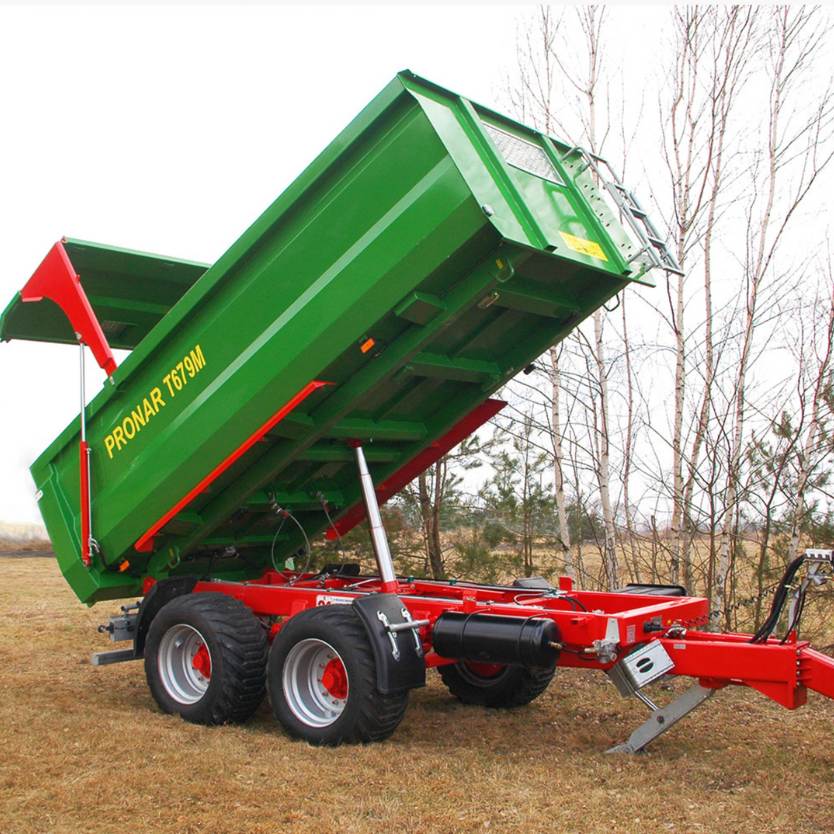

Tipping system: |
1-side |
Tipping cylinder (piston stroke/oil requirement/working pressure) |
1700mm/13L/200bar |
Tractor power requirement: |
83.2/61 |
[hp/kW] |
Tipping angle (backwards): |
50 |
[˚] |
|
|
|
Standard equipment |
|
Monocoque loading case with profiled walles and reinforced upper sidewalls edge |

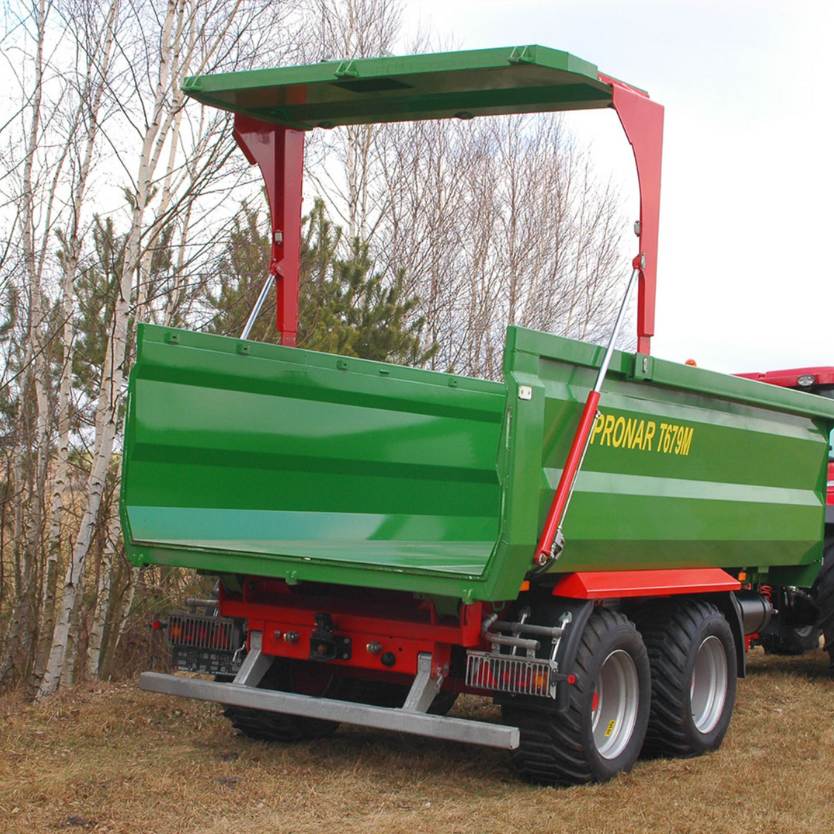

Hydraulically winched tailgate with automatic pressing system |
Window on the front wall of the loading case, made of wire mesh window with plexiglass cover |
Chute grain in the rear wall with a lock |
Chassis frame made of hight strength steel with rectangular closed profiles |
Tandem suspenssion with 4 parabolic springs with 1325 mm wheelbase with fixed axles equipped in drum brakes 400×80 |
Axles for 60 km/h (permissible total weight 16 000 kg) |
Drawbar type: universal rigid to couple with lower or upper hitch of the tractor |
Drawbar hitch: rotary with Ø50 towing eye |
Drawbar support: hydraulic scissor-type with movable leg and hydraulic security lock |
Braking system: double line air or single line air or hydraulic |
Crank hand brake |
Rear foldable underrun protection |
Front and rear mudguards made of plastic and steel mudgards over the wheels |
Wheel chocks + racks (2 pcs) |
12V LED lighting system with rear electric socket and side clearence lights |
Rear lamps with protective grating |
Tipping system: hydrauilc with automatic cut-off valve and thick safety steel cables |
Folded ladder and steps facilitating the access to the loading case |
Double-component chemically hardened painting materials, UV-resistant |
Tipping frame painting colour: red RAL3000 PRONAR |
Loading case painting colour: green RAL 6010 PRONAR |
