Technical data* |
Allowable total weight (technically): |
33000 |
[kg] |
Permissible total weight: |
30000 |
[kg] |
Load capacity: |
21000 |
[kg] |
Empty weight: |
9000 |
[kg] |
Load volume without extensions: |
22 |
[m 3] |
Load volume with extensions 580mm: |
32 (option) |
[m 3] |
Loading space: |
17,8 |
[m 2] |
Loading case inside lenght: |
8000 |
[mm] |
Loading case inside width: |
trapezoid: 2200/2250 |
[mm] |
Dimensions: lenght/width/height: |
9900/2550/3330 |
[mm] |
Sidewall height: |
1200 |
[mm] |
Floor/wall thickness: |
5/4 |
[mm] |
Platform height, measured from the ground: |
1495 |
[mm] |
Wheel track: |
2100 |
[mm] |
Suspension: |
parabolic springs |
Hitch-ring load: |
3000 |
[kg] |
Tyres: |
385/65 R22.5 RE |
Maximum speed: |
40 |
[km/h] |

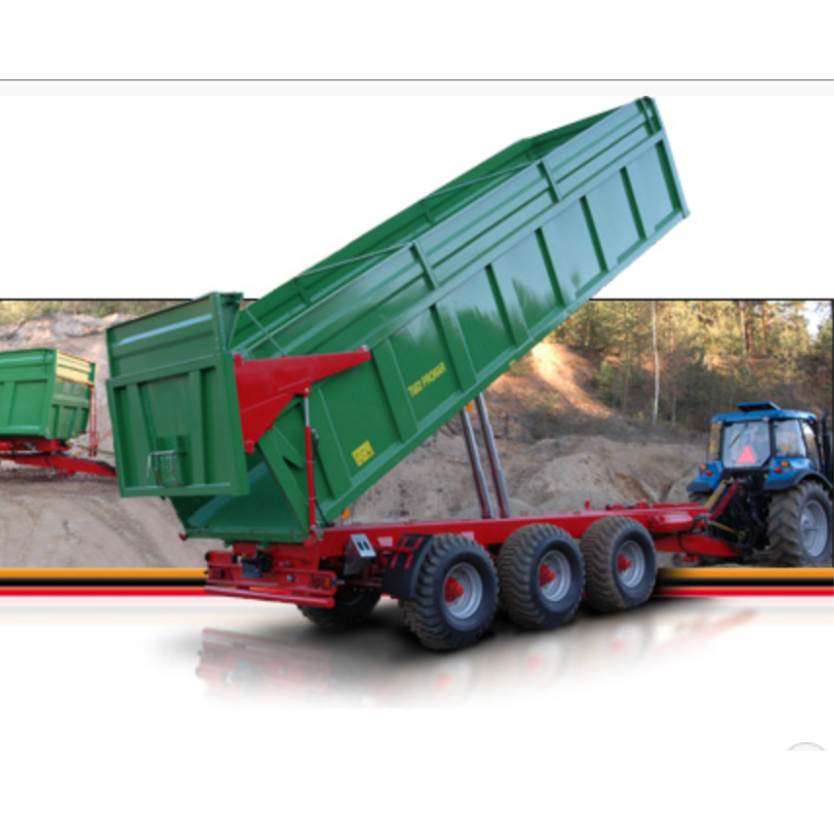

Tipping system: |
2 telescopic cylinders, 1-side |
Hydraulic supply: |
seperate tank, pump |
Tipping cylinder (piston stroke/oil requirement/working pressure) |
2990mm/72L/200bar |
Tractor power requirement: |
182/133.8 |
[hp/kW] |

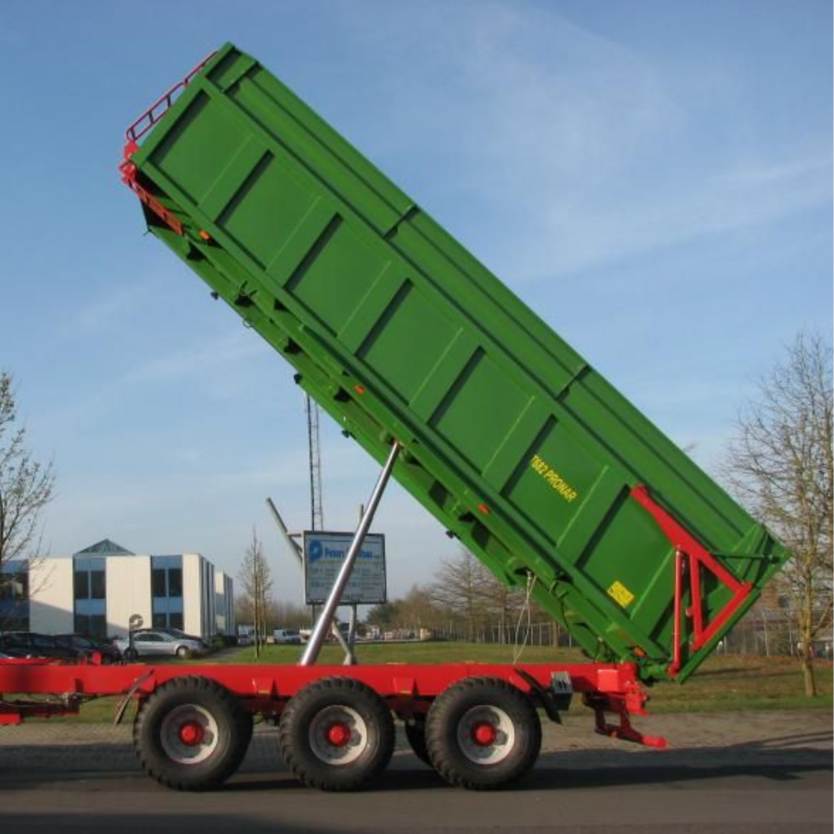

Tipping angle (backwards): |
50 |
[˚] |
|
|
Standard equipment |
|
Monocoque loading case with profiled walles with vertical ribs reinforcing the sidewalls |
Hydraulically winched tailgate with automatic pressing system, steered by a switch from the tractor’s cabin |
Tipping frame made of hight strength steel with rectangular closed profiles |
Drawbar type: universal fixed amortized by steel leaf springs to couple with lower or upper hitch of the tractor |
Drawbar hitch: rotary with Ø50 towing eye |
Drawbar support: telescopic with 2-section gear |
Tridem suspenssion with 6 parabolic springs with 1525 mm wheelbase, with central fixed axle, front and rear axle pasively steered with hydraulic turning blockade, with fixed axles equipped in drum brakes 406×140 |
Axles for 60 km/h |
Braking system: double line air or single line air or hydraulic |
Crank hand brake |
Rear underrun protection homologated according to directive WE type, foldable |
Front and rear mudguards made of plastic |
Wheel chocks + racks (2 pcs) |
12 V lighting system with rear electric socket, bulbs lamps, with airtight connection, with side clearence lights |
Rear lamps with protective grating |
Tipping system: hydraulic with own oil tank, pump and electric distributor with automatic cut-off valve and thick safety steel cables, steered from tractor’s cabin by a switch |

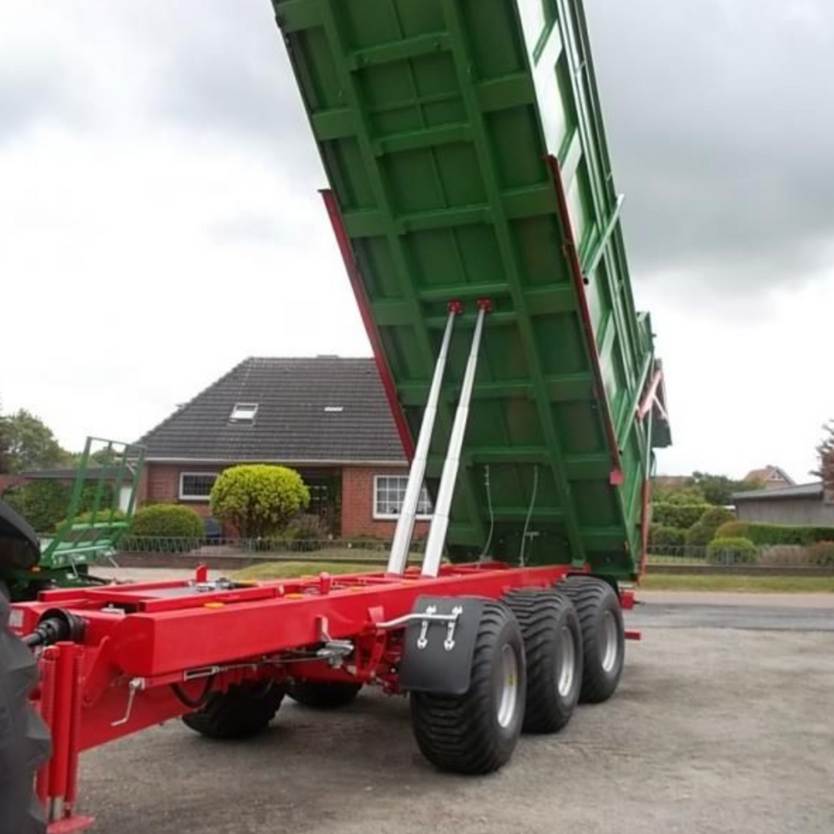

Two tipping cylinders |
Telescopic PTO shaft |
Mechanical support of the loading case |
Folded ladder and steps facilitating the access to the loading case |
Windows on the front wall of the loading case made of plexiglass |
Grain hatch with lever in a rear wall |
Double-component chemically hardened painting materials, UV-resistant |
Tipping frame painting colour: red RAL3000 PRONAR |
Loading case painting colour: green RAL 6010 PRONAR |
