| Technical data* |
| Allowable total weight (technically): |
24000 |
[kg] |
| Load capacity: |
1700 |
[kg] |
| Empty weight: |
6300 |
[kg] |
| Load volume with extensions without extensions: |
26,6 |
[m 3] |
| Loading space: |
13,7 |
[m 2] |
| Loading case inside length: |
6700 |
[mm] |
| Loading case inside width: |
2240/2300 |
[mm] |
| Loading case inside height: |
1750 |
[mm] |
| Dimensions: lenght/width/height: |
8520/2550/3040 |
[mm] |
| Sidewall height (inside): |
1750 + 600 (option) |
[mm] |
| Floor/wall thickness: |
4/4 |
[mm] |
| Platform height, measured from the ground: |
1290 |
[mm] |
| Wheel track: |
1960 |
[mm] |
| Suspension: |
parabolic springs |
| Hitch-ring load: |
4000 |
[kg] |
| Tyres: |
385/65R22.5 |
| Maximum speed: |
40 |
[km/h] |
| Tipping system: |
1-side |
| Tipping cylinder (piston stroke/oil requirement/working pressure): |
2990mm/40L/200bar |
| Tractor power requirement: |
136.7/100,5 |
[hp/kW] |
| Tipping angle (backwards): |
55 |
[˚] |
|
|
|
| * Technical data for trailer without extensions 600 mm |
|
|
|
| Standard equipment |
|
| Monocoque loading case with profiled sidewalls and reinforced upper edges of the sidewalls |
| Hydraulic tailgate with automatic pressing system |
| Grain hatch with lever in a rear wall |
| Window on the front wall of the loading case |
| Chassis frame made of rectangular closed profiles made of hight strength steel |
| Tandem suspenssion with 4 parabolic springs, 1500 mm wheelbase with fixed axles equipped in drum brakes 406×120 |

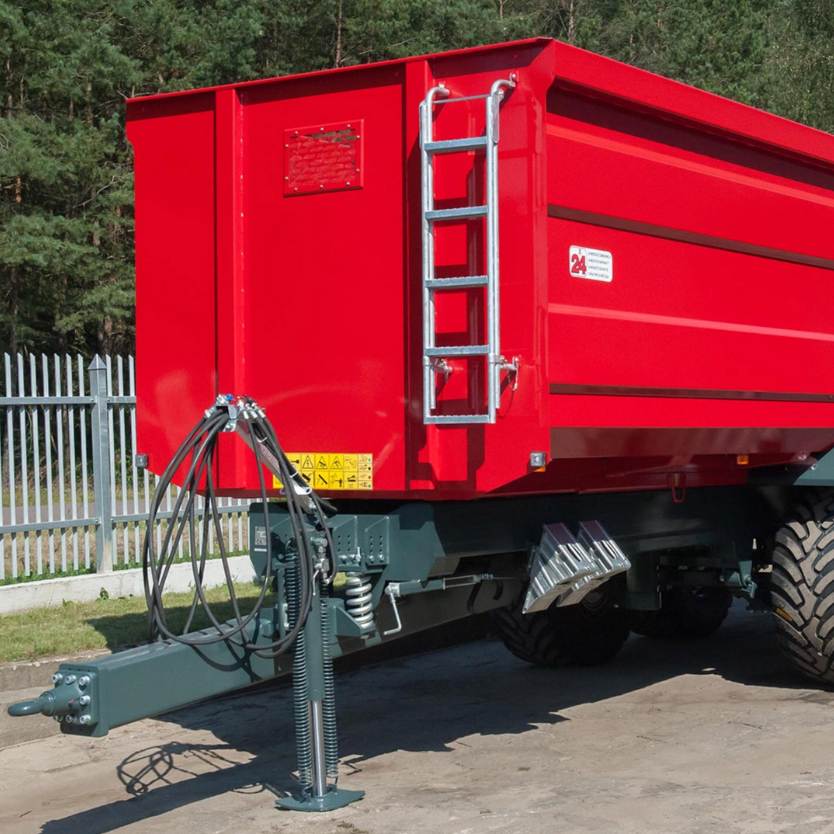

| Universal sprung drawbar with height adjustment to couple with lower or upper hitch of the tractor |
| Drawbar hitch: rotary with Ø50 towing eye |
| Drawbar support: telescopic with 2-section gear |
| Braking system: double line air or single line air or hydraulic |
| Crank hand brake |
| Rear underrun protection, foldable |
| Metal shields over wheels |
| Wheel chocks + racks (2 pcs) |
| 12 V lighting system (bulbs) with rear electric sockets |
| Rear lamps with protective grating |
| Tipping system: hydrauilc with automatic cut-off valve and thick safety steel cables |
| Service support of the loading case |
| Coloured hydraulic wires |
| Foldable ladder and steps facilitating the access to the loading case |
| Double-component chemically hardened painting materials, UV-resistant |
| Tipping frame painting colour: red RAL3000 PRONAR |
| Loading case painting colour: green RAL 6010 PRONAR |
